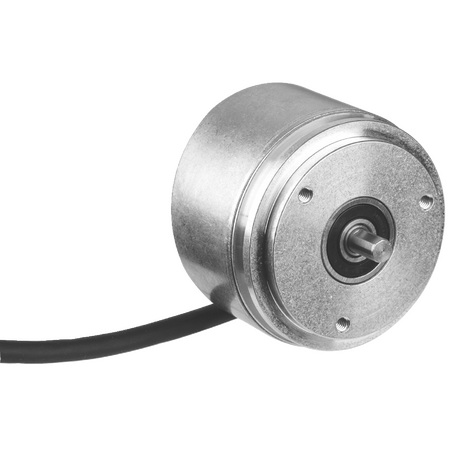

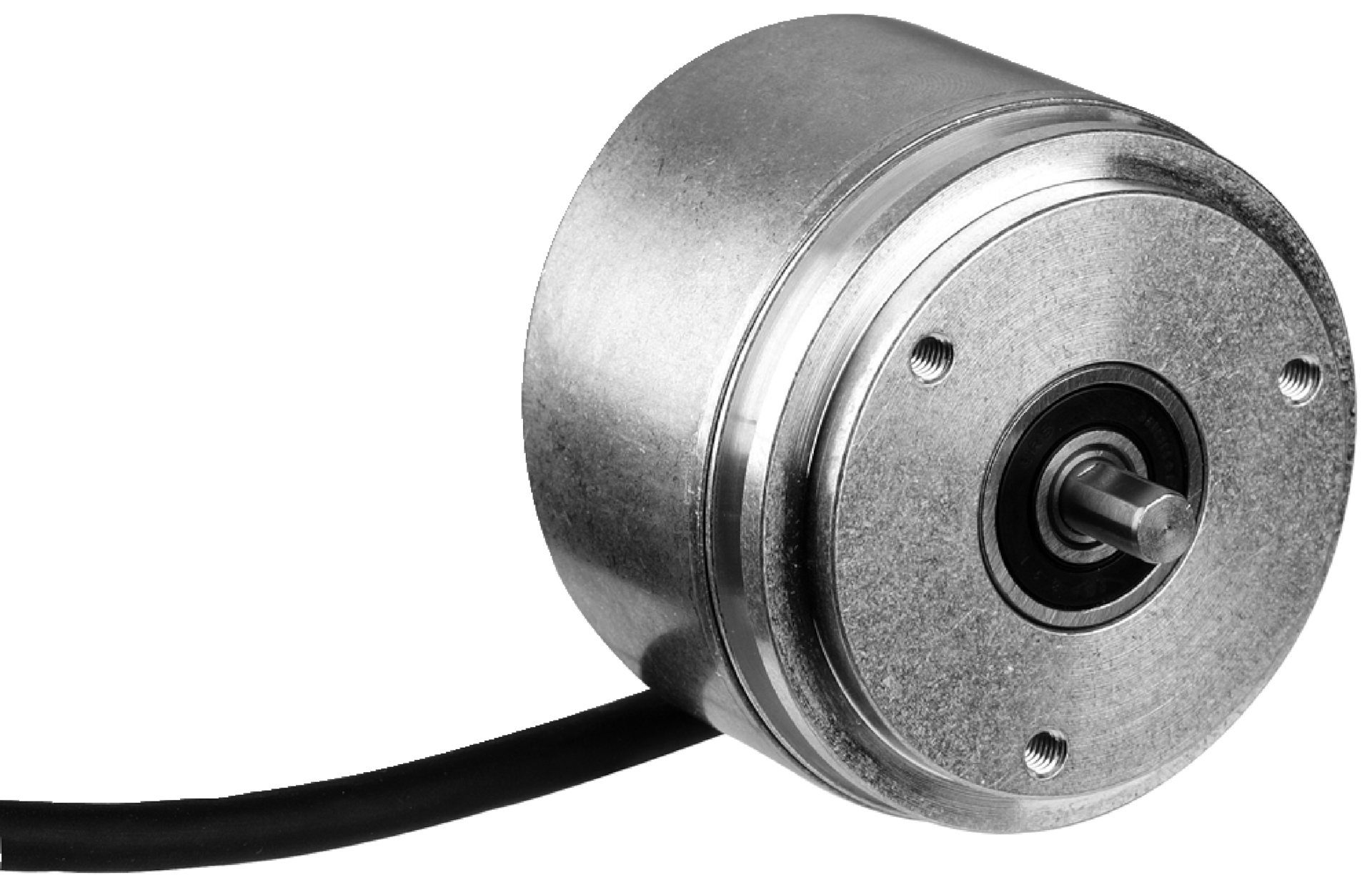

AFM60A-S1AK065536 | Absolute encoders
The SICK AFM60A-S1AK065536 absolute encoder offers high precision with 16-bit resolution, robust construction, and reliable performance for industrial automation and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AFM60A-S1AK065536 | Absolute encoders
Brand: SICK
SKU: 1068773
Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, High resolution encoder, Industrial position sensor
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Max resolution: 65,536 steps/rev (16 bit) x 4,096 revolutions (12 bit)
- Error limits: 0.03°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Operating torque: < 0.3 Ncm
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature: -40 °C to +100 °C
- Shock resistance: 60 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 65,536 steps per revolution and 4,096 revolutions
- Robust mechanical design with solid stainless steel shaft and aluminum housing
- IP65 shaft side and IP67 housing side protection for harsh environments
- Low start-up and operating torque for efficient operation
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- Fast initialization time of 50 ms and position forming time under 1 µs
- Communication via SSI interface with Gray code output
- Adjustable code sequence parameter (CW/CCW)
- Long bearing lifetime of 3.0 x 10^9 revolutions
- High resistance to shocks (60 g) and vibration (20 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Precision measurement and positioning
- Safety-related motion control applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
- Compliance with RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60A-S1AK065536 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
