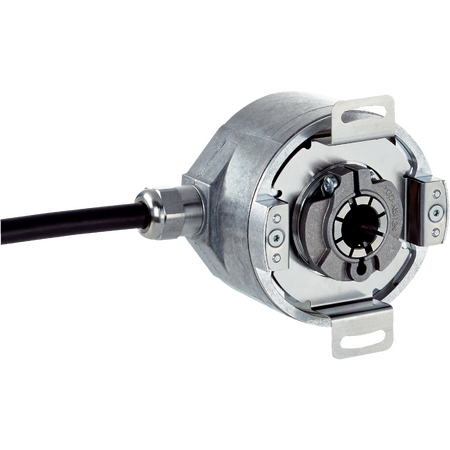

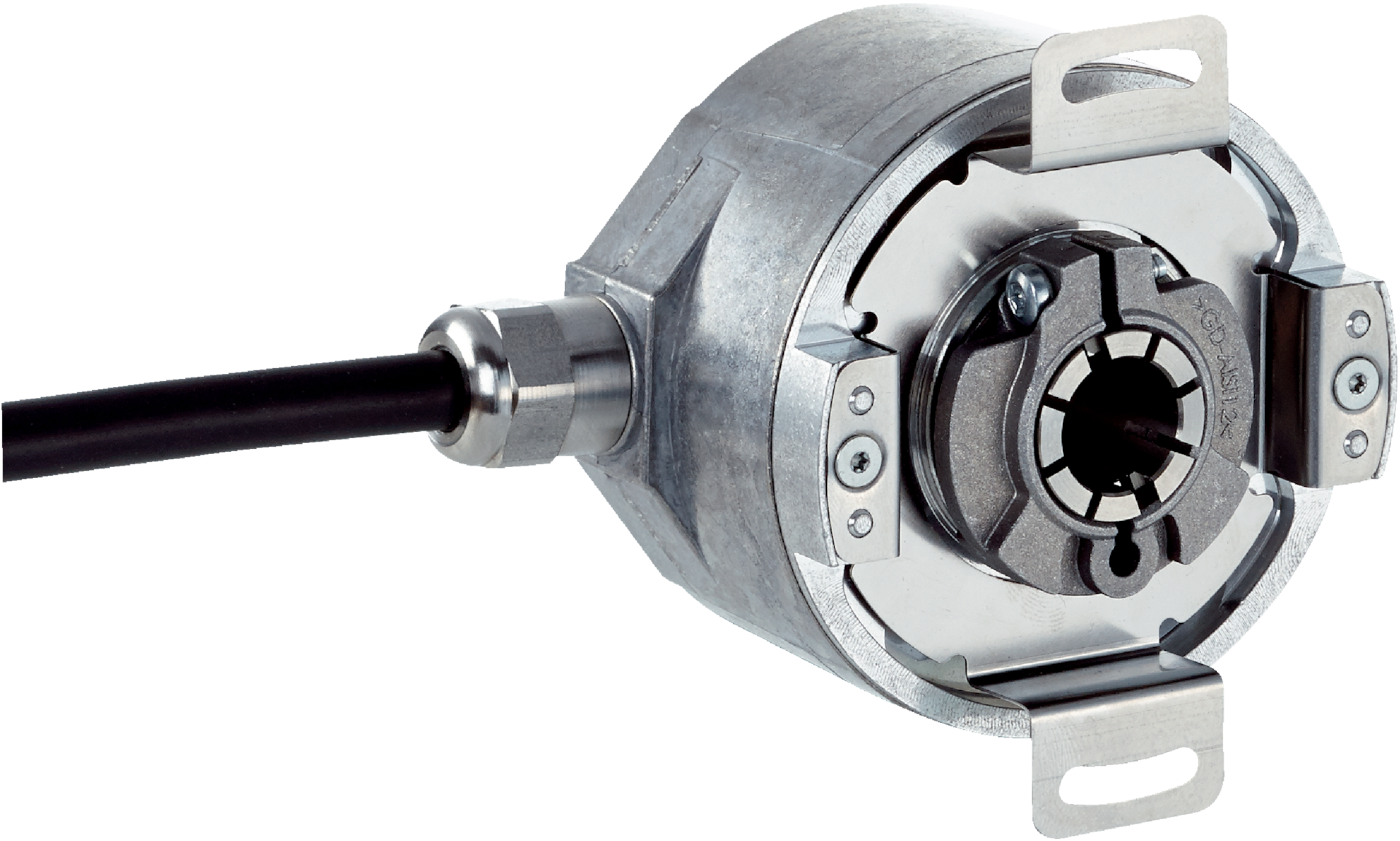

AFM60B-BDKK008192 | Absolute encoders
The SICK AFM60B-BDKK008192 absolute encoder offers high precision with 13-bit resolution, robust mechanical design, and reliable SSI communication interface, ideal for industrial automation and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AFM60B-BDKK008192 | Absolute encoders
Brand: SICK
SKU: 1070721
Alternatively Known As: Absolute rotary encoder, SSI encoder, high resolution encoder, blind hollow shaft encoder
Technical Specifications
- Resolution: 8,192 steps per revolution (13 bit) and 4,096 revolutions (12 bit)
- Error limit: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray code
- Clock frequency: ≤ 2 MHz
- Output frequency: ≤ 200 kHz
- Load resistance: ≥ 120 Ω
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Blind hollow shaft with 10 mm diameter
- Materials: Stainless steel shaft, aluminum flange and housing
- Operating torque: < 0.6 Ncm at 20 °C
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Protection rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -40 °C to +100 °C
- Shock resistance: 70 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 50mm x 60mm x 50mm
- Weight: 0.2 kg
Key Features
- High resolution with 8,192 steps per revolution and 4,096 revolutions
- Robust blind hollow shaft mechanical design with stainless steel shaft and aluminum housing
- Fast initialization time of 50 ms and position forming time under 1 µs
- Communication via SSI interface with Sin/Cos signals
- High repeatability with standard deviation of 0.002°
- Wide operating temperature range from -40 °C to +100 °C
- Protection rating IP65 on shaft side and IP67 on housing side
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Certified with multiple international conformity declarations including EU, UK, ACMA, and cULus
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mechanical and electrical integration and to maintain safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long bearing life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60B-BDKK008192 absolute encoder is available for immediate purchase, ideal for industrial automation, robotics, and safety-related applications.
