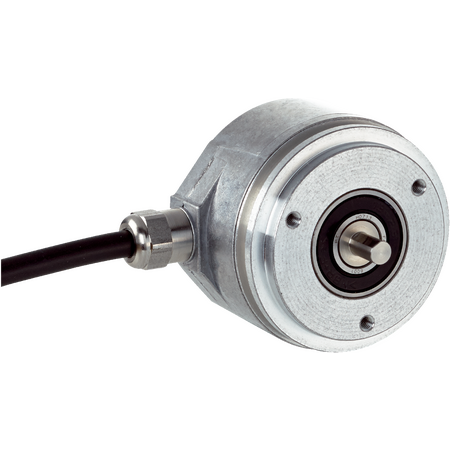

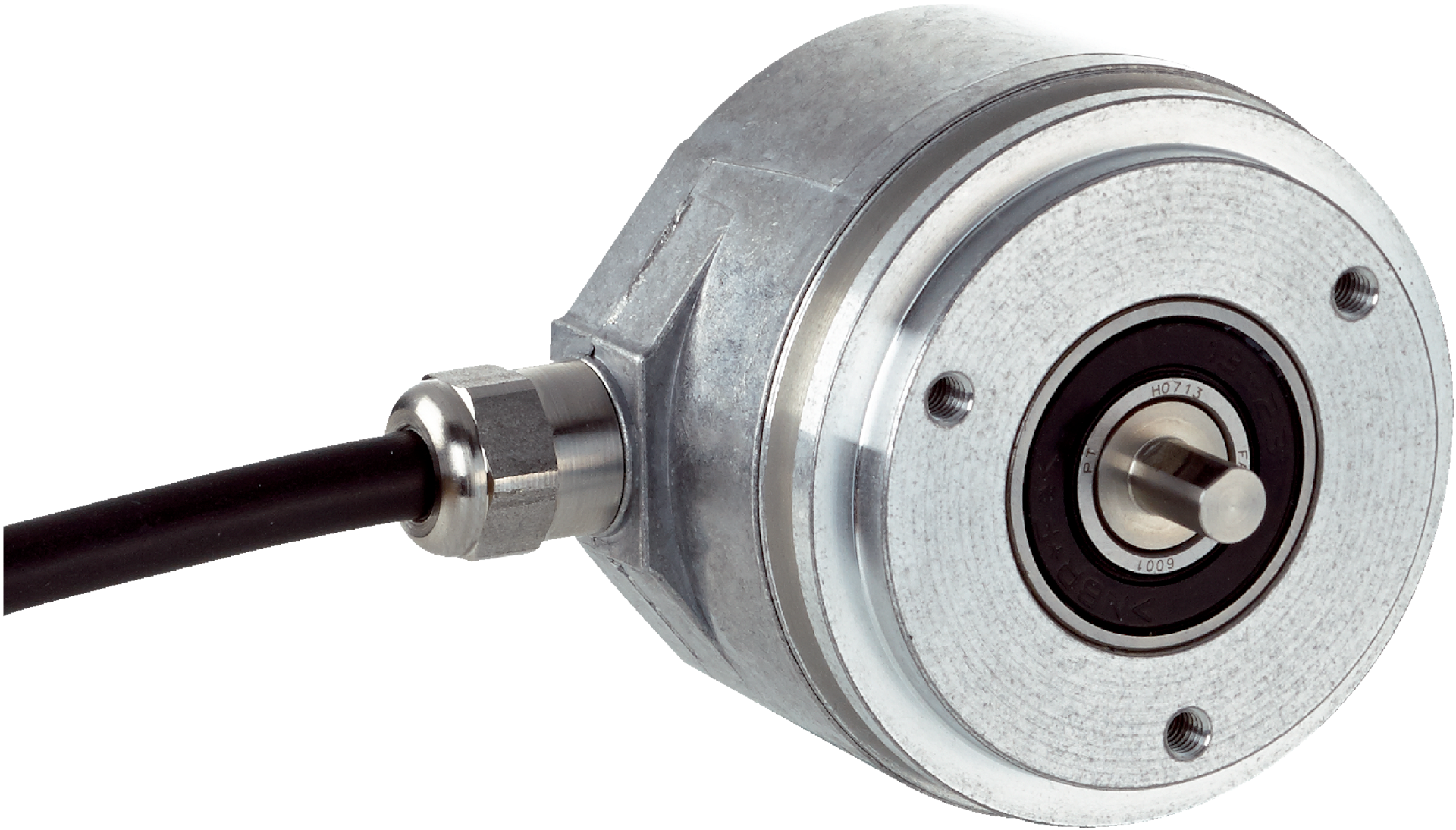

AFM60B-S1KL008192 | Absolute encoders

BRAND: SICK
SKU: 1066300
$2,001.40 List price: $2,515.50
+ −
30 Days Return Delivery Options
The SICK AFM60B-S1KL008192 absolute encoder offers high precision with 13-bit resolution per revolution and robust construction, ideal for industrial automation and safety applications.

Product Name/Title: AFM60B-S1KL008192 | Absolute encoders

Brand: SICK

SKU: 1066300

Alternatively Known As: Rotary Encoder, Absolute Rotary Encoder, SSI Encoder, High Resolution Encoder, Industrial Position Encoder

Technical Specifications
  • MTTFD: 250 years (EN ISO 13849-1)
  • Resolution: 8,192 steps per revolution (13 bit), 4,096 revolutions (12 bit)
  • Error limit: 0.05°
  • Repeatability standard deviation: 0.002°
  • Communication interface: SSI + Sin/Cos
  • Initialization time: 50 ms
  • Position forming time: < 1 µs
  • Code type: Gray code
  • Clock frequency: ≤ 2 MHz
  • Supply voltage: 4.5 to 32 V
  • Power consumption: ≤ 0.7 W (without load)
  • Mechanical design: Solid shaft, servo flange
  • Shaft diameter: 6 mm, length: 10 mm, with flat
  • Materials: Stainless steel shaft, aluminum flange and die-cast aluminum housing
  • Start-up torque: < 0.5 Ncm
  • Operating torque: < 0.3 Ncm
  • Permissible shaft loading: 80 N radial, 40 N axial
  • Operating speed: ≤ 9,000 min⁻¹
  • Bearing lifetime: 3.0 x 10^9 revolutions
  • Enclosure rating: IP65 shaft side, IP67 housing side
  • Operating temperature: -40 °C to +100 °C
  • Resistance to shocks: 70 g, 6 ms
  • Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 60mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 8,192 steps per revolution and 4,096 revolutions (13 bit x 12 bit)
  • Robust mechanical design with solid shaft and servo flange
  • Stainless steel shaft with flat for secure mounting
  • High operating speed up to 9,000 min⁻¹
  • Low start-up torque (< 0.5 Ncm) and operating torque (< 0.3 Ncm)
  • IP65 rated on shaft side and IP67 on housing side for dust and water protection
  • Reverse polarity protection included
  • Communication via SSI interface with Sin/Cos output
  • Fast initialization time of 50 ms and position forming time under 1 µs
  • Long bearing lifetime of 3.0 x 10^9 revolutions
  • Certified with multiple international conformity declarations including EU, UK, ACMA, and cULus
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with encoder integration and electrical safety standards to ensure proper connection and calibration.
Applications
  • Industrial automation for precise position measurement
  • Robotics requiring high-resolution rotary position feedback
  • Servo motor feedback systems
  • Machine tool positioning
  • Safety-related applications requiring reliable encoder data
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing electronic waste
  • Low power consumption (≤ 0.7 W) supports energy-efficient operation
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK AFM60B-S1KL008192 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
