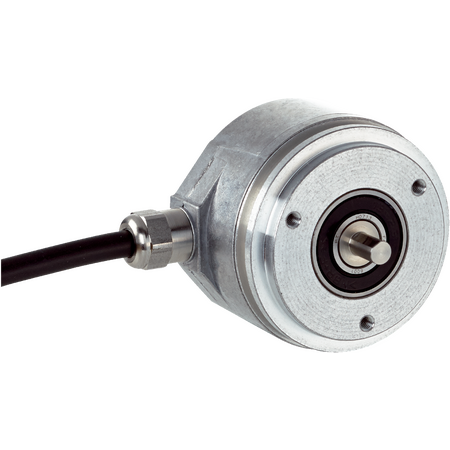

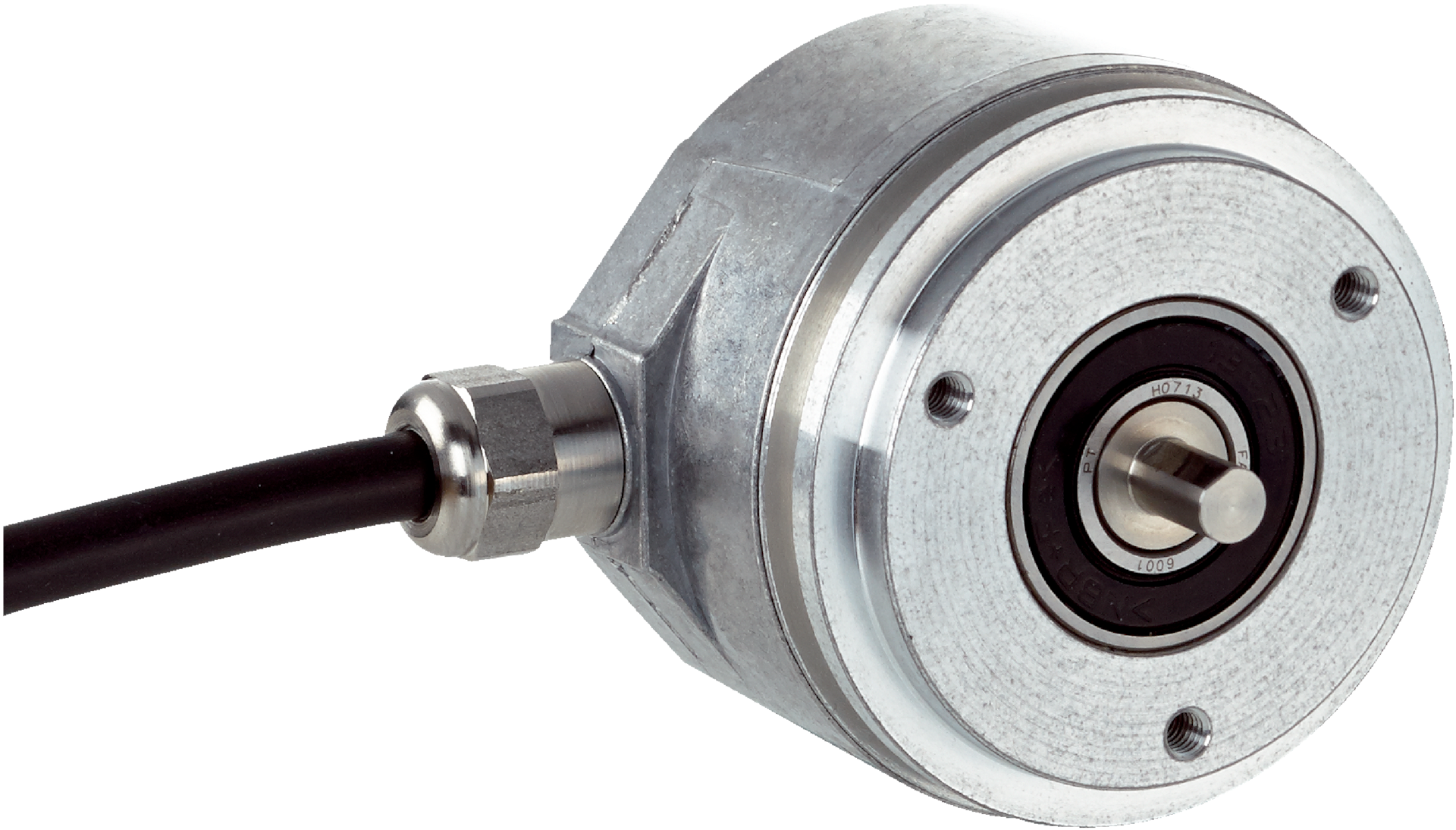

AFM60B-S1TK032768 | Absolute encoders

BRAND: SICK
SKU: 1151357
$2,004.30 List price: $2,519.20
+ −
30 Days Return Delivery Options
The SICK AFM60B-S1TK032768 absolute encoder offers high precision with 15-bit resolution per revolution and 12-bit revolutions, robust mechanical design, and reliable performance in industrial environments.

Product Name/Title: AFM60B-S1TK032768 | Absolute encoders

Brand: SICK

SKU: 1151357

Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, High resolution encoder, Industrial encoder

Technical Specifications
  • MTTFD: 250 years (EN ISO 13849-1)
  • Max resolution: 32,768 steps/rev (15 bit) x 4,096 revolutions (12 bit)
  • Error limits: 0.05°
  • Repeatability standard deviation: 0.002°
  • Communication interface: SSI + incremental TTL
  • Initialization time: 50 ms
  • Position forming time: < 1 µs
  • Code type: Gray code
  • Clock frequency: ≤ 2 MHz
  • Output frequency: ≤ 600 kHz
  • Load current: ≤ 30 mA
  • Connection type: 12-wire cable, 1.5 m radial
  • Supply voltage: 4.5 to 32 V
  • Power consumption: ≤ 0.7 W
  • Reverse polarity protection: Yes
  • Mechanical design: Solid shaft, servo flange
  • Shaft diameter: 6 mm with flat
  • Shaft length: 10 mm
  • Shaft material: Stainless steel
  • Flange and housing material: Aluminum
  • Start up torque: < 0.5 Ncm
  • Operating torque: < 0.3 Ncm
  • Permissible shaft loading: 80 N radial, 40 N axial
  • Operating speed: ≤ 9,000 min⁻¹
  • Moment of inertia: 6.2 gcm²
  • Bearing lifetime: 3.0 x 10^9 revolutions
  • Angular acceleration: ≤ 500,000 rad/s²
  • EMC compliance: EN 61000-6-2 and EN 61000-6-3
  • Enclosure rating: IP65 shaft side, IP67 housing side
  • Operating temperature: -40 °C to +100 °C
  • Storage temperature: -40 °C to +100 °C
  • Shock resistance: 70 g, 6 ms
  • Vibration resistance: 30 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 58mm x 40mm x 58mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 32,768 steps per revolution and 4,096 revolutions
  • Robust solid shaft design with stainless steel shaft and aluminum housing
  • IP65 shaft side and IP67 housing side protection for harsh environments
  • Low operating torque and start-up torque for efficient operation
  • Fast position forming time of less than 1 microsecond
  • Reverse polarity protection and low power consumption (≤ 0.7 W)
  • Communication via SSI and incremental TTL interface
  • High resistance to shocks (70 g) and vibration (30 g)
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with encoder wiring and configuration to ensure proper operation and safety.
Applications
  • Industrial automation and control systems
  • Robotics and servo motor feedback
  • Precision measurement and positioning
  • Machine tool and manufacturing equipment
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Low power consumption contributes to energy efficiency in industrial systems
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK AFM60B-S1TK032768 absolute encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
