AFM60B-S1TK065536 Absolute encoders

BRAND: SICK
SKU: 1151358
$2,104.60 List price: $2,645.20
+ −
30 Days Return Electricians Unlock Trade Access

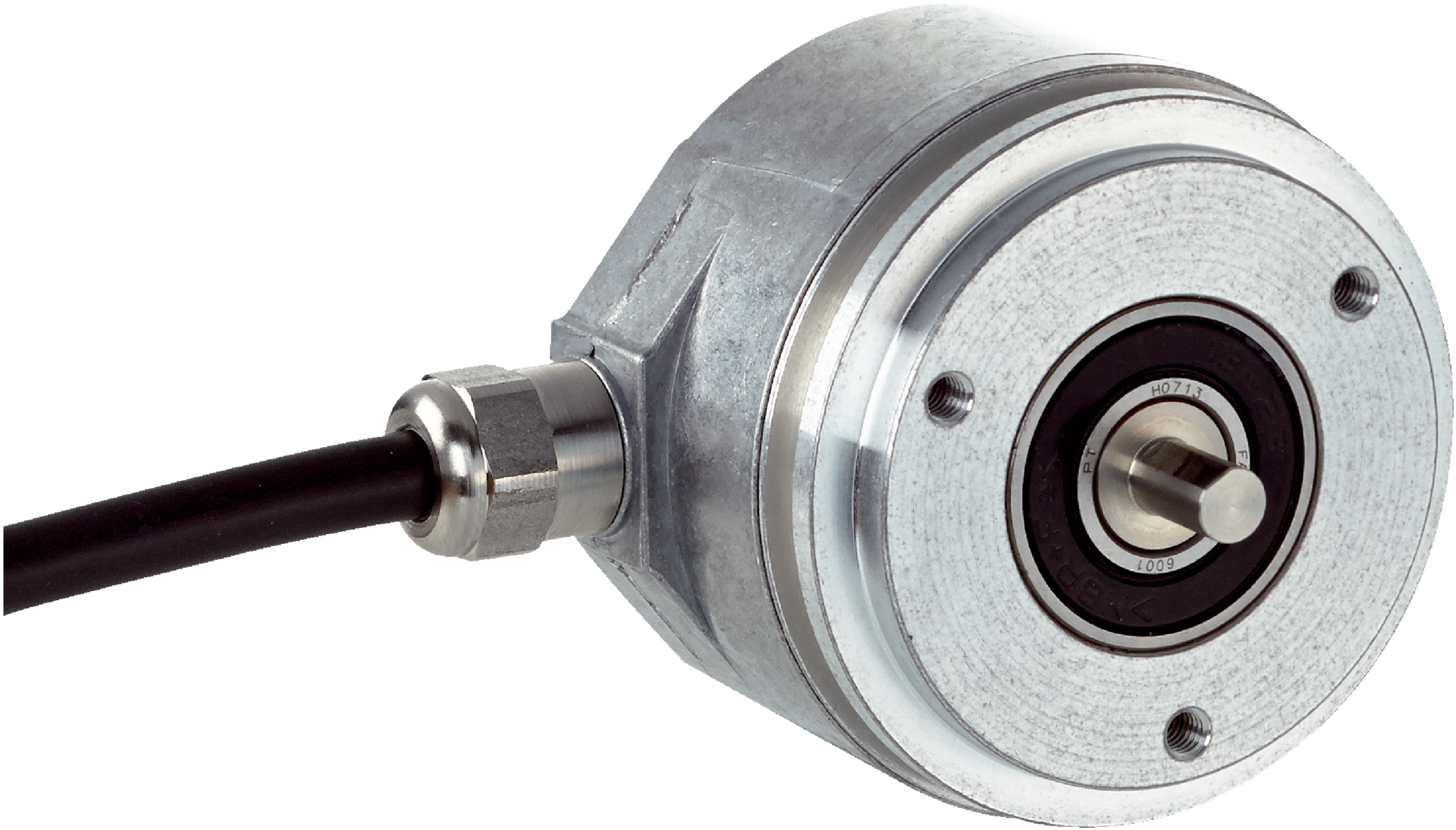

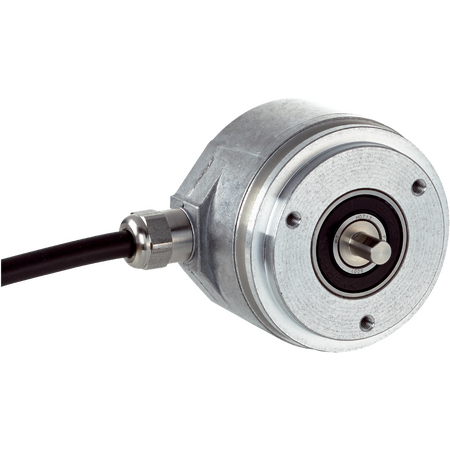

The SICK AFM60B-S1TK065536 Absolute Encoder offers precise position measurement with high resolution and robust mechanical design

Product Name/Title: AFM60B-S1TK065536 | Absolute encoders

Brand: SICK

SKU: 1151358

Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, Incremental encoder, Position sensor

Technical Specifications
  • Max resolution: 65,536 steps per revolution (16 bit) x 4,096 revolutions (12 bit)
  • Error limit: 0.05°
  • Repeatability standard deviation: 0.002°
  • Communication interface: SSI + incremental TTL
  • Initialization time: 50 ms
  • Position forming time: < 1 µs
  • Clock frequency: ≤ 2 MHz
  • Output frequency: ≤ 600 kHz
  • Load current: ≤ 30 mA
  • Supply voltage: 4.5 to 32 V
  • Power consumption: ≤ 0.7 W (without load)
  • Mechanical design: Solid shaft, servo flange
  • Shaft diameter: 6 mm, length: 10 mm
  • Start-up torque: < 0.5 Ncm
  • Operating torque: < 0.3 Ncm
  • Permissible shaft loading: 80 N radial, 40 N axial
  • Operating speed: ≤ 9,000 min⁻¹
  • Bearing lifetime: 3.0 x 10^9 revolutions
  • Enclosure rating: IP65 shaft side, IP67 housing side
  • Operating temperature: -40 °C to +100 °C
  • Resistance to shocks: 70 g, 6 ms
  • Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 40mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 65,536 steps per revolution and 4,096 revolutions
  • Solid shaft with stainless steel material and flat characteristic
  • Robust aluminum die cast housing with IP65/IP67 protection
  • Low start-up and operating torque for efficient operation
  • Reverse polarity protection and low power consumption
  • Fast initialization time of 50 ms and position forming time under 1 µs
  • Communication via SSI and incremental TTL interfaces
  • High mechanical durability with bearing lifetime of 3.0 x 10^9 revolutions
  • Wide operating temperature range from -40 °C to +100 °C
  • Certified with multiple international conformity declarations
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
  • Industrial automation and control systems
  • Robotics and servo motor feedback
  • Position and speed measurement in manufacturing
  • Safety-related motion control applications
Standards & Compliance
  • Complies with AS/NZS 61000 series for EMC standards
Environmental Benefits
  • Low power consumption reduces energy usage
  • Durable design minimizes replacement frequency and waste
  • Compliance with RoHS ensures reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.

Available Now

The SICK AFM60B-S1TK065536 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
