AFM60B-S4AA004096 | Absolute encoders
The SICK AFM60B-S4AA004096 absolute encoder offers high precision 12-bit resolution with robust construction, suitable for demanding industrial applications requiring reliable position feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

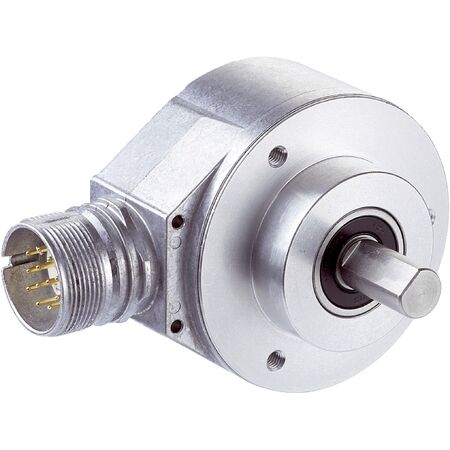

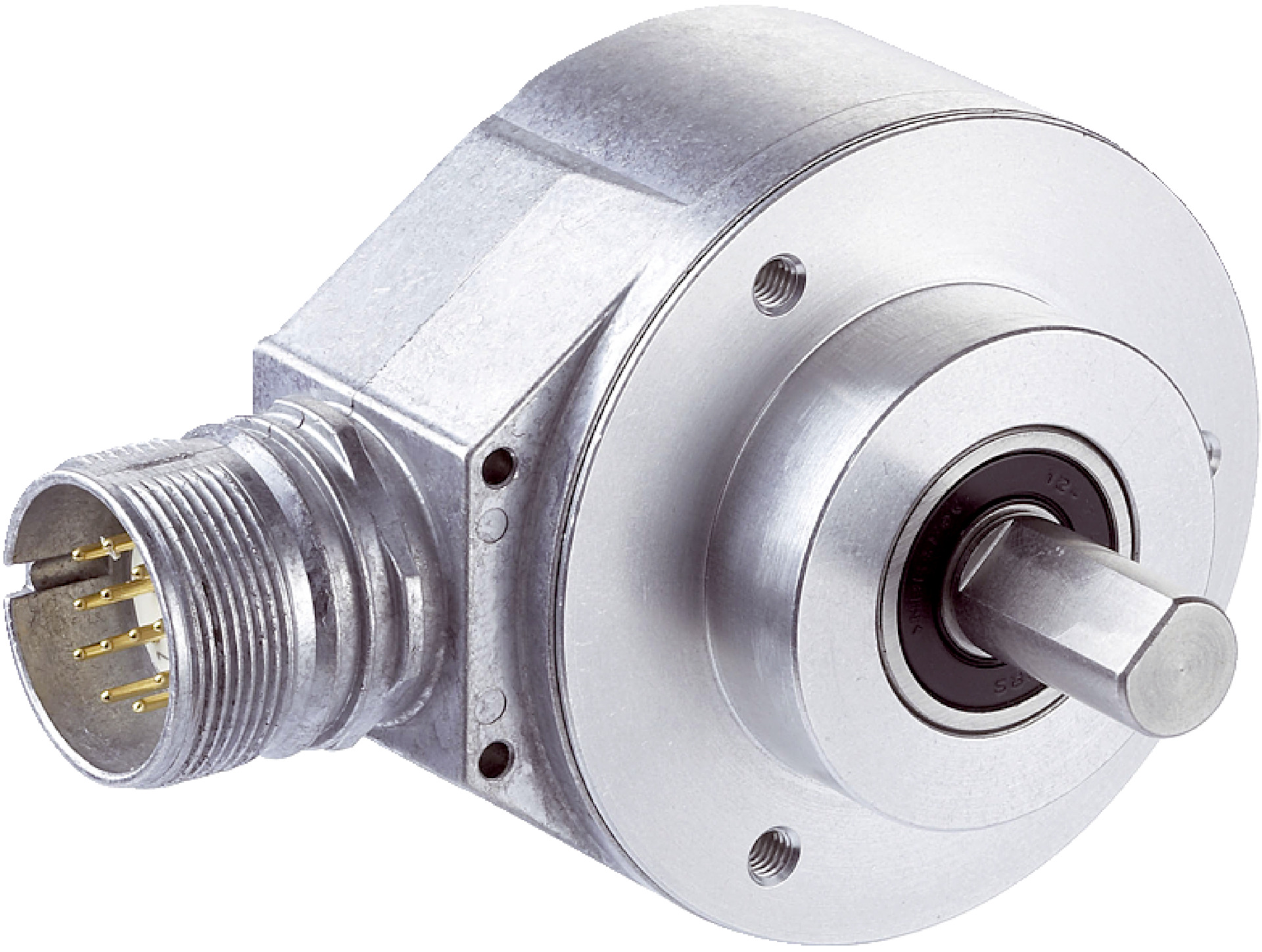

Product Name/Title: AFM60B-S4AA004096 | Absolute encoders
Brand: SICK
SKU: 1037777
Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, Position encoder, Shaft encoder
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Max resolution: 4,096 steps/rev x 4,096 revolutions (12 bit x 12 bit)
- Error limits G: 0.05°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: ≤ 2 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Housing material: Aluminum die cast
- Flange material: Aluminum
- Shaft material: Stainless steel
- Start up torque: < 0.5 Ncm (+20 °C)
- Operating torque: < 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 70 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 4,096 steps per revolution and 4,096 revolutions (12 bit x 12 bit)
- Solid shaft with 10 mm diameter and flat for secure mounting
- Robust aluminum die cast housing and flange
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Low start-up torque (< 0.5 Ncm) and operating torque (< 0.3 Ncm)
- Reverse polarity protection included
- Communication via SSI interface with Gray code
- High operating speed up to 9,000 min⁻¹
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Wide operating temperature range from -40 °C to +100 °C
- Certified with multiple international conformity declarations including EU, UK, ACMA, and cULus
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate shaft positioning
- Machine tools requiring high resolution feedback
- Conveyor systems and material handling equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption (≤ 0.7 W) supports energy-efficient operation
Warranty Information
Warranty details available upon request from the manufacturer or authorized distributor.
Available Now
The SICK AFM60B-S4AA004096 absolute encoder is available for immediate purchase, ideal for industrial automation and precision positioning applications.
