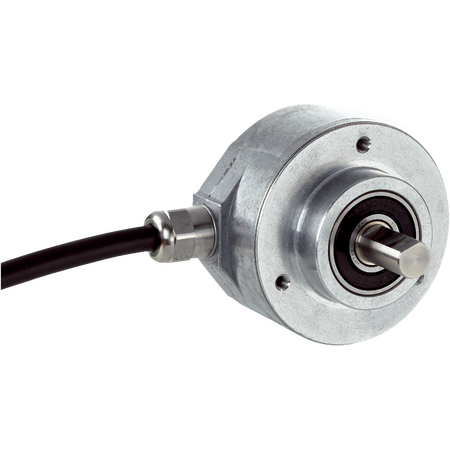

AFM60B-S4KK032768 | Absolute encoders
The SICK AFM60B-S4KK032768 absolute encoder offers high precision position feedback with 15-bit resolution and robust construction, suitable for demanding industrial and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AFM60B-S4KK032768 | Absolute encoders
Brand: SICK
SKU: 1076924
Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, High resolution encoder, Industrial position sensor
Technical Specifications
- Max resolution: 32,768 steps per revolution (15 bit) x 4,096 revolutions (12 bit)
- Error limits: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray code
- Clock frequency: ≤ 2 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm, length: 19 mm
- Materials: Stainless steel shaft, aluminum flange and housing
- Operating torque: < 0.3 Ncm
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature: -40°C to +100°C
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 32,768 steps per revolution and 4,096 revolutions
- Robust mechanical design with solid shaft and face mount flange
- Stainless steel shaft with flat for secure mounting
- IP65 rated shaft side and IP67 rated housing side for dust and water protection
- Low operating torque below 0.3 Ncm
- Wide operating temperature range from -40°C to +100°C
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- Communication via SSI interface with Sin/Cos signals
- High reliability with MTTFD of 250 years according to EN ISO 13849-1
- Long bearing lifetime of 3.0 x 10^9 revolutions
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Robotics and motion control systems
- Machine tool feedback
- Safety-related applications requiring reliable encoder data
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable materials and long service life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60B-S4KK032768 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
