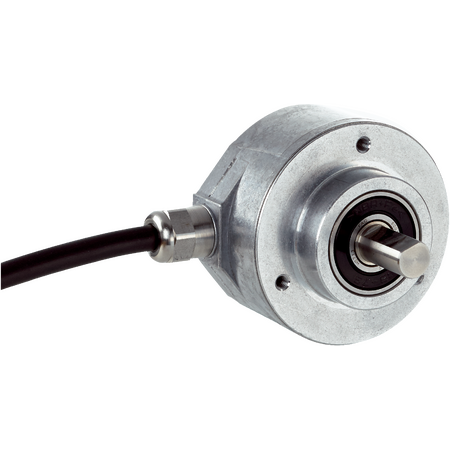

AFM60B-S4LM032768 | Absolute encoders

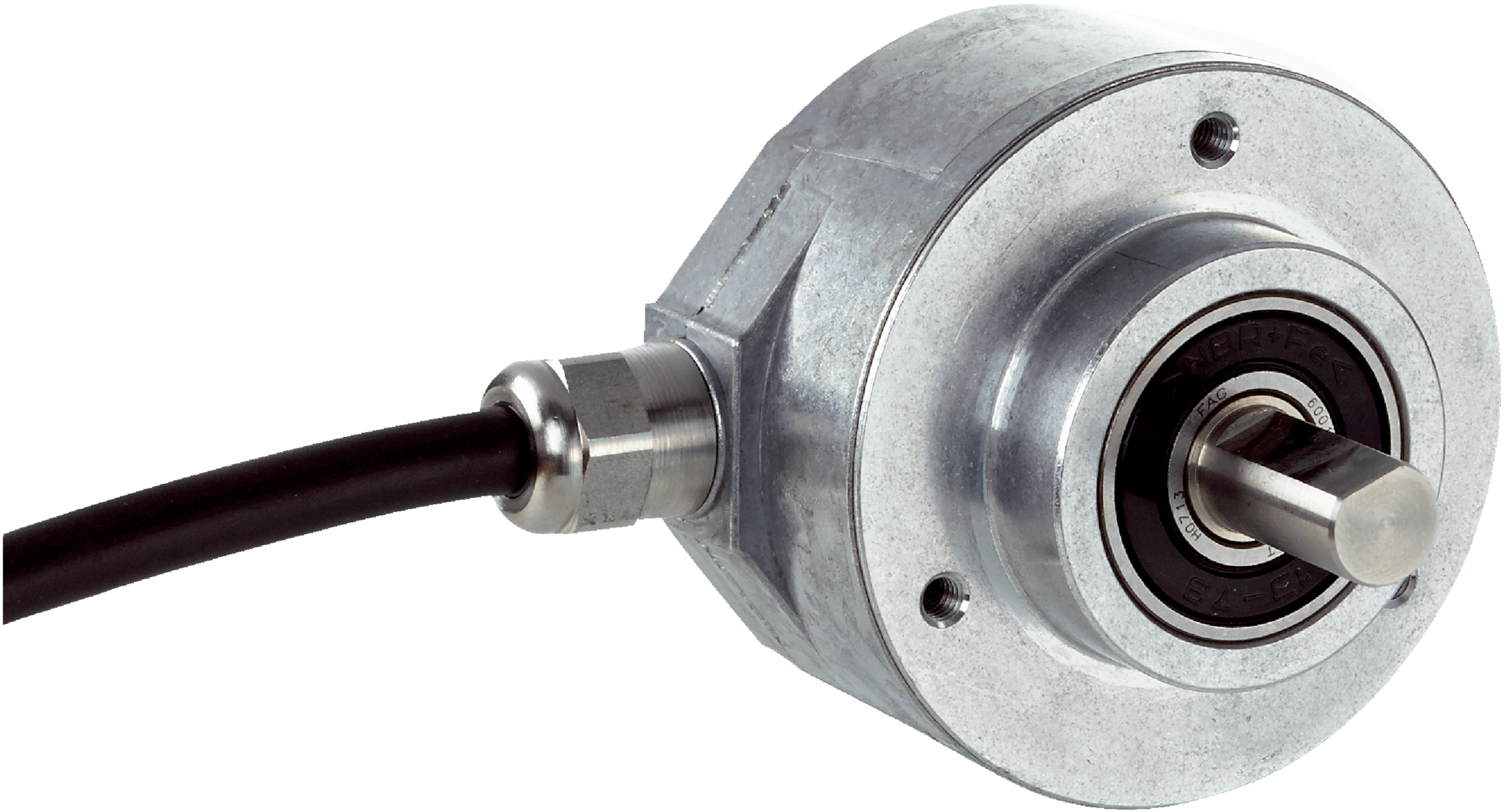

The SICK AFM60B-S4LM032768 absolute encoder offers high precision and robust performance for industrial automation, featuring a solid shaft, high resolution, and durable IP65/IP67 rated housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AFM60B-S4LM032768 | Absolute encoders
Brand: SICK
SKU: 1108440
Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, Industrial position encoder
Technical Specifications
- Max resolution: 32,768 steps per revolution (15 bit) and 4,096 revolutions (12 bit)
- Error limits: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + incremental / HTL
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Shaft diameter: 10 mm with flat
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -40 °C to +100 °C
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 32,768 steps per revolution and 4,096 revolutions
- Solid shaft with face mount flange and stainless steel shaft
- Robust aluminum die cast housing with IP65/IP67 protection
- Low start-up and operating torque for efficient operation
- Reverse polarity protection and low power consumption
- Communication via SSI and incremental/HTL interfaces
- High reliability with MTTFD of 250 years and long bearing lifetime
- Wide operating temperature range from -40°C to +100°C
- Resistance to shocks (70 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder wiring and configuration to ensure proper operation and safety compliance.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Conveyor and material handling systems
- Safety-related monitoring applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes replacement frequency and waste
- Compliance with RoHS reduces hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60B-S4LM032768 absolute encoder is available for immediate purchase, ideal for high-precision industrial automation and safety-related applications.
