AFM60B-S4RM262144 | Absolute encoders

BRAND: SICK
SKU: 1118196
$2,272.80 List price: $2,856.60
+ −
30 Days Return Delivery Options

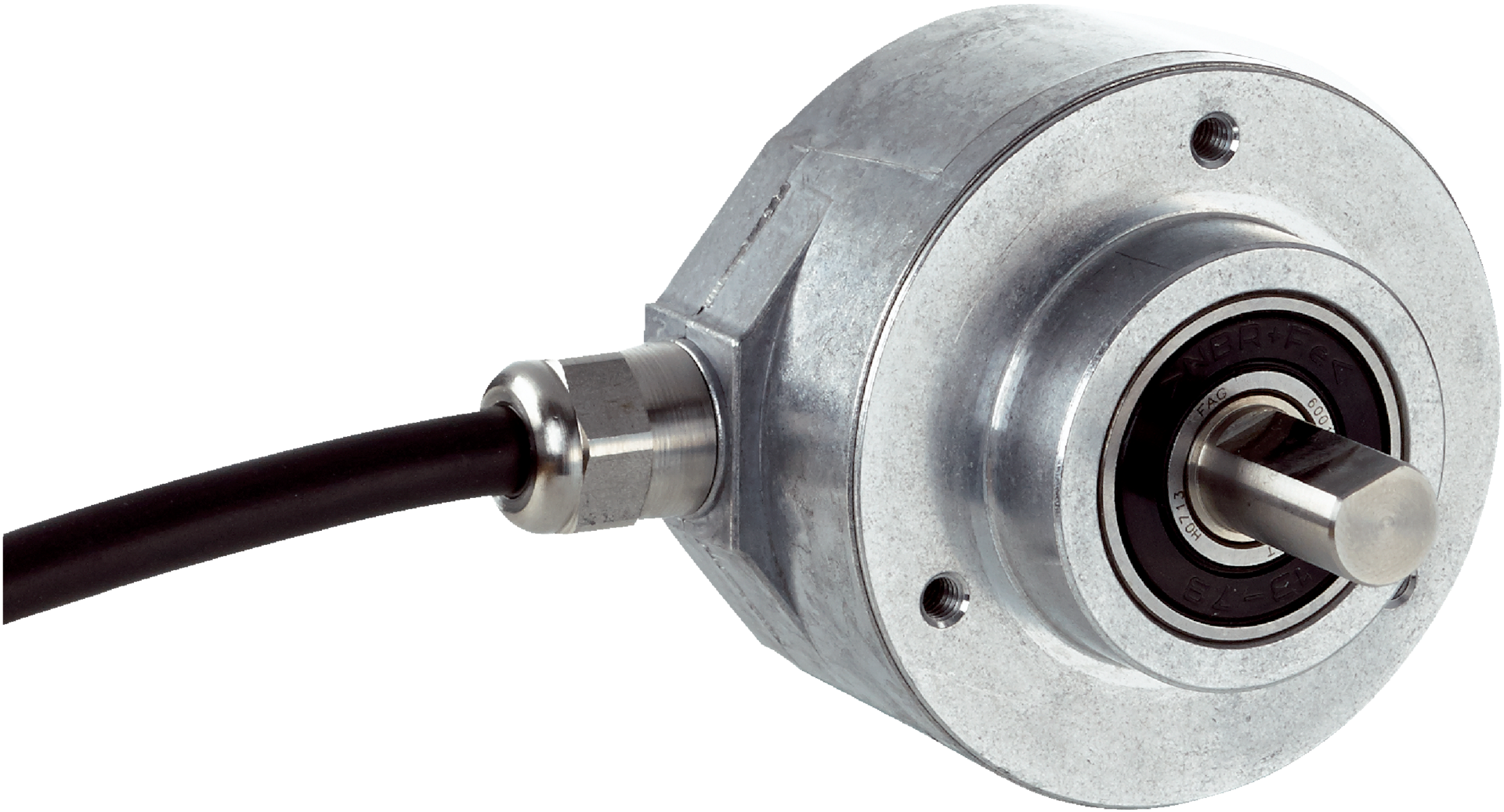

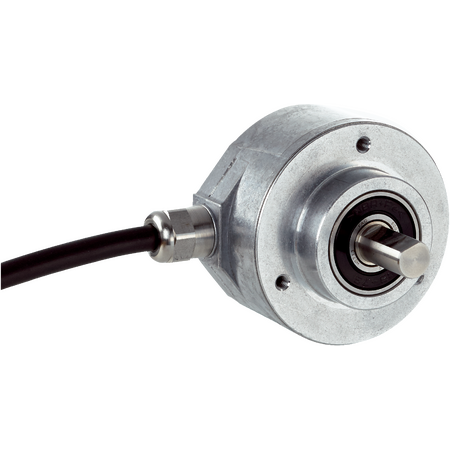

The SICK AFM60B-S4RM262144 Absolute Encoder offers precise position measurement with high resolution and robust mechanical design, suitable for demanding industrial applications.

Product Name/Title: AFM60B-S4RM262144 | Absolute encoders

Brand: SICK

SKU: 1118196

Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, Incremental encoder, Position sensor

Technical Specifications
  • MTTFD: 250 years (EN ISO 13849-1)
  • Max resolution: 262,144 steps/rev (18 bit) x 4,096 revolutions (12 bit)
  • Error limits: 0.05°
  • Repeatability standard deviation: 0.002°
  • Communication interface: SSI + incremental
  • Initialization time: 50 ms
  • Position forming time: < 1 µs
  • Code type: Gray code
  • Clock frequency: ≤ 2 MHz
  • Output frequency: ≤ 600 kHz
  • Load current: ≤ 30 mA
  • Connection type: Cable, 12-wire, radial, 5 m
  • Supply voltage: 4.5 to 32 V
  • Reverse polarity protection: Yes
  • Mechanical design: Solid shaft, face mount flange
  • Shaft diameter: 10 mm with flat
  • Shaft length: 19 mm
  • Shaft material: Stainless steel
  • Flange and housing material: Aluminum
  • Start up torque: < 0.5 Ncm at 20 °C
  • Operating torque: < 0.3 Ncm at 20 °C
  • Permissible shaft loading: 80 N radial, 40 N axial
  • Operating speed: ≤ 9,000 min⁻¹
  • Moment of inertia of rotor: 6.2 gcm²
  • Bearing lifetime: 3.0 x 10^9 revolutions
  • Angular acceleration: ≤ 500,000 rad/s²
  • EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
  • Enclosure rating: IP65 shaft side, IP67 housing side
  • Permissible relative humidity: 90% (no condensation)
  • Operating temperature range: -40 °C to +100 °C
  • Storage temperature range: -40 °C to +100 °C
  • Shock resistance: 70 g, 6 ms
  • Vibration resistance: 30 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 40mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
  • Solid shaft with face mount flange design
  • Robust aluminum die cast housing with IP65/IP67 protection
  • Low operating torque and start-up torque
  • Reverse polarity protection
  • Fast initialization time of 50 ms and position forming time under 1 µs
  • Communication via SSI and incremental interface
  • High mechanical durability with bearing lifetime of 3.0 x 10^9 revolutions
  • Wide operating temperature range from -40 °C to +100 °C
  • Certified with multiple international conformity declarations including EU, UK, ACMA, cULus
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
  • Industrial automation and control systems
  • Robotics and motion control
  • Machine tool positioning
  • Safety-related monitoring and control
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Low power consumption of ≤ 0.7 W reduces energy usage
  • Durable design extends product life and reduces waste
  • Compliance with China RoHS ensures reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK AFM60B-S4RM262144 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
