AFM60B-TBPA032768 | Absolute encoders

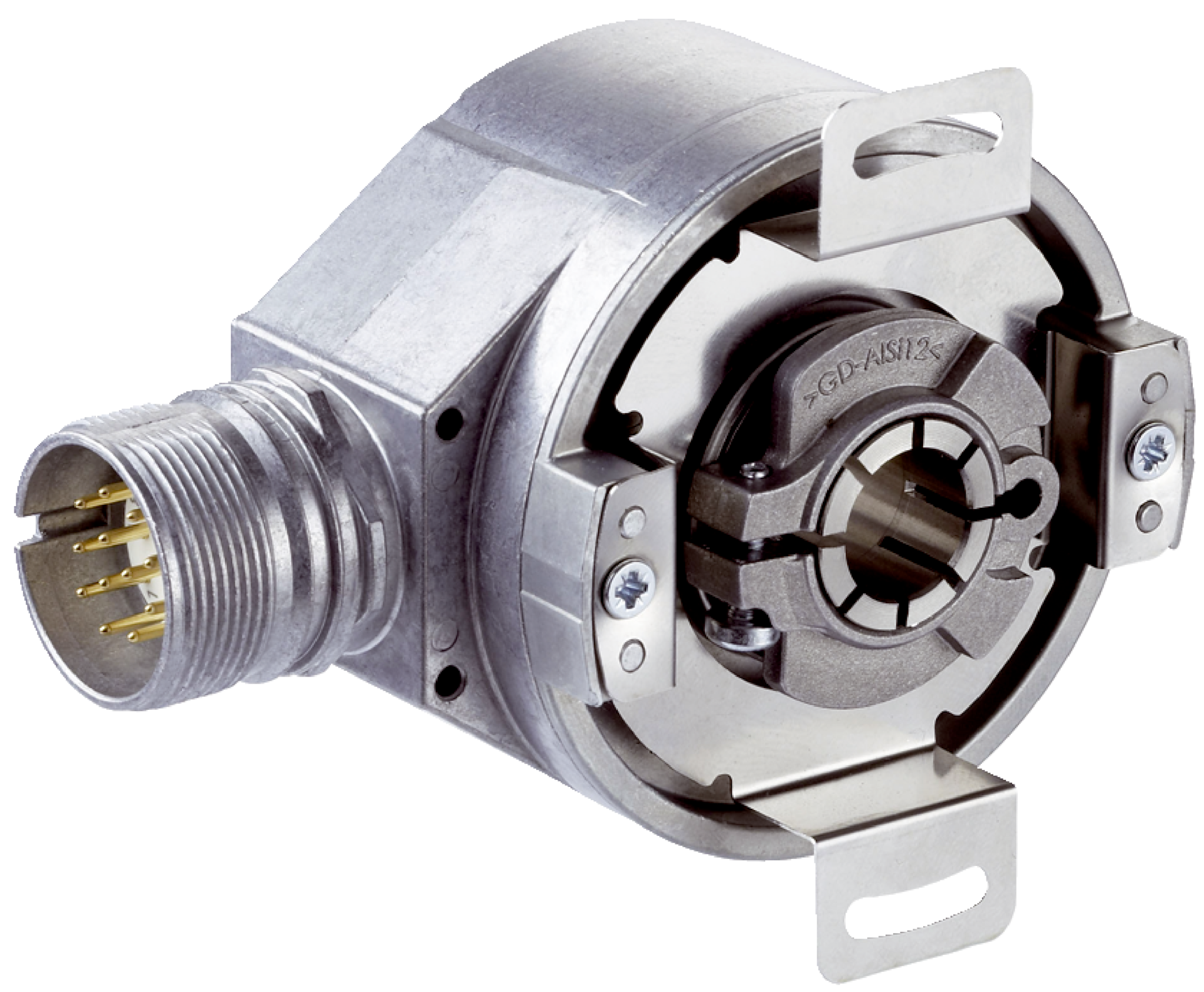

The SICK AFM60B-TBPA032768 absolute encoder offers high precision and reliability with a robust aluminum housing, suitable for demanding industrial applications requiring accurate position feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AFM60B-TBPA032768 | Absolute encoders
Brand: SICK
SKU: 1121724
Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, High resolution encoder, Industrial position sensor
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Max resolution: 32,768 steps/rev (15 bit) x 4,096 revolutions (12 bit)
- Error limits: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: ≤ 2 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W
- Mechanical design: Through hollow shaft, 8 mm diameter
- Materials: Stainless steel shaft, aluminum flange and housing
- Operating torque: < 0.6 Ncm
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -40 °C to +100 °C
- Shock resistance: 70 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 32,768 steps per revolution and 4,096 revolutions
- Robust through hollow shaft mechanical design with stainless steel shaft
- IP65 rated on shaft side and IP67 on housing side for dust and water protection
- Low operating and start-up torque for efficient operation
- Fast initialization time of 50 ms and position forming time under 1 µs
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- Communication via SSI interface with Gray code
- Adjustable code sequence parameter (CW/CCW)
- High resistance to shocks (70 g) and vibration (30 g)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Conveyor and material handling systems
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AFM60B-TBPA032768 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
