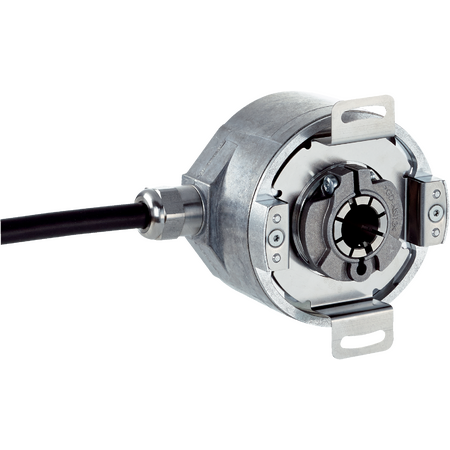

AFM60B-TGKL008192 | Absolute encoders

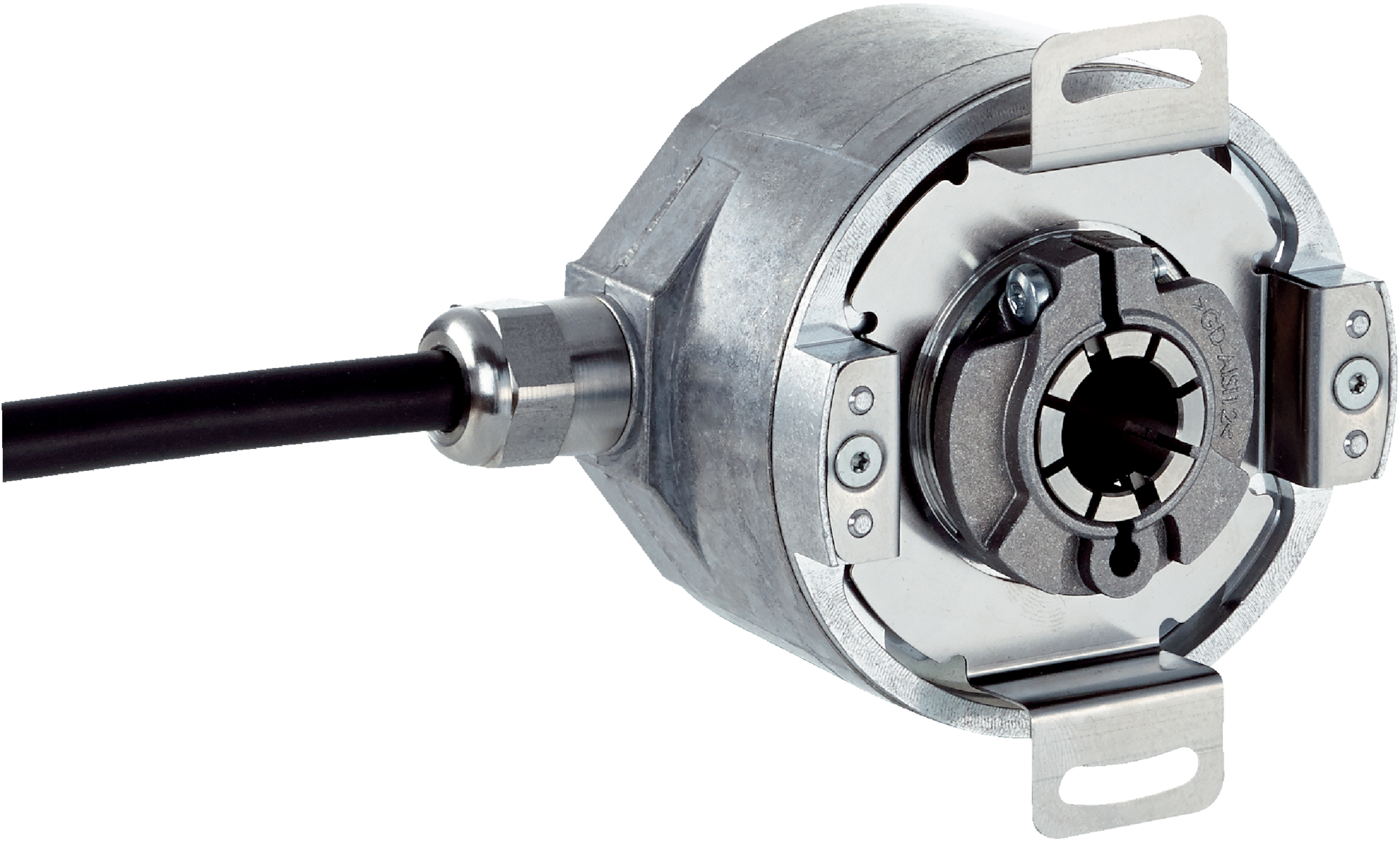

The SICK AFM60B-TGKL008192 absolute encoder offers high precision and robust performance for industrial automation applications, featuring a through hollow shaft design, high resolution, and comprehensive certifications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AFM60B-TGKL008192 | Absolute encoders
Brand: SICK
SKU: 1077710
Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, High resolution encoder, Industrial position sensor
Technical Specifications
- Max resolution: 8,192 steps per revolution (13 bit) x 4,096 revolutions (12 bit)
- Error limits: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray code
- Clock frequency: ≤ 2 MHz
- Output frequency: ≤ 200 kHz
- Load resistance: ≥ 120 Ω
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Through hollow shaft, 14 mm shaft diameter
- Materials: Stainless steel shaft, aluminum flange and housing
- Operating torque: < 0.6 Ncm at +20 °C
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Operating temperature range: -40 °C to +100 °C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 8,192 steps per revolution and 4,096 revolutions
- Robust through hollow shaft mechanical design with stainless steel shaft
- IP65 shaft side and IP67 housing side protection for harsh environments
- Low operating torque and high operating speed up to 9,000 min⁻¹
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- Communication via SSI interface with Sin/Cos output
- High repeatability with standard deviation of 0.002°
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Certified with multiple international conformity declarations including EU, UK, ACMA, and cULus
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Safety-related monitoring and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60B-TGKL008192 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
