AFM60B-THLA032768 | Absolute encoders

BRAND: SICK
SKU: 1106285
$2,257.90 List price: $2,837.90
+ −
30 Days Return Delivery Options

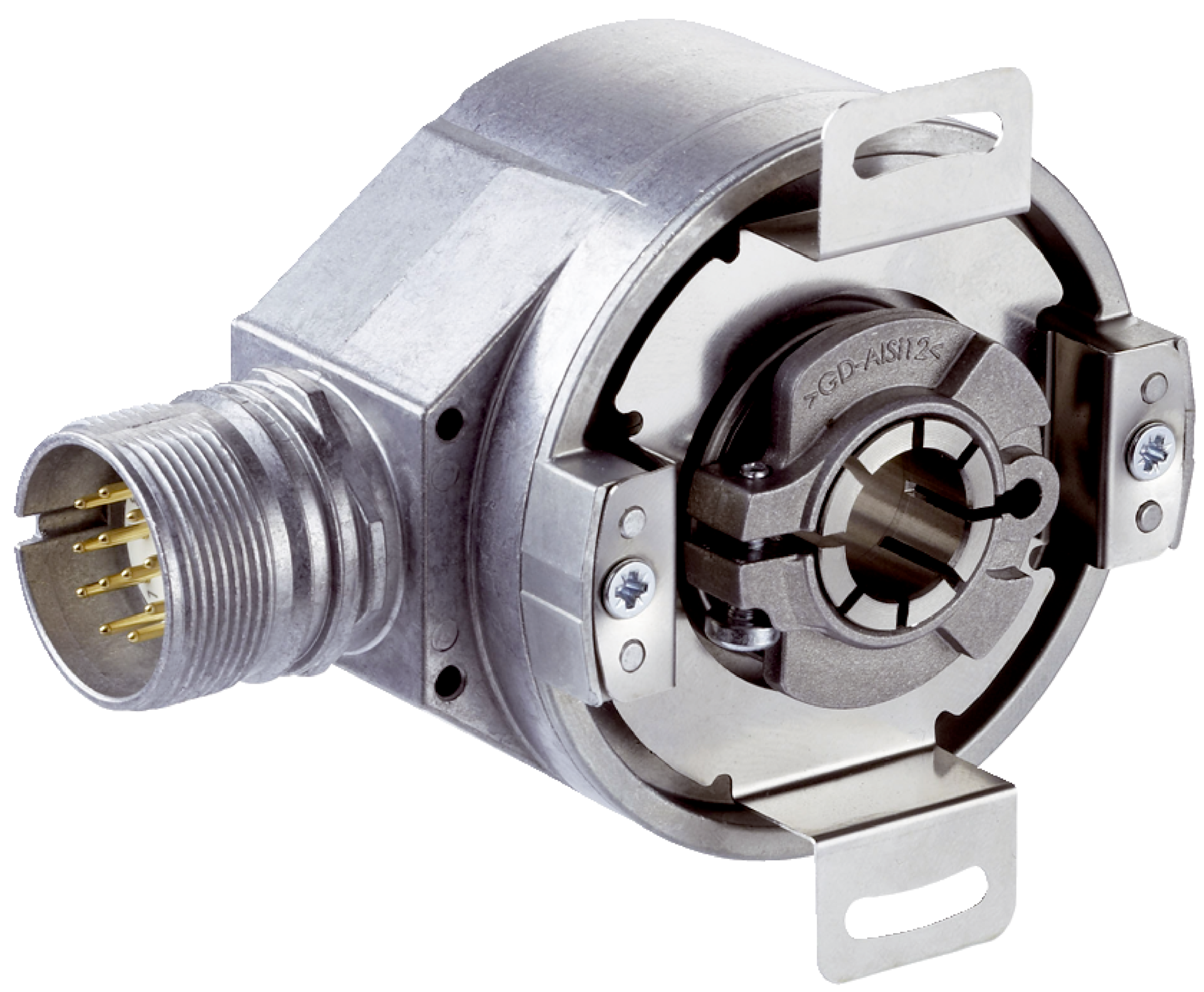

The SICK AFM60B-THLA032768 absolute encoder offers high precision position feedback with a robust design, suitable for demanding industrial and safety-related applications.

Product Name/Title: AFM60B-THLA032768 | Absolute encoders

Brand: SICK

SKU: 1106285

Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, Through hollow shaft encoder, High resolution encoder

Technical Specifications
  • Max resolution: 32,768 steps per revolution (15 bit) x 4,096 revolutions (12 bit)
  • Error limits: 0.05°
  • Repeatability standard deviation: 0.002°
  • Communication interface: SSI + incremental / HTL
  • Initialization time: 50 ms
  • Position forming time: < 1 µs
  • Code type: Gray code
  • Clock frequency: ≤ 2 MHz
  • Output frequency: ≤ 600 kHz
  • Load current: ≤ 30 mA
  • Supply voltage: 4.5 to 32 V
  • Power consumption: ≤ 0.7 W (without load)
  • Mechanical design: Through hollow shaft with 15 mm diameter
  • Shaft material: Stainless steel
  • Housing material: Aluminum die cast
  • Start up torque: < 0.8 Ncm at 20°C
  • Operating torque: < 0.6 Ncm at 20°C
  • Permissible radial movement static: ± 0.3 mm
  • Permissible axial movement static: ± 0.5 mm
  • Operating speed: ≤ 9,000 min⁻¹
  • Bearing lifetime: 3.0 x 10^9 revolutions
  • Operating temperature range: -40°C to +100°C
  • Enclosure rating: IP65 shaft side, IP67 housing side
  • Dimensions (H x L x W): 60mm x 60mm x 60mm
  • Weight: 0.2 kg
Key Features
  • High resolution with 32,768 steps per revolution and 4,096 revolutions
  • Robust through hollow shaft mechanical design with stainless steel shaft
  • Fast position forming time of less than 1 microsecond
  • Communication via SSI and incremental HTL interface
  • Wide operating temperature range from -40°C to +100°C
  • IP65 rated shaft side and IP67 rated housing side for protection against dust and water
  • Low power consumption of up to 0.7 W
  • Reverse polarity protection included
  • High mechanical durability with bearing lifetime of 3.0 x 10^9 revolutions
  • Safety-related parameter MTTFD of 250 years according to EN ISO 13849-1
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and alignment.
Applications
  • Industrial automation and control systems
  • Robotics and motion control
  • Machine tool positioning
  • Safety-related applications requiring precise position feedback
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Low power consumption reduces energy usage in industrial applications
  • Durable design minimizes replacement frequency and electronic waste
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK AFM60B-THLA032768 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
