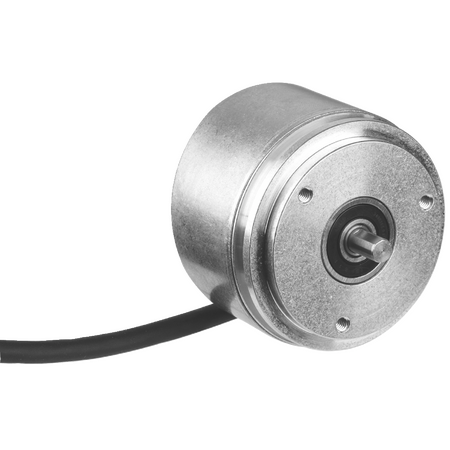

AFM60E-S1AL001024 | Absolute encoders

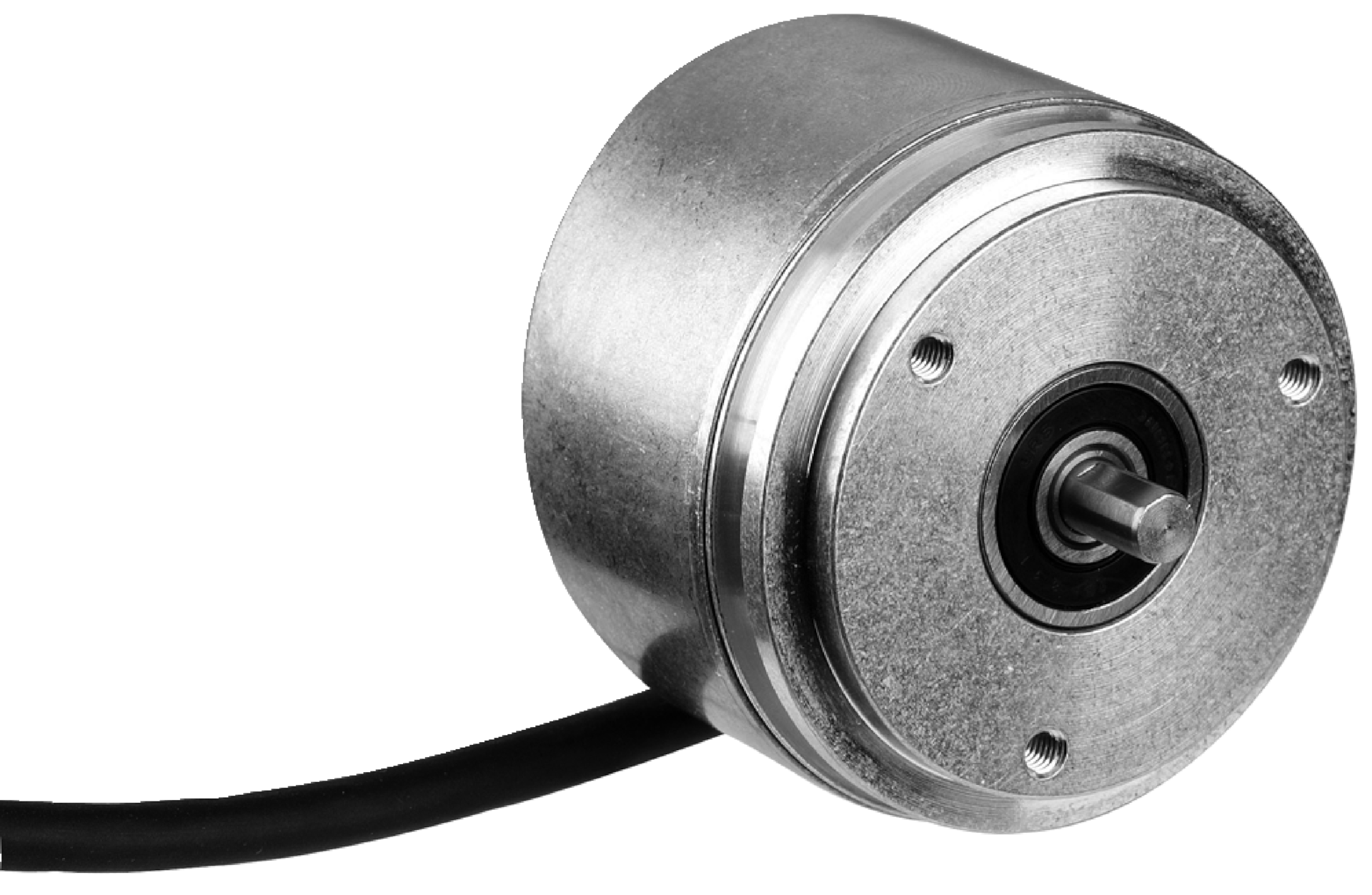

The SICK AFM60E-S1AL001024 Absolute Encoder offers high precision position measurement with robust construction, ideal for industrial automation and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AFM60E-S1AL001024 | Absolute encoders
Brand: SICK
SKU: 1059293
Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, Position encoder, Industrial encoder
Technical Specifications
- Max resolution: 1,024 steps per revolution (10 bit) x 4,096 revolutions (12 bit)
- Error limits: 0.2°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W
- Mechanical design: Solid shaft with servo flange
- Shaft diameter: 6 mm with flat
- Operating torque: < 0.3 Ncm
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: 0 °C to +85 °C
- Resistance to shocks: 50 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 1,024 steps per revolution and 4,096 revolutions
- Robust mechanical design with solid stainless steel shaft and aluminum housing
- IP65/IP67 rated for protection against dust and water
- Low operating torque and high permissible shaft loading
- Fast initialization time of 50 ms and position forming time under 1 µs
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- Communication via SSI interface with Gray code output
- Long bearing lifetime of 3.0 x 10^9 revolutions
- High resistance to shocks (50 g) and vibrations (20 g)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical and mechanical integration and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Robotics requiring accurate angular position feedback
- Machine tools and servo drives
- Safety-related applications in manufacturing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK AFM60E-S1AL001024 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
