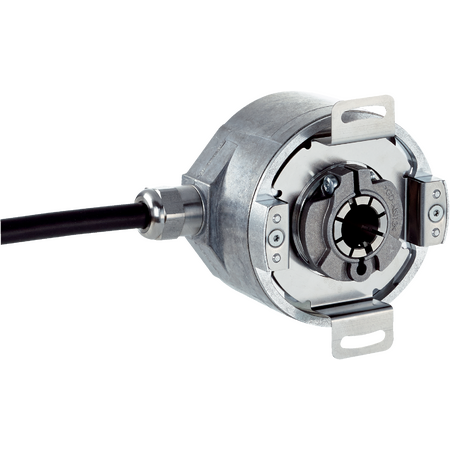

AFM60E-TFKK004096 | Absolute encoders
The SICK AFM60E-TFKK004096 absolute encoder offers high precision position feedback with a robust through hollow shaft design, suitable for demanding industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AFM60E-TFKK004096 | Absolute encoders
Brand: SICK
SKU: 1084052
Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, Through hollow shaft encoder
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Max resolution: 4,096 steps/rev x 4,096 revolutions (12 bit x 12 bit)
- Error limits G: 0.2°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: ≤ 1 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Through hollow shaft
- Shaft diameter: 1/2 inch
- Start up torque: < 0.8 Ncm
- Operating torque: < 0.6 Ncm
- Operating speed: ≤ 9,000 min⁻¹
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: 0 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 50 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 4,096 steps per revolution and 4,096 revolutions (12 bit x 12 bit)
- Robust through hollow shaft mechanical design with stainless steel shaft
- Communication via SSI interface with Sin/Cos output
- Fast initialization time of 50 ms and position forming time under 1 µs
- High repeatability with standard deviation of 0.002°
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Low operating torque less than 0.6 Ncm
- Reverse polarity protection included
- Long bearing lifetime of 3.0 x 10^9 revolutions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation for precise position measurement
- Robotics requiring accurate angular position feedback
- Machine tools and manufacturing equipment
- Conveyor systems and material handling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption of ≤ 0.7 W reduces energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK AFM60E-TFKK004096 absolute encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
