AFM60E-THTA004096 | Absolute encoders

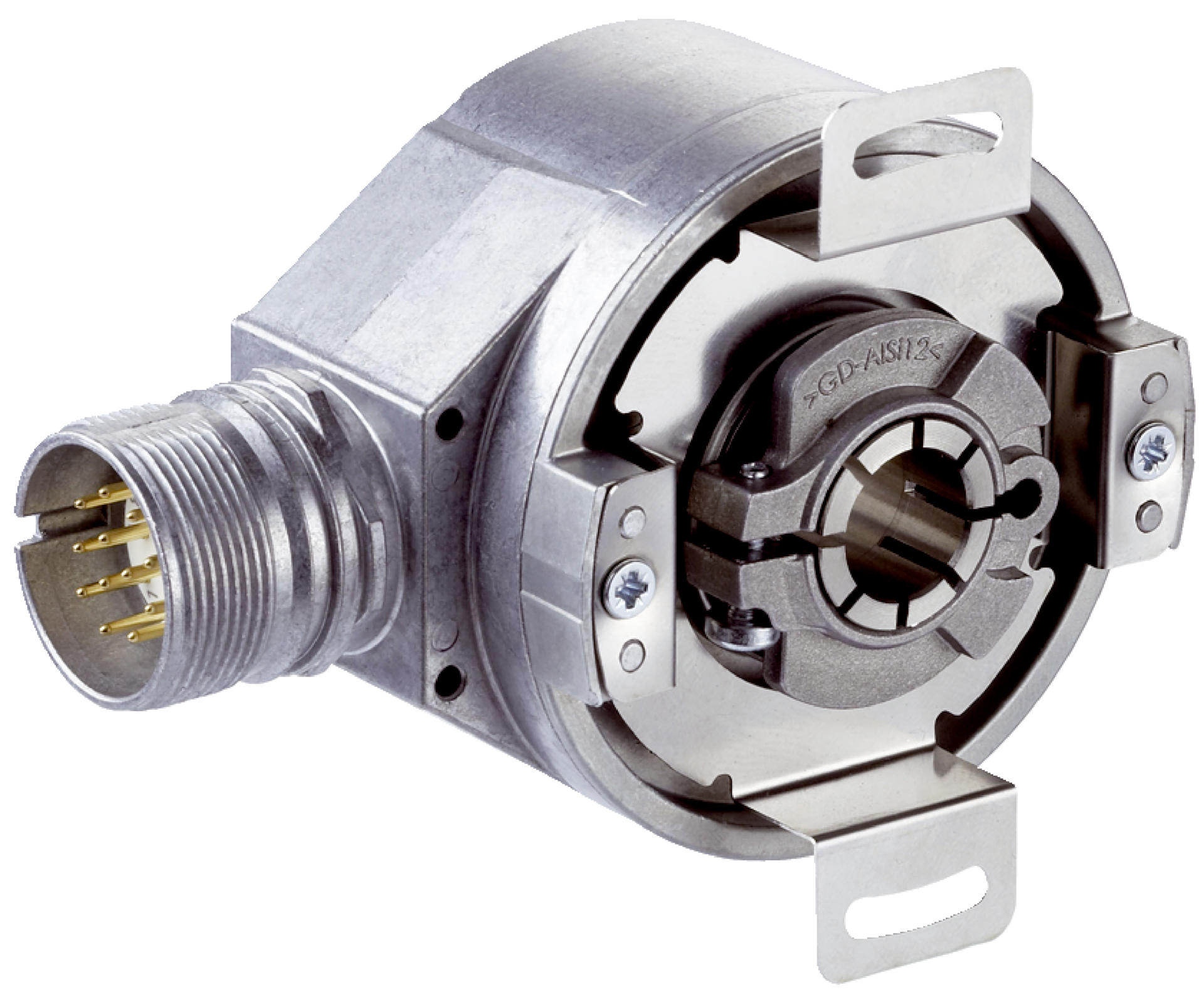

The SICK AFM60E-THTA004096 absolute encoder offers high precision position measurement with a robust design, suitable for industrial automation and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AFM60E-THTA004096 | Absolute encoders
Brand: SICK
SKU: 1057673
Alternatively Known As: Absolute rotary encoder, SSI encoder, high resolution encoder, industrial position sensor
Technical Specifications
- Max resolution: 4,096 steps per revolution x 4,096 revolutions (12 bit x 12 bit)
- Error limit: 0.2°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + incremental TTL
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Mechanical design: Through hollow shaft, 15 mm diameter
- Operating temperature range: 0 °C to +85 °C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 4,096 steps per revolution and 4,096 revolutions (12 bit x 12 bit)
- Robust mechanical design with through hollow shaft and stainless steel shaft
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Low operating torque less than 0.6 Ncm
- Fast position forming time under 1 microsecond
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- Communication via SSI and incremental TTL interface
- Adjustable code sequence parameters (CW/CCW)
- High resistance to shocks (50 g) and vibration (20 g)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation for precise position measurement
- Robotics requiring accurate angular position feedback
- Machine tools and manufacturing equipment
- Safety-related systems requiring reliable encoder feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK AFM60E-THTA004096 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
