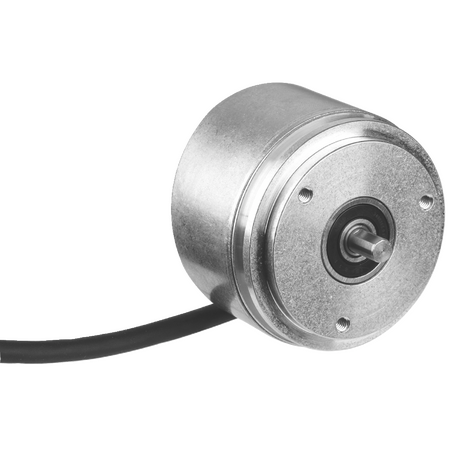

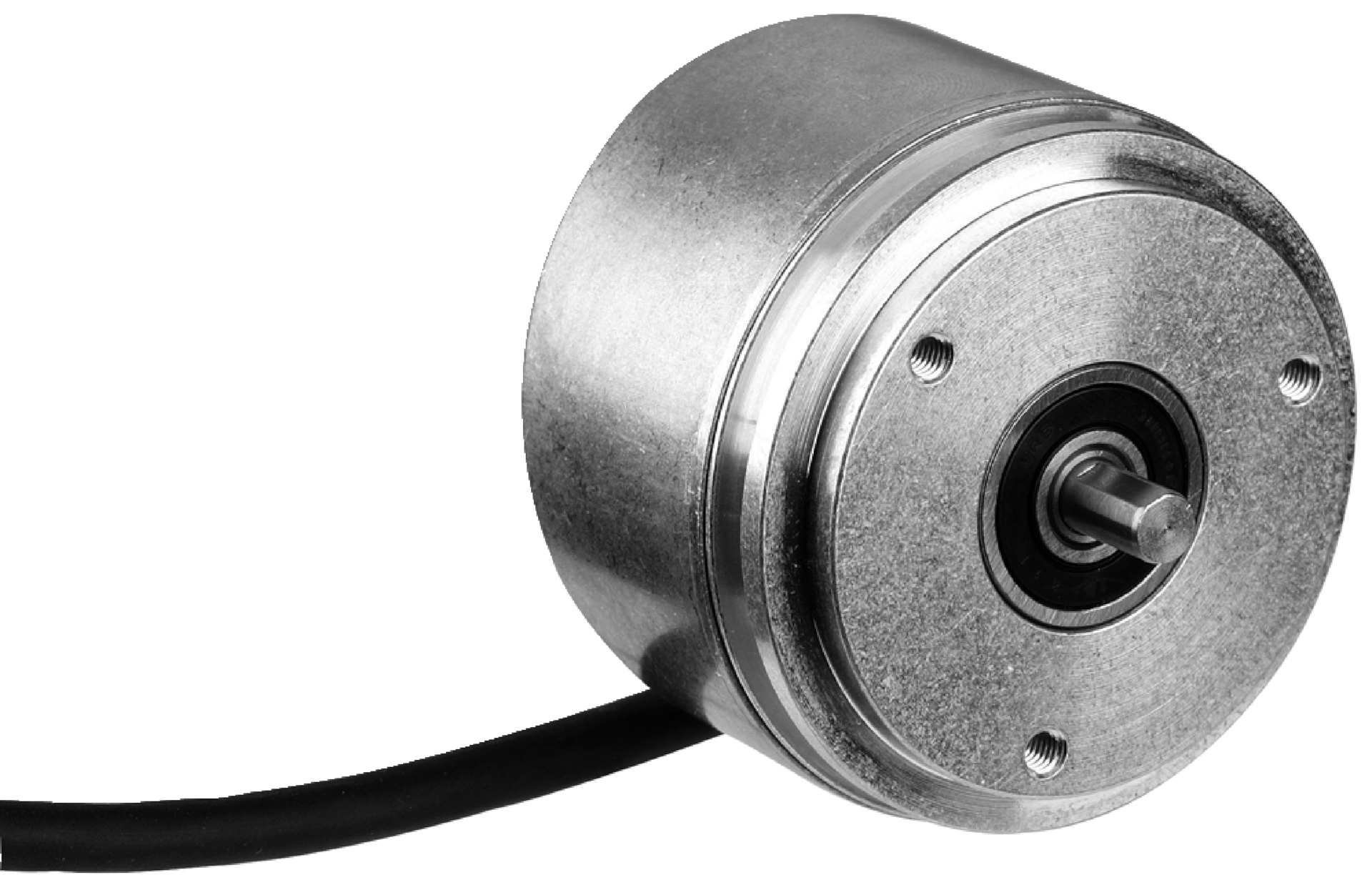

AFS60A-S1PM262144 | Absolute encoders

BRAND: SICK
SKU: 1037502
$1,631.50 List price: $2,050.60
+ −
30 Days Return Delivery Options
The SICK AFS60A-S1PM262144 Absolute Encoder offers high precision 18-bit resolution with robust construction, ideal for industrial automation and safety-related applications.

Product Name/Title: AFS60A-S1PM262144 | Absolute encoders

Brand: SICK

SKU: 1037502

Alternatively Known As: Rotary encoder, SSI absolute encoder, high resolution encoder, position encoder, industrial encoder

Technical Specifications
  • Resolution: 262,144 steps per revolution (18 bit)
  • Error limit: 0.03°
  • Repeatability standard deviation: 0.002°
  • Communication interface: SSI with Gray code
  • Initialization time: 50 ms
  • Position forming time: < 1 µs
  • Supply voltage: 4.5 to 32 V
  • Power consumption: ≤ 0.7 W (without load)
  • Mechanical design: Solid shaft, servo flange
  • Shaft diameter: 6 mm, length: 10 mm, with flat
  • Materials: Stainless steel shaft, aluminum flange and housing
  • Start-up torque: < 0.5 Ncm, Operating torque: < 0.3 Ncm
  • Permissible shaft loading: 80 N radial, 40 N axial
  • Operating speed: ≤ 9,000 min⁻¹
  • Moment of inertia of rotor: 6.2 gcm²
  • Bearing lifetime: 3.0 x 10^9 revolutions
  • Operating temperature range: -40 °C to +100 °C
  • Enclosure rating: IP65 shaft side, IP67 housing side
  • Shock resistance: 60 g, 6 ms
  • Vibration resistance: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 58mm x 40mm x 58mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 262,144 steps per revolution (18 bit)
  • Robust mechanical design with solid shaft and servo flange
  • Stainless steel shaft with flat for secure coupling
  • Low start-up torque (< 0.5 Ncm) and operating torque (< 0.3 Ncm)
  • High operating speed up to 9,000 min⁻¹
  • IP65 rated on shaft side and IP67 on housing side for harsh environments
  • Reverse polarity protection and low power consumption (≤ 0.7 W)
  • Fast initialization time of 50 ms and position forming time < 1 µs
  • Communication via SSI interface with Gray code
  • Adjustable code sequence parameter (CW/CCW)
  • Long bearing lifetime of 3.0 x 10^9 revolutions
  • High resistance to shocks (60 g) and vibration (20 g)
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
  • Industrial automation and control systems
  • Robotics and servo motor feedback
  • Position and speed measurement in manufacturing
  • Safety-related motion control applications
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Low power consumption reduces energy usage in industrial systems
  • Durable materials and long bearing life minimize waste and replacement frequency
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK AFS60A-S1PM262144 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
