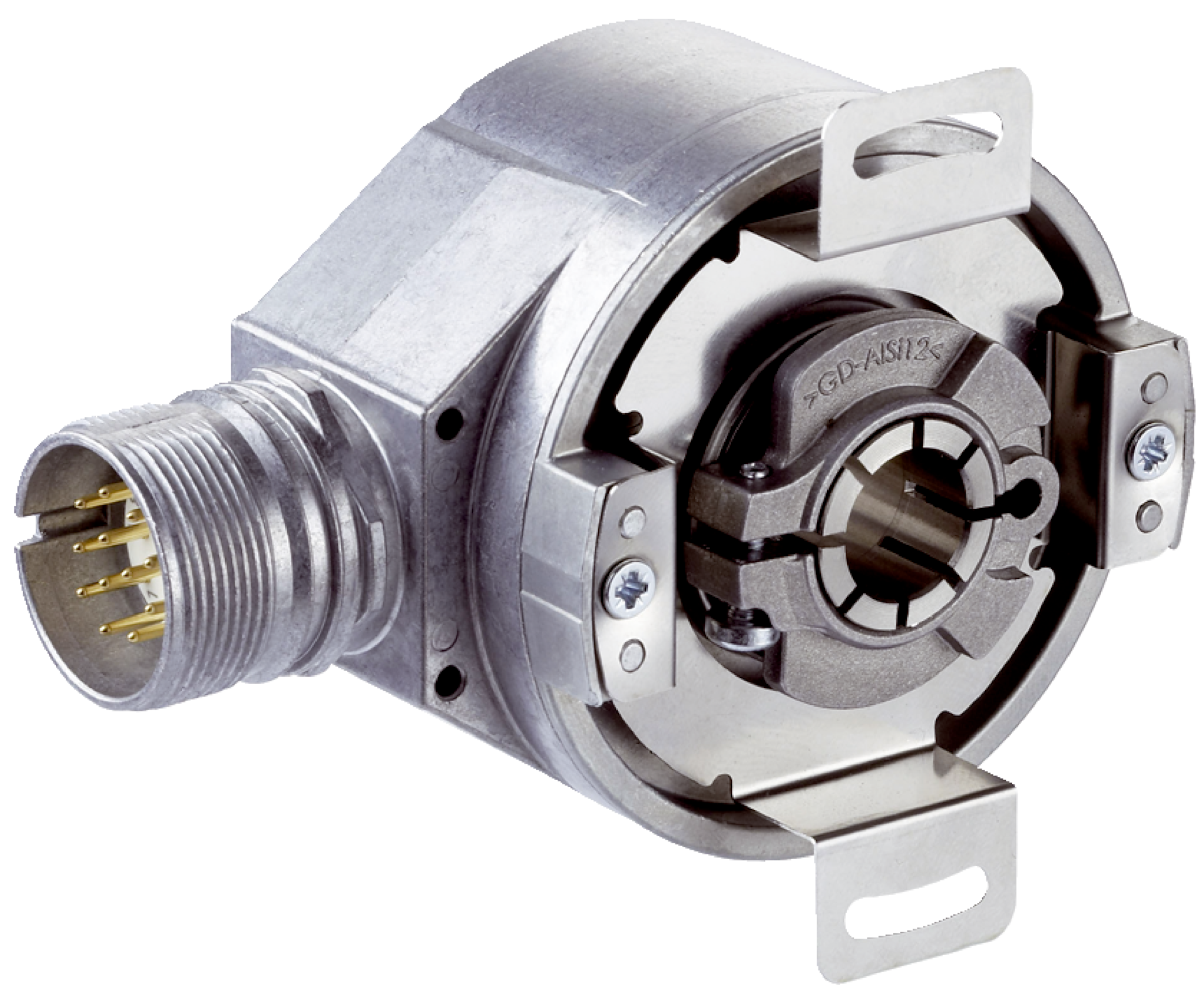

AFS60B-TGPA032768 | Absolute encoders
The SICK AFS60B-TGPA032768 absolute encoder offers high precision position measurement with a robust through hollow shaft design, suitable for demanding industrial and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AFS60B-TGPA032768 | Absolute encoders
Brand: SICK
SKU: 1057355
Alternatively Known As: Rotary encoder, SSI absolute encoder, high resolution encoder, through hollow shaft encoder
Technical Specifications
- MTTFD (mean time to dangerous failure): 250 years (EN ISO 13849-1)
- Maximum resolution: 32,768 steps per revolution (15 bit)
- Error limits G: 0.05°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray code
- Clock frequency: ≤ 2 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Through hollow shaft with 14 mm diameter
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start up torque: < 0.8 Ncm at +20 °C
- Operating torque: < 0.6 Ncm at +20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -40 °C to +100 °C
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 32,768 steps per revolution (15 bit)
- Robust through hollow shaft mechanical design with stainless steel shaft
- Low start-up torque less than 0.8 Ncm
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Fast initialization time of 50 ms and position forming time under 1 µs
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- Communication via SSI interface with adjustable code sequence parameters
- High mechanical durability with bearing lifetime of 3.0 x 10^9 revolutions
- Wide operating temperature range from -40 °C to +100 °C
- Certified with multiple international conformity declarations including EU, UK, ACMA, and cULus
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
- Industrial automation for precise position measurement
- Robotics requiring accurate shaft position feedback
- Machine tools and manufacturing equipment
- Safety-related systems requiring reliable encoder data
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFS60B-TGPA032768 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
