AGV Safety Laser Scanner System | 128 Configurable Fields | 4m Protective Range | SafeHDDM Technology | by SICK
The AGV Safety Laser Scanner System is designed for optimal safety in automated guided vehicles (AGVs), featuring 128 configurable fields and a protective range of 4 meters. With safeHDDM® technology and support for quick cornering and docking, this system enhances operational safety in industrial automation environments, making it ideal for factories and warehouses.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Variant: Safe AGV Easy 6
- Number of fields: 128
- Protective field range: 4 m
- Warning field range: 40 m
- safeHDDM® technology included
- Number of directions of travel: 2
- Switchable protective fields enabled
- Quick cornering and docking process supported

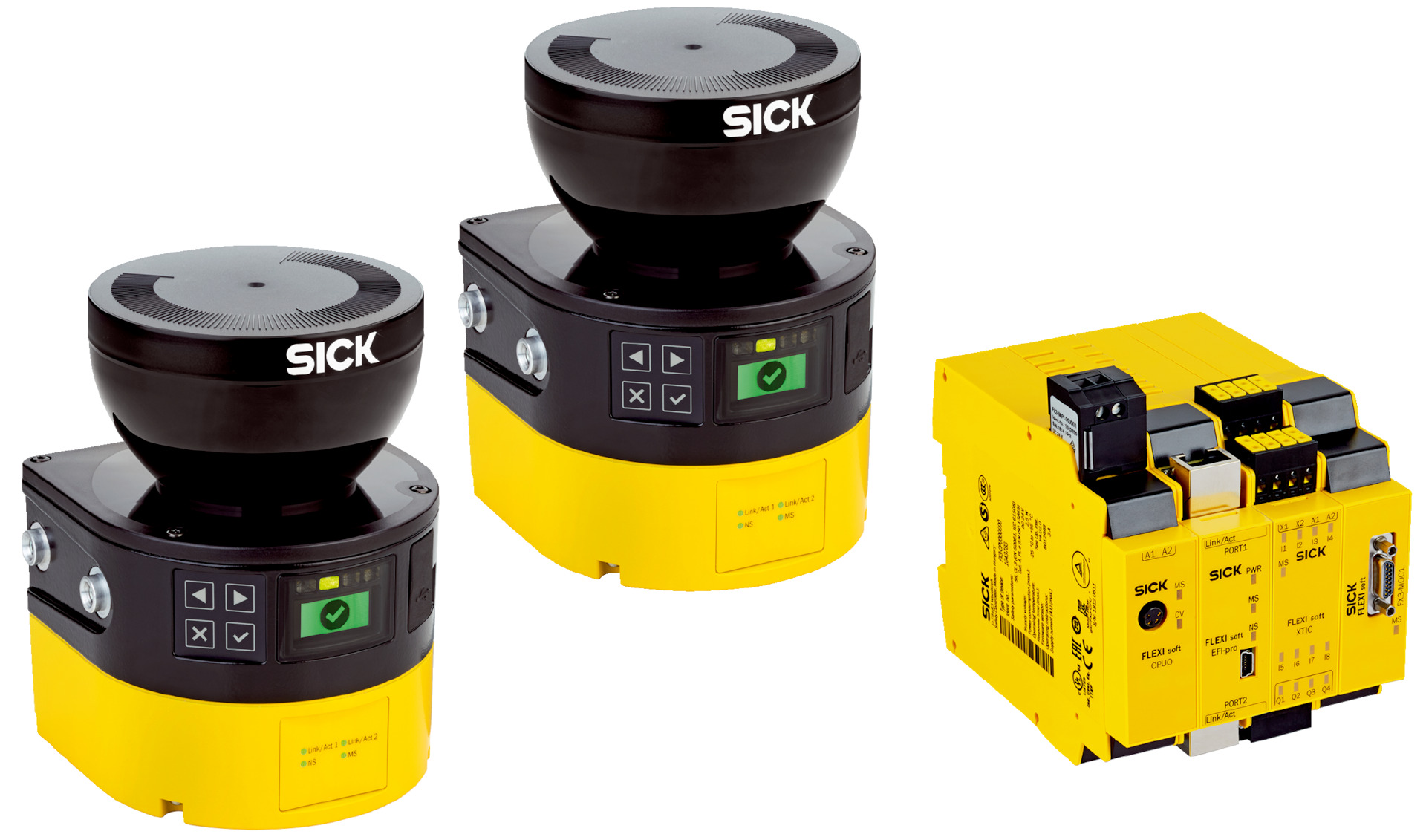

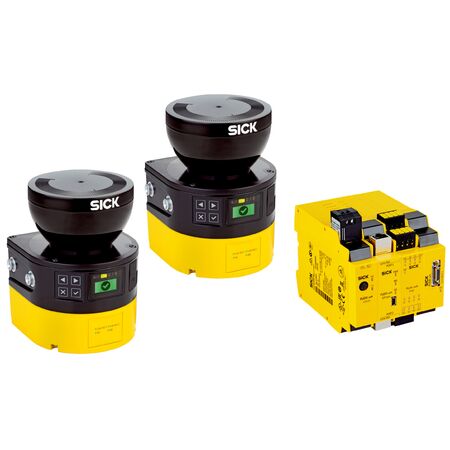

- Items supplied: 2 x microScan3 EFI-pro safety laser scanners with system plugs, Flexi Soft safety controller with CPU0 main module, system plug for CPU0, XTIO extension module, MOC1 motion control monitor extension module, EFI-Pro gateway
- Dimensions (H x L x W): 150mm x 400mm x 300mm
- Weight: 5 kg
Key Features
- Includes 2 microScan3 – EFI-pro safety laser scanners
- 128 configurable fields for safety and warning
- Protective field range of 4 meters
- Warning field range of 40 meters
- Supports safeHDDM® technology
- Operates with 2 directions of travel
- Switchable protective fields for flexible safety zones
- Quick cornering and docking process support
Professional Installation Requirements
- Installation and commissioning must be performed by qualified safety system professionals or certified technicians to ensure compliance with safety standards.
Applications
- Automated Guided Vehicles (AGVs) safety
- Industrial automation safety systems
- Factory and warehouse safety monitoring
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances operational safety reducing risk of accidents and associated environmental hazards
- Supports efficient automated vehicle operation reducing energy waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK Safe AGV Easy 6 Safety System is available for immediate purchase, ideal for industrial automation and AGV safety applications.
