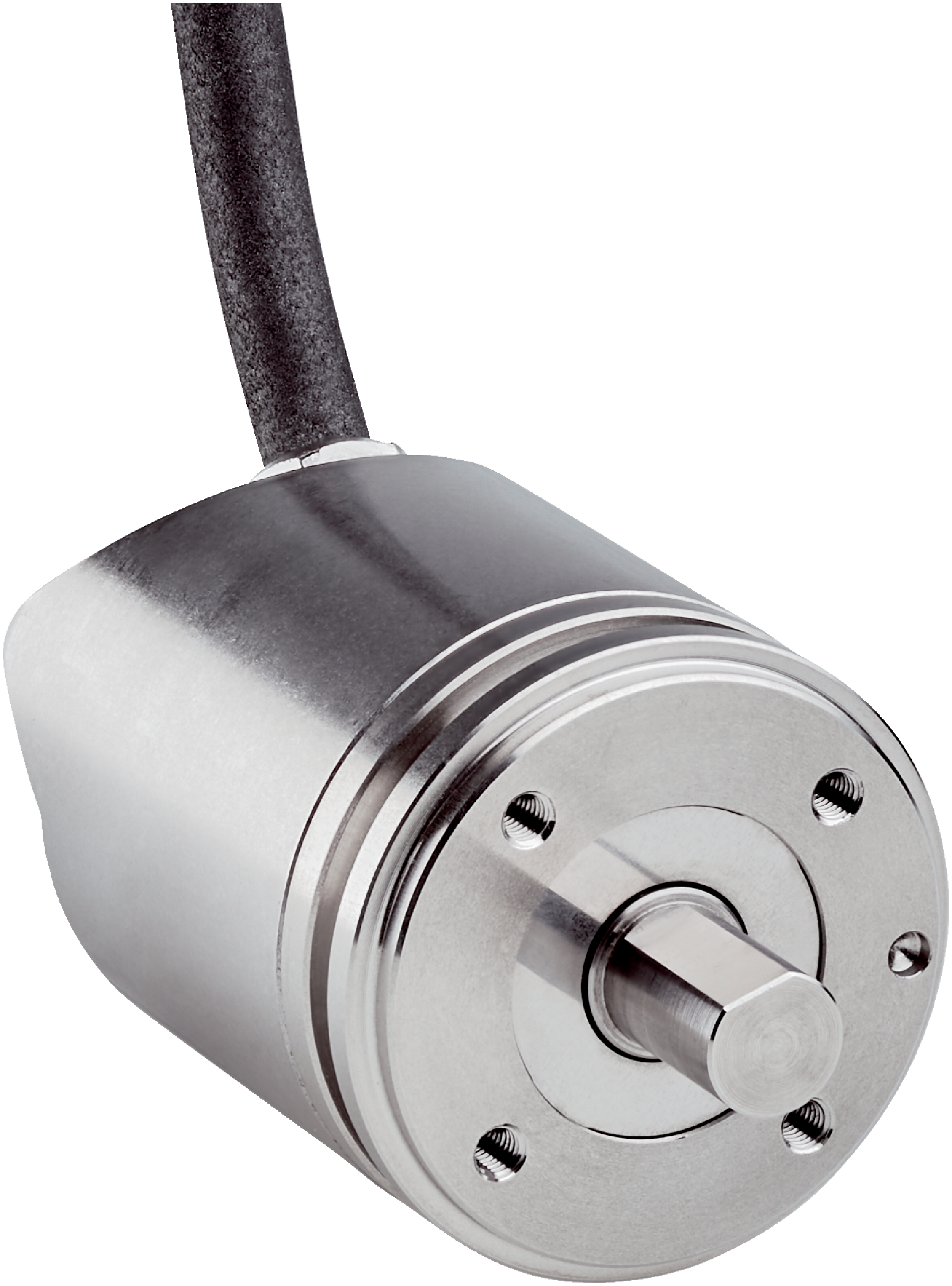

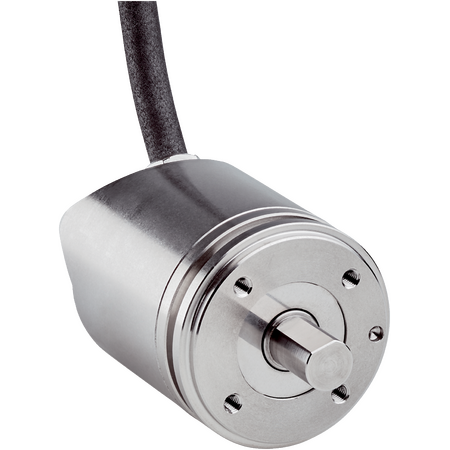

AHM36I-S1PJ014x12 | Absolute encoders
The SICK AHM36I-S1PJ014x12 Absolute Encoder offers high precision with 14-bit resolution per revolution and 12-bit revolutions, robust stainless steel construction, and IP67/IP69K protection, ideal for demanding industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AHM36I-S1PJ014x12 | Absolute encoders
Brand: SICK
SKU: 1099382
Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, High resolution encoder, Industrial position sensor
Technical Specifications
- MTTFD: 230 years (EN ISO 13849-1)
- Max resolution: 16,384 steps/rev (14 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.2° at 20 °C
- Communication interface: SSI
- Initialization time: 100 ms
- Position forming time: 125 µs
- Code type: Gray, binary
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W
- Shaft diameter: 6 mm with flat
- Operating speed: ≤ 6,000 min⁻¹
- Enclosure rating: IP67, IP69K
- Operating temperature range: -40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- Robust stainless steel housing and shaft for durability
- IP67 and IP69K rated for protection against dust and water
- Low start-up torque of 1 Ncm and operating torque less than 1 Ncm
- Reverse polarity protection and low power consumption (≤ 1.5 W)
- Fast initialization time of 100 ms and position forming time of 125 µs
- Supports SSI communication interface with configurable code types (Gray, binary)
- Long bearing lifetime of 3.6 x 10^8 revolutions
- Wide operating temperature range from -40 °C to +100 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate motion control
- Machine tools requiring high-resolution feedback
- Safety-related applications in manufacturing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption minimizes energy usage
- Long bearing lifetime reduces maintenance and material waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AHM36I-S1PJ014x12 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
