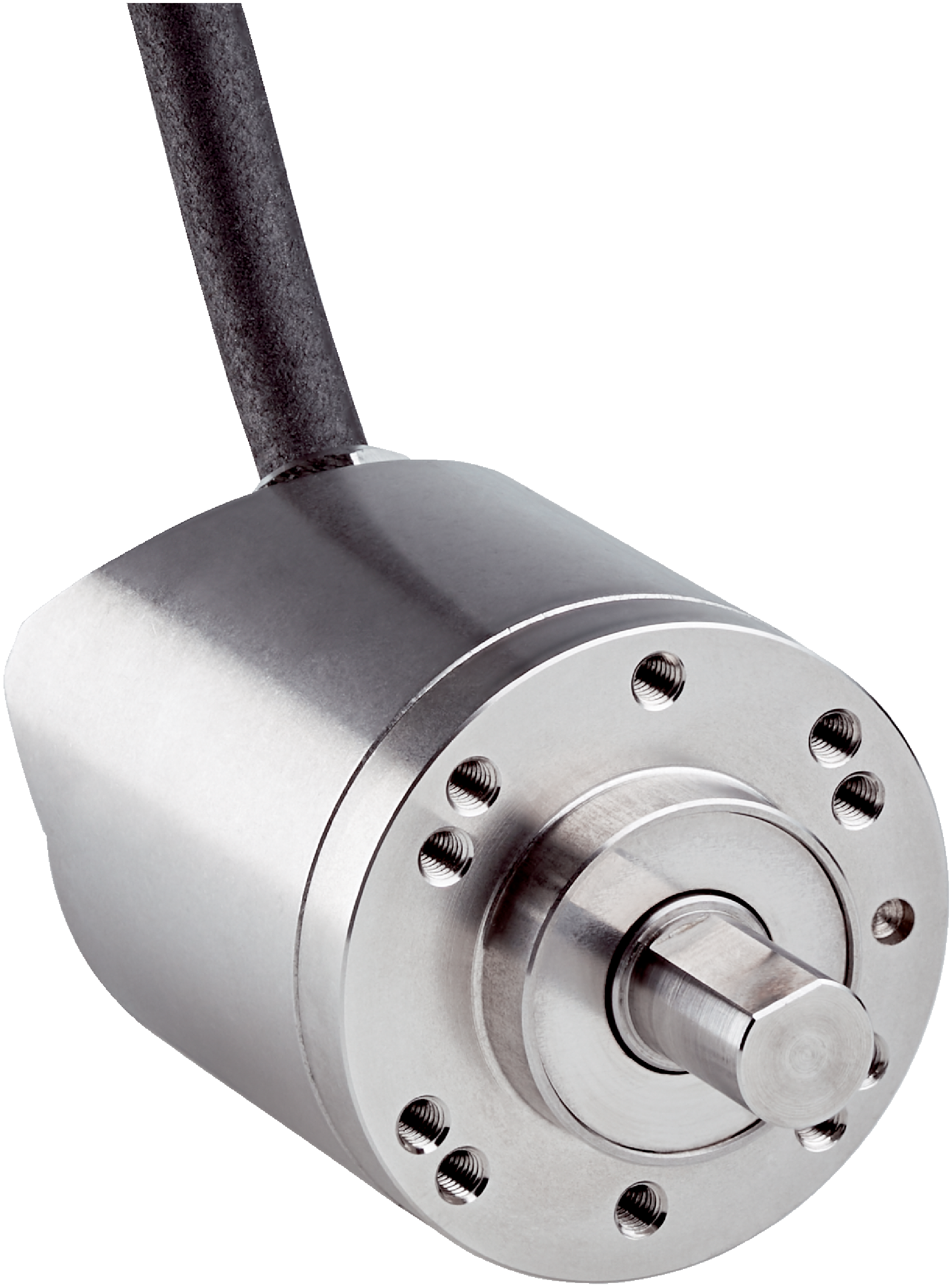

AHM36I-S3CK014x12 Absolute encoders

BRAND: SICK
SKU: 1099345
$2,483.50 List price: $3,121.50
+ −
30 Days Return Electricians Unlock Trade Access
The SICK AHM36I-S3CK014x12 absolute encoder offers high-resolution rotary position feedback with CANopen interface, robust stainless steel construction

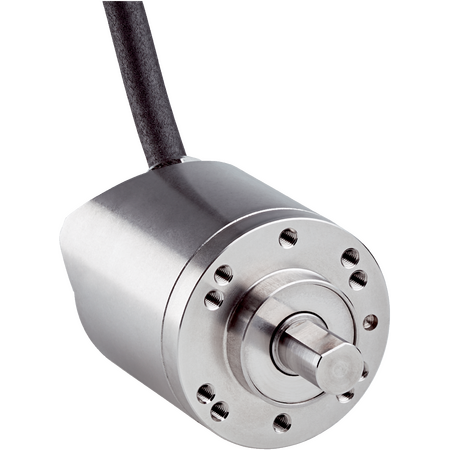

Product Name/Title: AHM36I-S3CK014x12 | Absolute encoders

Brand: SICK

SKU: 1099345

Alternatively Known As: Rotary Absolute Encoder, CANopen Encoder, High Resolution Encoder, Industrial Position Sensor

Technical Specifications
  • Resolution: 16,384 steps per revolution (14 bit) and 4,096 revolutions (12 bit)
  • Error limit: 0.35° at 20 °C
  • Repeatability standard deviation: 0.2° at 20 °C
  • Communication: CANopen CiA DS-301 V4.02, DSP-305 LSS, Encoder Profile CIA DS-406 V3.2 Class C2
  • Data transmission rate: 20 kbit/s to 1,000 kbit/s, default 125 kbit/s
  • Supply voltage: 10 to 30 V
  • Power consumption: ≤ 1.5 W without load
  • Mechanical design: Solid shaft, face mount flange, shaft diameter 6 mm with flat
  • Operating speed: up to 6,000 min⁻¹
  • Protection rating: IP67 and IP69K
  • Operating temperature range: –40 °C to +85 °C
  • Connection: 5-wire cable, 1.5 m length
  • Bearing lifetime: 3.6 x 10^8 revolutions
  • Dimensions (H x L x W): 36mm x 60mm x 36mm
  • Weight: 0.2 kg
Key Features
  • High resolution with 16,384 steps per revolution and 4,096 revolutions
  • CANopen communication interface with multiple diagnostic data
  • Robust stainless steel housing and shaft with IP67 and IP69K protection
  • Low power consumption ≤ 1.5 W and reverse polarity protection
  • High mechanical durability with bearing lifetime of 3.6 x 10^8 revolutions
  • Wide operating temperature range from –40 °C to +85 °C
  • Safety-related parameter MTTFD of 270 years according to EN ISO 13849-1
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with CANopen systems and electrical safety standards to ensure proper integration and compliance.
Applications
  • Industrial automation for precise position and speed measurement
  • Robotics requiring high-resolution rotary position feedback
  • Machine tools and manufacturing equipment
  • Safety-related applications requiring reliable encoder data
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable stainless steel construction extends product lifespan reducing waste
  • Low power consumption contributes to energy efficiency in industrial systems
  • High reliability reduces downtime and maintenance frequency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK AHM36I-S3CK014x12 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring precise rotary position feedback.
