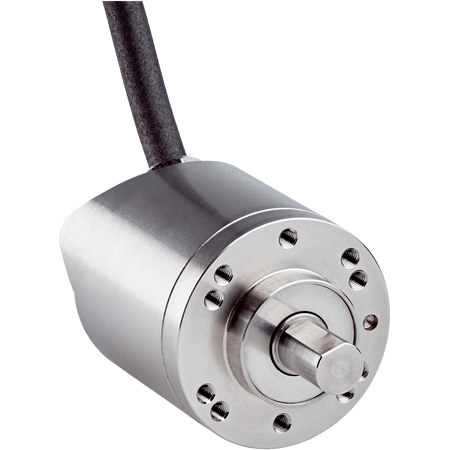

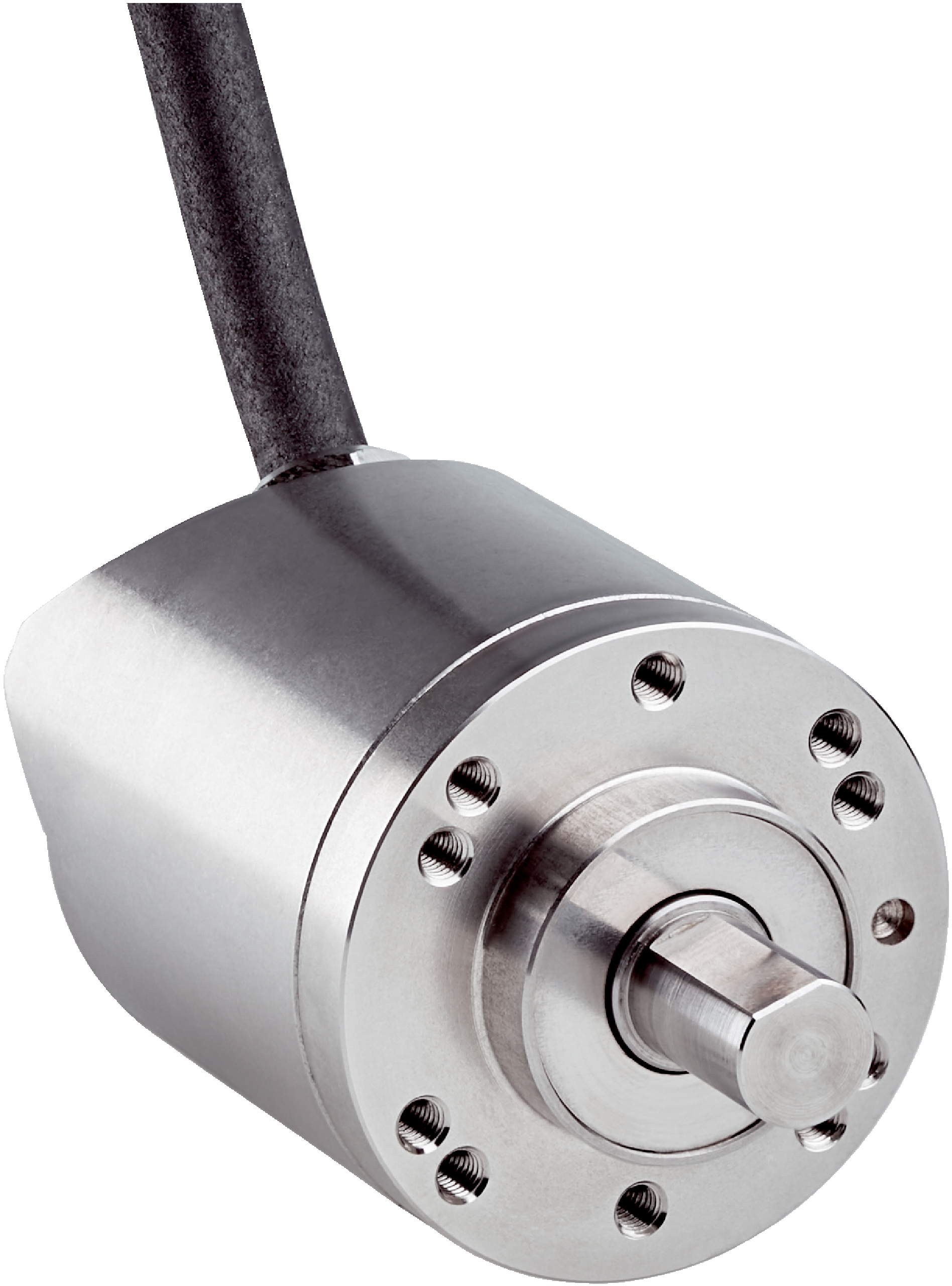

AHM36I-S3CM014x12 | Absolute encoders
The SICK AHM36I-S3CM014x12 is a high-precision absolute encoder featuring a solid stainless steel shaft, CANopen interface, and robust IP67/IP69K protection, ideal for industrial automation and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AHM36I-S3CM014x12 | Absolute encoders
Brand: SICK
SKU: 1099347
Alternatively Known As: Rotary encoder, Absolute rotary encoder, CANopen encoder, Industrial position sensor
Technical Specifications
- Resolution: 16,384 steps per revolution (14 bit) and 4,096 revolutions (12 bit)
- Error limit: 0.35° at 20°C
- Repeatability standard deviation: 0.2° at 20°C
- Communication: CANopen CiA DS-301 V4.02, DSP-305 LSS, Encoder Profile CIA DS-406 V3.2 Class C2
- Data transmission rate: 20 kbit/s to 1,000 kbit/s, default 125 kbit/s
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Mechanical design: Solid shaft, face mount flange, shaft diameter 6 mm with flat
- Operating speed: up to 6,000 min⁻¹
- Protection rating: IP67 and IP69K
- Operating temperature range: -40°C to +85°C
- Connection: 5-wire cable, 5 m length
- MTTFD: 270 years (EN ISO 13849-1)
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- Solid shaft with stainless steel housing and flange for durability
- CANopen communication interface with extensive diagnostics
- IP67 and IP69K rated for protection against dust and water
- Wide operating temperature range from -40°C to +85°C
- Low power consumption ≤ 1.5 W with reverse polarity protection
- High mechanical robustness with resistance to shocks and vibration
- Safety-related mean time to dangerous failure (MTTFD) of 270 years
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring high resolution rotary position feedback
- Machine tools and manufacturing equipment
- Safety-related applications with high reliability requirements
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption contributes to energy efficiency in industrial systems
- High reliability reduces downtime and maintenance frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AHM36I-S3CM014x12 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
