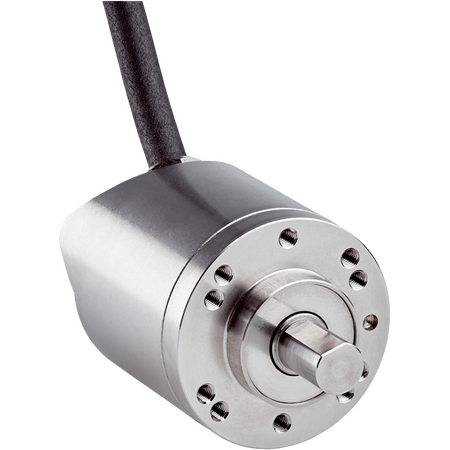

AHS36I-S3QK016384 | Absolute encoders
The SICK AHS36I-S3QK016384 is a high-precision absolute encoder featuring IO-Link communication, robust stainless steel construction, and advanced diagnostics, ideal for industrial automation and motion control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AHS36I-S3QK016384 | Absolute encoders
Brand: SICK
SKU: 1093793
Alternatively Known As: Absolute rotary encoder, IO-Link encoder, industrial position sensor, SICK encoder AHS36I
Technical Specifications
- Resolution: 16,384 steps per revolution (14 bit)
- Error limit: 0.35° at 20 °C
- Repeatability standard deviation: 0.2° at 20 °C
- Communication: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Supply voltage: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Connection: 4-wire cable, 1.5 m length
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 6 mm with flat
- Operating speed: ≤ 6,000 min⁻¹
- Operating temperature range: –40 °C to +85 °C
- Enclosure rating: IP67 and IP69K
- Bearing lifetime: 3.6 x 10^8 revolutions
- Permissible shaft loading: 40 N radial, 20 N axial
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution (14 bit)
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust stainless steel housing and shaft with IP67 and IP69K protection
- Low power consumption ≤ 1.5 W with reverse polarity protection
- High mechanical durability with bearing lifetime of 3.6 x 10^8 revolutions
- Wide operating temperature range from –40 °C to +85 °C
- Fast initialization time of 2 seconds and cycle time ≤ 3.2 ms
- Comprehensive diagnostics and status information via LED
- Supports electronic cams, limit values, and switching signals
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and mechanical mounting according to manufacturer guidelines and Australian electrical standards.
Applications
- Industrial automation for precise position and speed measurement
- Machine tool feedback systems
- Robotics and motion control
- Process control systems requiring high resolution and reliability
Standards & Compliance
- Complies with AS/NZS 61000 series for EMC standards
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption contributes to energy efficiency in industrial systems
- High reliability reduces downtime and maintenance needs
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AHS36I-S3QK016384 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
