Air Circuit Breaker 1250A 3P | 65kA | Motorized & Shunt Trip | TemPower 2 by NHP
Air circuit breaker with 1250A current and 65kA breaking capacity—ideal for industrial and commercial power distribution. Built for enhanced protection, with motorized operation and integrated shunt trip.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

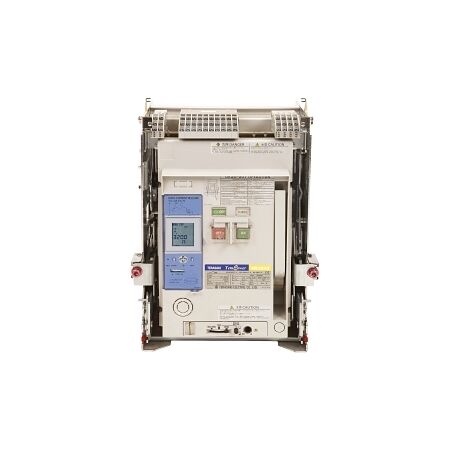

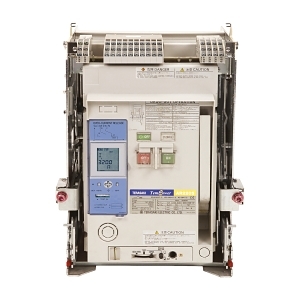

Product Name/Title: Terasaki TemPower 2 AR ACB Body AR2 65kA 1250A 3P with AGR21CL Shunt Trip and Motor 240V AC
Brand: NHP
SKU: ARB2123MSTD
Alternatively Known As: Terasaki ACB, Air Circuit Breaker, TemPower 2 ACB
Technical Specifications
- Rated Current: 1250 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 65 kA
- Type of Protection Trip Unit: Electronic release
- Rated Insulation Voltage: 1000 V
- Integrated Communication Function: Yes
- Motor Drive Integrated: Yes
- Power Loss: 350 W
- Short Time Withstand Current: 65 kA for 1 sec
- Mechanical Life: 15000 cycles
- Dimensions (H x L x W): 490mm x 385mm x 354mm
- Weight: 53 kg
Key Features
- Electronic release trip unit for enhanced protection.
- Integrated earth fault protection.
- Modbus RTU communication protocol for monitoring.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings requiring robust electrical protection
- General: Any application needing reliable circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Energy-efficient design reduces power loss and enhances operational efficiency.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemPower 2 AR ACB Body AR2 is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
