Air Circuit Breaker 1250A | 65kA Short Circuit | Motorized 3P | 240V AC by NHP
Air circuit breaker with 1250A rated current and 65kA short circuit capacity—ideal for industrial and commercial power distribution. Built for robust circuit protection, with motorized operation and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

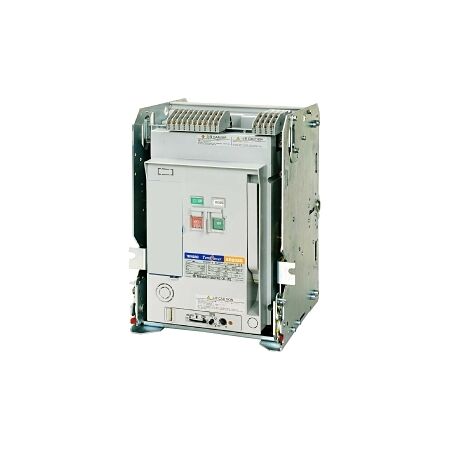

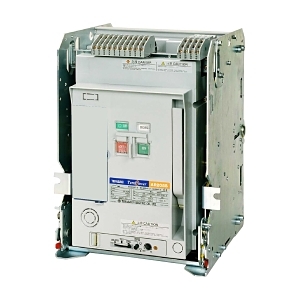

Product Name/Title: Terasaki TemPower 2 AR ACB Body AR2 65kA 1250A 3P Non Auto with Motor 240V AC
Brand: NHP
SKU: ARB2123NAMSTD
Alternatively Known As: Terasaki ACB, Air Circuit Breaker, TemPower 2 ACB
Technical Specifications
- Rated ultimate short circuit breaking capacity: 65 kA at 415 V, 50 Hz
- Rated insulation voltage: 1000 V
- Rated frequency: 50-60 Hz
- Electrical life: 12000 cycles
- Mechanical life: 15000 cycles
- Power loss: 350 W
- Pollution degree: 3
- Rated surrounding temperature: -5 to 60 °C
- Dimensions (H x L x W): 490mm x 385mm x 354mm
- Weight: 53 kg
Key Features
- Rated current: 1250 A
- Short circuit breaking capacity: 65 kA
- Non auto-switch trip unit
- Integrated motor drive
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings requiring robust circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information
Standard warranty applies, please check with the supplier for details.
Available Now
The Terasaki TemPower 2 AR ACB Body AR2 65kA 1250A 3P Non Auto with Motor 240V AC is available for immediate purchase.
Non-Returnable & Non-Cancellable
