Air Circuit Breaker 1600A | 65kA Short Circuit | Motorized 3P | 240V AC by NHP
Air circuit breaker with 1600A rated current and 65kA short circuit capacity—ideal for industrial and commercial power distribution. Built for robust electrical protection, with motorized 3P operation and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

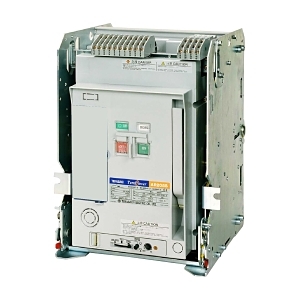

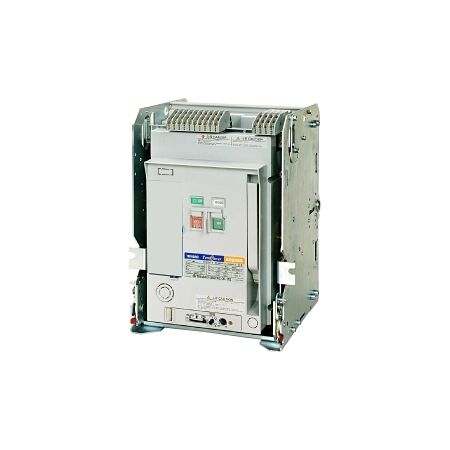

Product Name/Title: Terasaki TemPower 2 AR ACB Body AR2 65kA 1600A 3P Non Auto with Motor 240V AC
Brand: NHP
SKU: ARB2163NAMSTD
Alternatively Known As: Terasaki ACB, AR ACB Body, Air Circuit Breaker
Technical Specifications
- Rated ultimate short circuit breaking capacity: 65 kA at 415 V, 50 Hz
- Rated insulation voltage: 1000 V
- Rated frequency: 50-60 Hz
- Electrical life: 12000 cycles
- Mechanical life: 15000 cycles
- Over voltage category: IV
- Pollution degree: 3
- Maximum operating temperature: 60 °C
- Dimensions (H x L x W): 490mm x 385mm x 354mm
- Weight: 54 kg
Key Features
- Rated current: 1600 A
- 65 kA short circuit breaking capacity
- Non auto-switch trip unit
- Integrated motor drive
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings requiring robust electrical protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information
Standard warranty applies, please check with the supplier for details.
Available Now
The Terasaki TemPower 2 AR ACB Body AR2 65kA 1600A 3P Non Auto with Motor 240V AC is available now for immediate purchase. Ideal for industrial and commercial power distribution.
