Air Circuit Breaker 2000A 65kA | 3P with Shunt Trip | Modbus RTU by NHP
Air circuit breaker with 2000A rated current and 65kA short circuit capacity—ideal for industrial and commercial power distribution. Built for safety and efficiency, featuring Modbus RTU communication and integrated earth fault protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

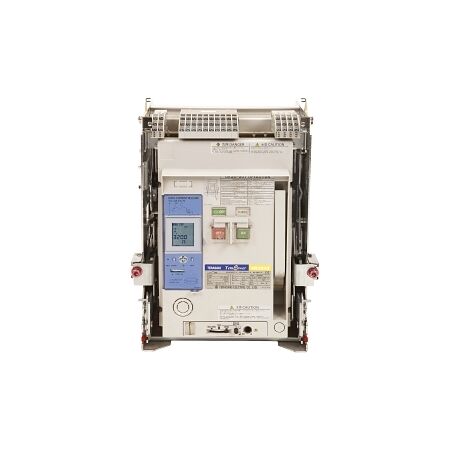

Product Name/Title: Terasaki TemPower 2 AR ACB Body AR2 65kA 2000A 3P with AGR21CL and Shunt Trip
Brand: NHP
SKU: ARB2203STD
Alternatively Known As: Terasaki ACB, Air Circuit Breaker, TemPower 2 ACB
Technical Specifications
- Rated ultimate short circuit breaking capacity: 65 kA at 415 V, 50 Hz
- Rated insulation voltage: 1000 V
- Rated frequency: 50-60 Hz
- Integrated communication function: Yes
- Power loss per pole: 164 W
- Electrical life: 10,000 cycles
- Mechanical life: 12,000 cycles
- Maximum operating temperature: 60 °C
- Pollution degree: 3
- Dimensions (H x L x W): 490mm x 385mm x 354mm
- Weight: 54 kg
Key Features
- Rated current: 2000 A
- Short circuit breaking capacity: 65 kA
- Electronic release trip unit with LSIG curve
- Integrated earth fault protection
- Modbus RTU communication protocol
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Large buildings and facilities
- General: Electrical safety and protection in various environments
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high efficiency and reliability in power distribution.
Warranty Information
Standard warranty applies, please check with the manufacturer for specific terms.
Available Now
The Terasaki TemPower 2 AR ACB Body AR2 65kA 2000A 3P with AGR21CL and Shunt Trip is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
