Air Circuit Breaker 2000A 65kA | Shunt Trip & Motor | 3P 240V by NHP
Air circuit breaker with 2000A current and 65kA short circuit capacity—ideal for industrial and commercial power distribution. Built for safety and efficiency, featuring shunt trip, motor operation, and Modbus RTU communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

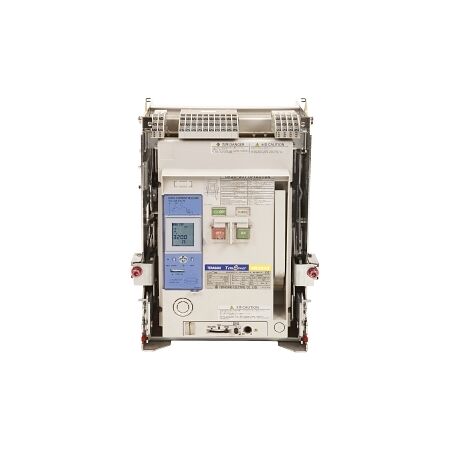

Product Name/Title: Terasaki TemPower 2 AR ACB Body AR2 65kA 2000A 3P with AGR21CL Shunt Trip and Motor 240V AC
Brand: NHP
SKU: ARB2203MSTD
Alternatively Known As: Terasaki ACB, Air Circuit Breaker, TemPower 2 ACB
Technical Specifications
- Rated ultimate short circuit breaking capacity: 65 kA at 415 V, 50 Hz
- Rated insulation voltage: 1000 V
- Rated frequency: 50-60 Hz
- Integrated communication function: Yes
- Power loss per pole: 164 W
- Electrical life: 10,000 cycles
- Mechanical life: 12,000 cycles
- Maximum operating temperature: 60 °C
- Allowable relative humidity: 45-85 %
- Dimensions (H x L x W): 490mm x 385mm x 354mm
- Weight: 54 kg
Key Features
- Rated current: 2000 A
- Short circuit breaking capacity: 65 kA
- Electronic release trip unit with LSIG curve
- Integrated earth fault protection
- Modbus RTU communication protocol
- Withdrawable air circuit breaker design
Professional Installation Requirements
- Professional installation by a qualified electrician is required for optimal safety and compliance.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings and infrastructure requiring robust circuit protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety and performance.
Environmental Benefits
- Designed for high efficiency and reduced energy loss.
Warranty Information
Standard warranty applies, please check with the manufacturer for specific terms.
Available Now
The Terasaki TemPower 2 AR ACB Body AR2 65kA 2000A 3P with AGR21CL Shunt Trip and Motor 240V AC is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
