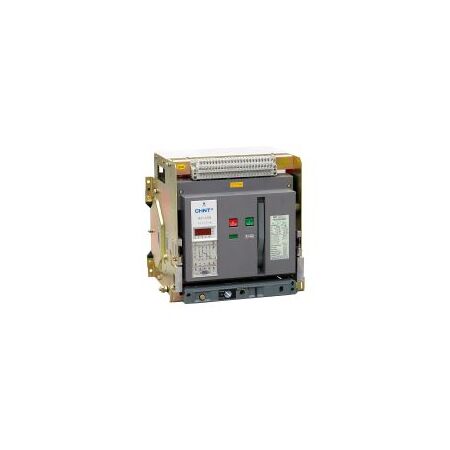

Air Circuit Breaker 2500A 3P Fixed 3200 Frame NH1 Chint

BRAND: CABAC
SKU: 885479
$12,536.80 List price: $16,715.70
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
Chint NH1 air circuit breaker features 2500A 3P, 3200A frame, fixed type, 400/690V to IEC/EN 60947-2. Ideal for main incomers in industrial switchboards.

Alternatively Known As: CHINT NH1-3200 ACB, 2500A Air Circuit Breaker, 3-Phase Main Circuit Breaker, Industrial ACB

Technical Specifications
  • Rated Current: 2500A
  • Frame Size: 3200A
  • Number of Poles: 3P
  • Mounting Type: Fixed
  • Rated Operational Voltage: 400/690V AC
  • Frequency: 50/60Hz
  • Protection Functions: Overload, short-circuit, undervoltage and single-phase earth-fault protection
  • Application: Main incomer and high-capacity power distribution
  • Product Standard: IEC/EN 60947-2
  • Operating Environment: Industrial low-voltage switchboards
  • Dimensions (H x L x W): 402mm x 389mm x 422mm
  • Weight: 52 kg
Key Features
  • 2500A rated current with a 3200A frame size
  • Three-pole configuration for three-phase power distribution
  • Fixed installation format for switchboard mounting
  • Suitable for 400V and 690V AC systems
  • Designed for selective and reliable protection of high-capacity electrical systems
  • Provides overload, short-circuit, undervoltage and earth-fault protection
  • Suitable for power stations, factories, mines and high-rise buildings
Professional Installation Requirements
  • Installation, commissioning and maintenance must be performed by a licensed electrical contractor or suitably qualified electrical professional. The equipment must be installed, selected and coordinated in accordance with AS/NZS 3000, the switchboard manufacturer's requirements and applicable electrical safety regulations.
Applications
  • Industrial switchboard main incomers
  • Low-voltage power distribution systems
  • Factories and manufacturing facilities
  • Power stations and utility distribution equipment
  • Mining and heavy industrial installations
  • High-rise commercial building switchboards
Standards & Compliance
  • AS/NZS 60947-2 for low-voltage circuit-breakers
  • AS/NZS 3000 for selection, installation and coordination within electrical installations
Environmental Benefits
  • Supports long service life in industrial power distribution applications, reducing replacement waste
  • Enables selective fault protection that can help limit equipment damage and reduce unnecessary replacement
  • Metallic components are suitable for recovery and recycling at end of service life
Warranty Information

CHINT's general policy for other low-voltage apparatus provides a 27-month warranty from the date of manufacture against defects in materials and workmanship when supplied through authorised sales channels; contract terms may vary.

Available Now

Available through authorised CHINT distributors in Australia.
