Air Circuit Breaker 2500A | 85kA Short Circuit | Motorized | 3P by NHP
Air circuit breaker with 2500A rated current and 85kA short circuit capacity—ideal for industrial and commercial power distribution. Built for reliability, with motorized operation and withdrawable design for easy maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

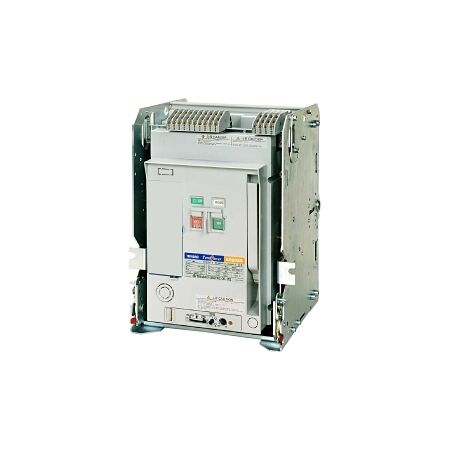

Product Name/Title: Terasaki TemPower 2 AR ACB Body AR3 85kA 2500A 3P Non Auto with Motor 240V AC
Brand: NHP
SKU: ARB3253NAMSTD
Alternatively Known As: Terasaki ACB, Air Circuit Breaker, TemPower 2 ACB
Technical Specifications
- Rated ultimate short circuit breaking capacity: 85 kA at 415 V, 50 Hz
- Rated insulation voltage: 1000 V
- Rated frequency: 50-60 Hz
- Electrical life: 7000 cycles
- Mechanical life: 10000 cycles
- Over voltage category: IV
- Rated surrounding temperature without derating: 55 °C
- Maximum operating temperature: 60 °C
- Allowable relative humidity: 45-85 %
- Max altitude before derating: 2000 m
- Dimensions (H x L x W): 490mm x 385mm x 460mm
- Weight: 80 kg
Key Features
- Rated current: 2500 A
- 85 kA short circuit breaking capacity
- Non auto-switch trip unit
- Integrated motor drive
- Withdrawable air circuit breaker design
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in large facilities
- Commercial: Electrical systems in commercial buildings
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Designed for high efficiency, reducing energy loss during operation.
Warranty Information
Standard warranty terms apply.
Available Now
The Terasaki TemPower 2 AR ACB Body AR3 is available now for immediate purchase. Ideal for industrial and commercial power distribution systems.
Non-Returnable & Non-Cancellable
