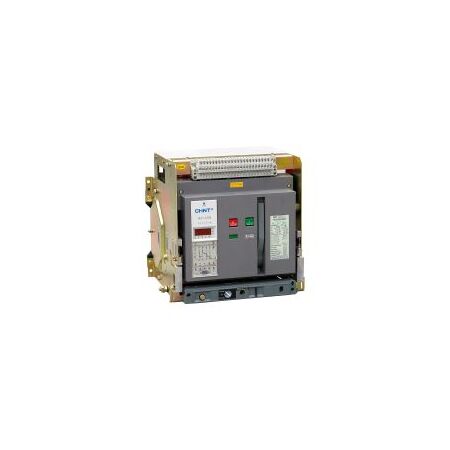

Air Circuit Breaker 3200A 3P Fixed 3200 Frame NH1 Chint

BRAND: CABAC
SKU: 885484
$12,941.20 List price: $17,254.90
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
Chint NH1 air circuit breaker features 3200A 3P, 3200A frame, fixed type, 400/690V to IEC/EN 60947-2. Ideal for main incomers in industrial switchboards.

Alternatively Known As: CHINT NH1-3200 ACB, 3200A Frame Air Circuit Breaker, Fixed Main Incomer Breaker

Technical Specifications
  • Series: NH1
  • Frame Size: 3200A
  • Rated Current: 3200A
  • Number of Poles: 3P
  • Installation Type: Fixed
  • Rated Operational Voltage: AC 400/690V
  • Frequency: 50/60Hz
  • Application: Main incomer and power distribution protection
  • Applicable Product Standard: IEC/EN 60947-2
  • Connection: Horizontal or vertical connection options, configuration dependent
  • Protection Functions: Overload, short-circuit, under-voltage and earth-fault protection, configuration dependent
  • Dimensions (H x L x W): 402mm x 389mm x 422mm
  • Weight: 56.5 kg
Key Features
  • 3200A continuous current rating for high-capacity power distribution
  • Three-pole configuration for industrial switchboards
  • Fixed mounting format for permanent switchboard installation
  • Suitable for main incomer and large commercial or industrial distribution applications
  • Designed for systems operating at up to 690V AC
  • Air-break construction supports switching and circuit isolation
  • Protection and control accessories can be selected according to the installation design
Professional Installation Requirements
  • Installation, testing and commissioning must be performed by a licensed electrician or suitably qualified switchboard professional. Confirm fault level, discrimination, protection settings, busbar arrangements, clearances and local electrical approval requirements before energisation.
Applications
  • Industrial switchboard main incomers
  • Commercial building power distribution
  • Factory and manufacturing power systems
  • Power stations and large electrical distribution boards
  • High-capacity feeder and busbar protection
  • Low-voltage systems requiring fixed 3-pole air circuit breaker protection
Standards & Compliance
  • Applicable Australian and New Zealand product standard: AS/NZS IEC 60947.2:2015 for low-voltage circuit-breakers
  • The product description specifies IEC/EN 60947-2; confirm the specific unit's Australian certification, RCM status and installation suitability before use
Environmental Benefits
  • Copper, aluminium and steel components can be recovered and recycled at end of service life
  • Long mechanical and electrical service life can reduce replacement frequency and equipment waste
  • Supports reliable power distribution and selective fault protection, helping reduce damage to downstream electrical equipment
Warranty Information

CHINT warranty policy specifies 27 months from the date of manufacture for other low-voltage apparatus sold through authorised sales channels, unless the supply contract specifies different terms. Warranty conditions exclude issues arising from improper installation, misuse, unauthorised modification or non-approved accessories.

Available Now

Available through authorised CHINT distributors in Australia.
