Air Circuit Breaker 3200A | 85kA Short Circuit | Motorized | 3P by NHP
Air circuit breaker with 3200A rated current and 85kA short circuit capacity—ideal for industrial and commercial power distribution. Built for robust circuit protection, with motorized operation and non-auto switch trip unit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

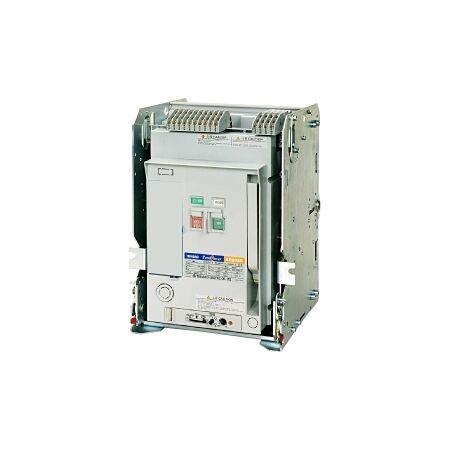

Product Name/Title: Terasaki TemPower 2 AR ACB Body AR3 85kA 3200A 3P Non Auto with Motor 240V AC
Brand: NHP
SKU: ARB3323NAMSTD
Alternatively Known As: Terasaki ACB, Air Circuit Breaker, TemPower 2 ACB
Technical Specifications
- Rated ultimate short circuit breaking capacity: 85 kA at 415 V, 50 Hz
- Rated insulation voltage: 1000 V
- Rated frequency: 50-60 Hz
- Electrical life: 7000 cycles
- Mechanical life: 10000 cycles
- Over voltage category: IV
- Pollution degree: 3
- Maximum operating temperature: 60 °C
- Allowable relative humidity: 45-85 %
- Dimensions (H x L x W): 490mm x 385mm x 460mm
- Weight: 80 kg
Key Features
- Rated current: 3200 A
- 85 kA short circuit breaking capacity
- Non auto-switch trip unit
- Integrated motor drive
- Suitable for isolation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings requiring robust circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient power management reduces energy waste.
- Long mechanical life contributes to sustainability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemPower 2 AR ACB Body AR3 85kA 3200A 3P Non Auto with Motor 240V AC is available now for immediate purchase. Ideal for industrial and commercial power distribution.
