Air Circuit Breaker 4000A | 100kA Short Circuit | 3P Withdrawable | 240V Motor by NHP
Air circuit breaker with 4000A rated current and 100kA short circuit capacity—ideal for industrial and commercial power distribution. Built for high-capacity circuit protection, with Modbus RTU communication and withdrawable design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

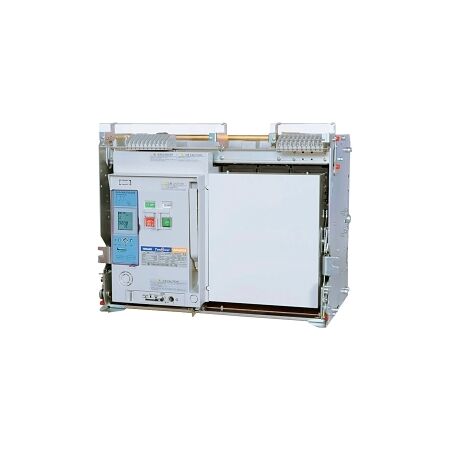

Product Name/Title: Terasaki TemPower 2 AR ACB Body AR4 100kA 4000A 3P with AGR21CL Shunt Trip and Motor 240V AC
Brand: NHP
SKU: ARB4403MSTD
Alternatively Known As: Terasaki ACB, Air Circuit Breaker, TemPower 2 ACB
Technical Specifications
- Number of poles: 3
- Max rated operation voltage: 690 V
- Rated insulation voltage: 1000 V
- Rated frequency: 50-60 Hz
- Integrated communication function: Yes
- Motor drive integrated: Yes
- Power loss per pole: 354 W
- Electrical life: 3000 cycles
- Mechanical life: 8000 cycles
- Pollution degree: 3
- Rated surrounding temperature: 45 °C
- Maximum operating temperature: 60 °C
- Dimensions (H x L x W): 490mm x 428mm x 631mm
- Weight: 114 kg
Key Features
- Rated current: 4000 A
- Short circuit breaking capacity: 100 kA
- Electronic release with integrated earth fault protection
- Modbus RTU communication protocol
- Withdrawable air circuit breaker design
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings and infrastructure
- General: Any application requiring high-capacity circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient power management reduces energy waste.
- Long mechanical life minimizes the need for replacements.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemPower 2 AR ACB Body AR4 100kA 4000A 3P with AGR21CL Shunt Trip and Motor 240V AC is available now for immediate purchase. Ideal for industrial and commercial power distribution.
