Air Circuit Breaker 4000A | 100kA Short Circuit | Non Auto | 3P by NHP
Air circuit breaker with 4000A rated current and 100kA short circuit capacity—ideal for industrial and commercial power distribution. Built for robust circuit protection, with non-auto switch trip unit for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

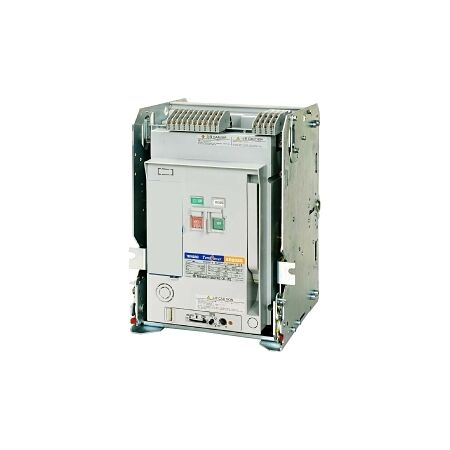

Product Name/Title: Terasaki TemPower 2 AR ACB Body AR4 100kA 4000A 3P Non Auto
Brand: NHP
SKU: ARB4403NASTD
Alternatively Known As: Terasaki ACB, Air Circuit Breaker, TemPower 2 ACB
Technical Specifications
- Rated ultimate short circuit breaking capacity: 100 kA at 415 V, 50 Hz
- Rated insulation voltage: 1000 V
- Rated frequency: 50-60 Hz
- Electrical life: 3000 cycles
- Mechanical life: 8000 cycles
- Power loss: 1060 W
- Maximum operating temperature: 60 °C
- Allowable relative humidity: 45-85 %
- Dimensions (H x L x W): 490mm x 428mm x 631mm
- Weight: 114 kg
Key Features
- Rated current: 4000 A
- Short circuit breaking capacity: 100 kA
- Non auto-switch trip unit
- Suitable for isolation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings requiring robust circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information
Standard warranty terms apply.
Available Now
The Terasaki TemPower 2 AR ACB Body AR4 100kA 4000A 3P Non Auto is available for immediate purchase, ideal for industrial and commercial power distribution.
