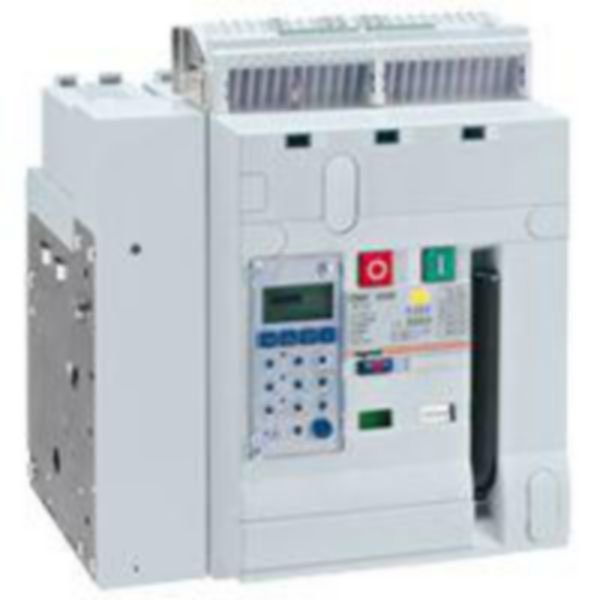

Air Circuit Breaker DMX³2500 | 2500A Rated Current | 65kA Breaking Capacity | Fixed Built-In Design | @EA of 1 | by Legrand
The Air Circuit Breaker DMX³2500 is engineered for high power industrial electrical installations, featuring a robust 2500A rated current and a breaking capacity of 65kA at 400V. With integrated earth fault protection and a fixed built-in design, it ensures reliable circuit protection for switchboards and power cabinets. Ideal for commercial and industrial applications, this breaker supports efficient energy management and safety compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated permanent current Iu: 2500 A
- Rated voltage: 230-690 V
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz: 65 kA
- Overload release current setting: 1000-2500 A
- Adjustment range short-term delayed short-circuit release: 1500-25000 A
- Adjustment range undelayed short-circuit release: 5000-65000 A
- Device construction: Fixed built-in technique
- Integrated earth fault protection: Yes
- Number of auxiliary contacts as normally closed contact: 4
- Number of auxiliary contacts as change-over contact: 4
- With switched-off indicator: Yes
- With integrated under voltage release: No
- Number of poles: 3
- Position of connection for main current circuit: Back side
- Type of control element: Push button
- Complete device with protection unit: Yes
- Motor drive integrated: Yes
- Motor drive optional: Yes
- Degree of protection (IP): IP30
- Dimensions (H x L x W): 400mm x 250mm x 300mm
- Weight: 50 kg
Key Features
- Breaking capacity of 65kA at 400 V, 50 Hz
- Rated permanent current of 2500 A
- Fixed built-in device construction
- Integrated earth fault protection
- Supplied with 1 fault signalling contact NO/NC and 4 auxiliary contacts NO/NC
- Motor drive integrated and optional
- Push button type control element
- Degree of protection IP30
- Can be equipped with undervoltage and shunt releases, auxiliary contacts, motor operator, and locking accessories
- Convertible to draw-out version with conversion base
Professional Installation Requirements
- Installation must be performed by a qualified electrician with experience in high power industrial circuit breakers. Must be equipped with electronic protection unit type MP4 or MP6, ordered together for factory assembly.
Applications
- Industrial electrical installations requiring high power protection
- Low voltage electrical installation origins
- Switchboards and power cabinets in commercial and industrial facilities
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances plant energy efficiency by ensuring continuity of service
- Supports green aspects through robust and reliable electrical protection
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Legrand Air Circuit Breaker DMX³2500 is available for immediate purchase, ideal for high power industrial electrical installations requiring reliable and robust circuit protection.
