Air Transfer Kit 150mm Inline Fan 6m Duct White Ventair

BRAND: Ventair
SKU: AIRTK150
$226.90 List price: $302.50
+ −
30 Days Return Electricians Unlock Trade Access

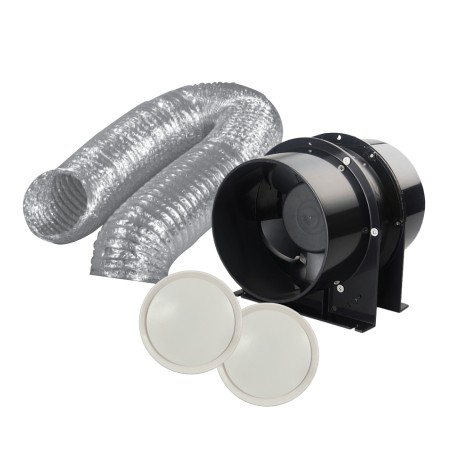

Ventair air transfer kit with 150mm inline exhaust fan, 6m flexible aluminium ducting and 2x white round inlet/outlet vents. White finish.

Alternatively Known As: Ventair Air Transfer Kit, 150mm Inline Exhaust Fan Kit, Warm and Cool Air Transfer Kit

Technical Specifications
  • Model: VATK150
  • Colour: White
  • Motor Power: 25W
  • Air Delivery: 250m³/h
  • Noise Level: 41dB(A)
  • Motor Type: Long-life ball-bearing motor
  • Duct Outlet: 150mm diameter
  • Ducting: 6m flexible aluminium duct
  • Power Input: 220–240V, 50Hz
  • Ingress Protection: IPX4
  • Minimum Installation Depth: 200mm
  • Installation: DIY plug and lead
  • Contents: Inline fan, two adjustable air vents and 6m aluminium ducting
  • Dimensions (H x L x W): 206mm x 186mm x 206mm
  • Weight: 2.8 kg
Key Features
  • Designed for warm or cool air transfer between rooms
  • 150mm inline exhaust fan supplied with 6m flexible aluminium ducting
  • Two adjustable white round inlet and outlet vents included
  • Long-life ball-bearing motor
  • Low operating noise of 41dB(A)
  • IPX4-rated fan housing for protection against water splashes
  • Plug-and-lead connection for straightforward installation
Professional Installation Requirements
  • The supplied plug-and-lead connection is suitable for installation where permitted. Any fixed wiring, wall-switch connection or alteration to the electrical supply must be completed by a licensed electrician in accordance with AS/NZS 3000. Install ductwork so discharged air is directed outdoors where required by the applicable building regulations.
Applications
  • Transferring warm air from heated rooms
  • Transferring cool air from air-conditioned rooms
  • Room-to-room air circulation in residential buildings
  • Ventilation of laundries, utility rooms and other enclosed spaces
  • Suitable commercial and light-industrial air transfer applications
Standards & Compliance
  • AS/NZS 3000 applies to any fixed electrical wiring or connection work
  • Mechanical ventilation design and installation should consider AS 1668.2 and applicable National Construction Code requirements
Environmental Benefits
  • 25W motor supports comparatively low operating energy consumption
  • Aluminium ducting can be recycled where suitable recycling facilities accept it
  • Ball-bearing motor construction supports extended service life and may reduce replacement waste
  • Transfers air without using refrigerants
Warranty Information

Covered by Ventair warranty provisions against manufacturing defects. Warranty duration is product-specific; Ventair exhaust fan warranty terms commonly provide up to five years for eligible models, while commercial use may be subject to a shorter period. Warranty conditions require correct installation and use.

Available Now

Available through authorised Ventair distributors in Australia.

Exhaust Fan Airflow Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
