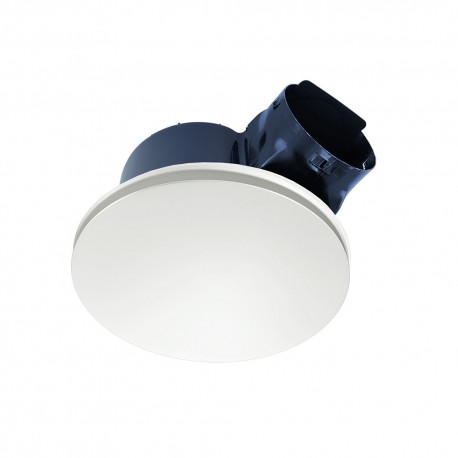

Airbus EC 200 Exhaust Fan Round White Ventair
Airbus EC 200 Energy Efficient Exhaust Fan Round White by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair PVPXEC200RD, Airbus EC 200 White Round Exhaust Fan, Energy Efficient Ceiling Exhaust Fan
Technical Specifications
- Model Number: PVPXEC200RD
- Motor Type: Energy-efficient EC motor with ball bearings
- Motor Power: Boost 24W; Run 14W; 24/7 3W
- Air Delivery: Boost 245m³/h; Run 180m³/h; 24/7 65m³/h
- Noise Level: Boost 37dB(A); Run 30dB(A); 24/7 28dB(A)
- Duct Outlet: 100mm diameter side outlet
- Cut-Out Size: 240mm diameter
- Fascia Size: 265mm diameter
- Mounting: Ceiling
- Ingress Protection: IPX4
- Power Input: 220–240V AC, 50Hz
- Installation Connection: Plug and lead
- Controls: Wireless wall controller included
- Light: No light included
- Draft Stopper: Included
- Dimensions (H x L x W): 170mm x 265mm x 265mm
- Weight: 1.5 kg
Key Features
- Three-speed energy-efficient EC motor
- Continuous 24/7 trickle ventilation mode
- Boost mode for rapid steam and odour removal
- Run mode for general ventilation
- Designed to maintain airflow with extended ducting
- Wireless wall controller included
- Round white fascia suitable for bathrooms, ensuites, powder rooms, toilets and laundries
- Ball-bearing motor for reliable continuous operation
- IPX4-rated construction for damp-area applications
Professional Installation Requirements
- Installation should be completed by a licensed electrician in accordance with the manufacturer’s instructions and AS/NZS 3000. Exhaust air should be ducted to outdoor air in accordance with applicable NCC and AS 1668.2 requirements.
Applications
- Bathrooms and ensuites
- Powder rooms and toilets
- Domestic laundries
- Continuous moisture and odour control in residential areas
Standards & Compliance
- AS/NZS 3000:2018 electrical installation requirements apply to the connection and installation.
- AS 1668.2:2024 mechanical ventilation requirements apply where relevant to system design, airflow and exhaust discharge.
- NCC ventilation and condensation-management provisions apply to the installation and discharge of bathroom, sanitary-compartment and laundry exhaust air.
Environmental Benefits
- EC motor uses only 3W in continuous 24/7 ventilation mode, helping reduce ongoing electricity consumption.
- Continuous low-energy ventilation can help control moisture and reduce mould-related deterioration in bathrooms and laundries.
- Ball-bearing motor construction supports extended service life and may reduce replacement waste.
- Efficient ventilation can help maintain indoor air quality with lower operating energy than less efficient motor designs.
Warranty Information
5-year domestic warranty and 1-year commercial warranty, subject to Ventair warranty terms and correct installation by a licensed electrician.
Available Now
Available through authorised Ventair distributors in Australia.
Exhaust Fan Airflow Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
