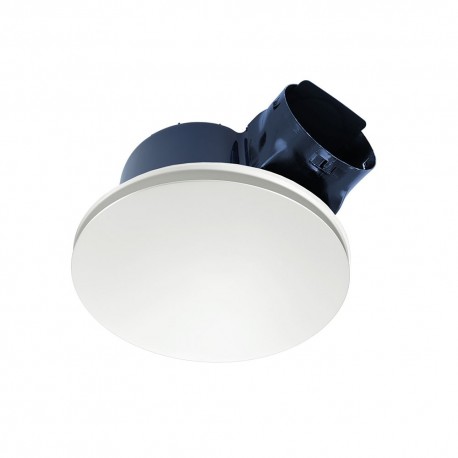

Airbus EC 500 Exhaust Fan Round White Ventair
Airbus EC 500 Energy Efficient Exhaust Fan Round White by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Airbus EC 500 Round Exhaust Fan, PVPXEC500RD, Energy Efficient Bathroom Exhaust Fan, Continuous Ventilation Fan
Technical Specifications
- Model: PVPXEC500RD
- Colour: White
- Motor Type: Three-speed energy efficient EC motor
- Motor Type: Ball bearing motor
- Air Delivery: Boost 510 m³/h; Run 380 m³/h; 24/7 70 m³/h
- Motor Power: Boost 80 W; Run 35 W; 24/7 3 W
- Noise Level: Boost 44 dB(A); Run 40 dB(A); 24/7 21 dB(A)
- Duct Outlet: 150 mm side outlet
- Cut-Out Size: 300 mm diameter
- Fascia Size: 326 mm diameter
- IP Rating: IPX4
- Power Input: 220–240 V AC, 50 Hz
- Installation: Plug and lead
- Minimum Installation Depth: 220 mm
- Included Accessories: Wireless wall controller, plug and lead, instruction manual and warranty card
- Dimensions (H x L x W): 195mm x 326mm x 326mm
- Weight: 3.36 kg
Key Features
- Continuous 24/7 trickle ventilation for stale and moist air control
- Three operating modes: Boost, Run and 24/7 continuous trickle
- Low-power 3 W continuous operating mode
- High airflow capacity suitable for bathrooms and large open bathrooms
- Wireless wall controller included
- Side-ducted design for extended ducting installations
- Draft stopper included
- Compatible with Airbus 250 fascia options
- IPX4-rated construction for suitable bathroom applications
Professional Installation Requirements
- Installation and electrical connection should be completed by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. Duct exhaust air to the outdoor atmosphere where required by the National Construction Code.
Applications
- Bathrooms and ensuites
- Large open bathrooms
- Residential ceiling ventilation
- Continuous moisture and stale-air extraction
- Odour and steam removal through 150 mm ducting
Standards & Compliance
- AS/NZS 60335.2.80:2016 for safety requirements applying to household and similar electric fans
- AS/NZS 3000 for electrical installation and wiring requirements
Environmental Benefits
- 3 W continuous operating mode supports lower energy consumption during 24/7 ventilation
- Efficient EC motor technology reduces operating power compared with conventional exhaust fan motors
- Continuous moisture extraction can help reduce condensation, mould risk and building maintenance
- Ball-bearing motor construction supports longer service life and reduced replacement waste
Warranty Information
Five-year domestic warranty for the exhaust fan against manufacturing faults or defects. Commercial installations are covered for one year. The included wireless controller is subject to Ventair's separate accessory warranty terms.
Available Now
Available through authorised Ventair distributors in Australia.
