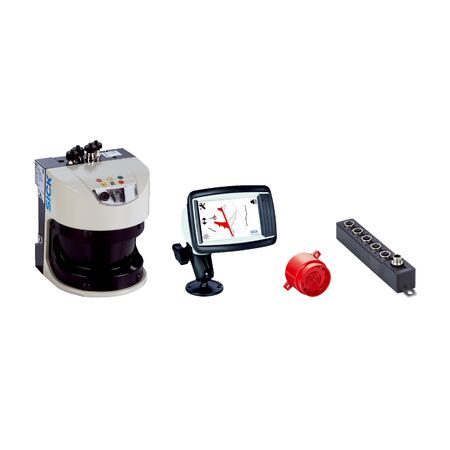

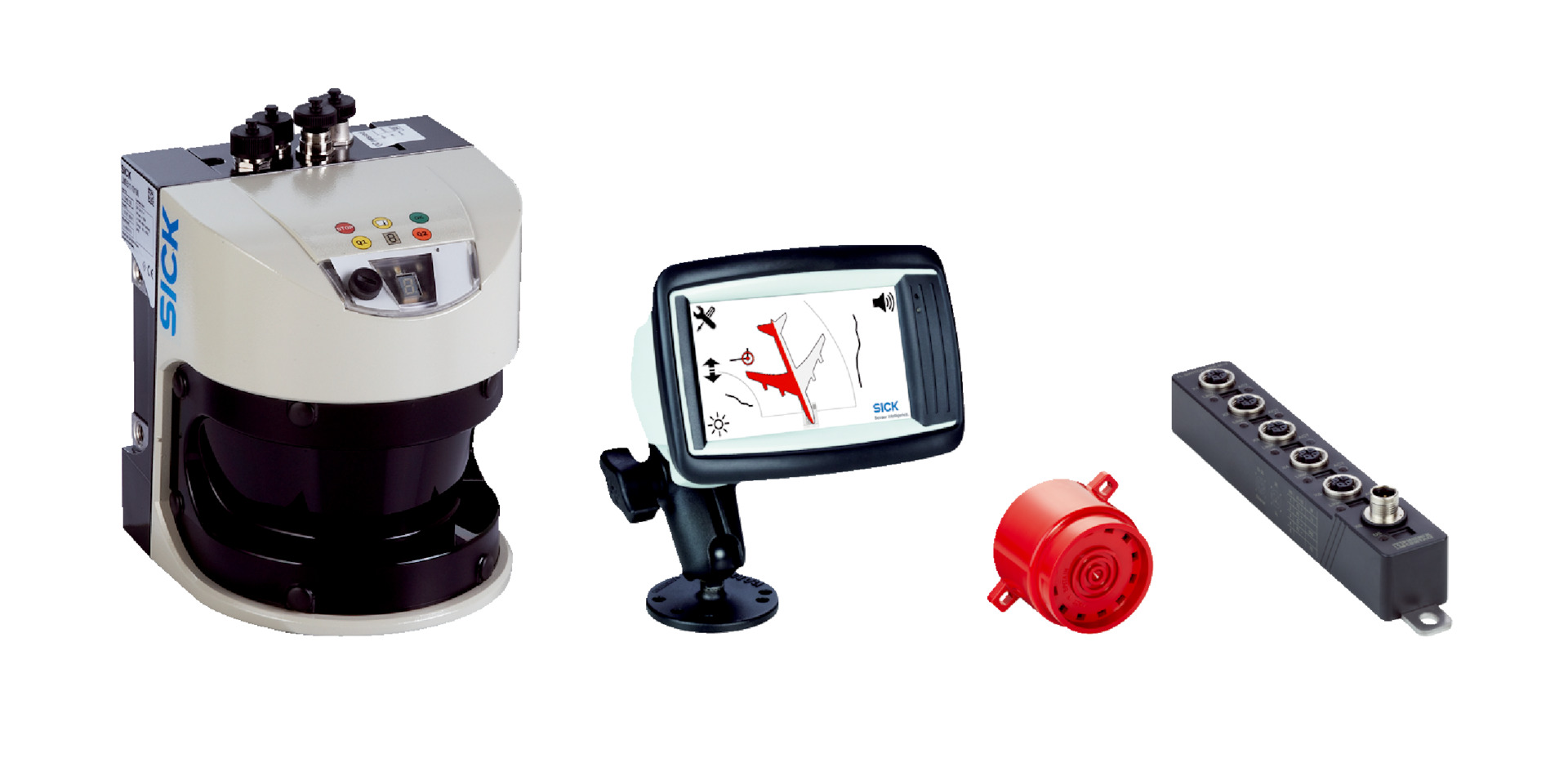

Airport Pushback Collision Sensor APS-5101 | 2D LiDAR with 180° Aperture | Audible & Visual Warnings | by SICK
The Airport Pushback Collision Sensor APS-5101 is designed for aircraft ground handling, featuring a single 2D LiDAR sensor with a 180° horizontal aperture angle and a scanning frequency of 25 Hz. With a working range of 0.7 m to 80 m, it provides audible and visual collision warnings, ensuring safety during pushback operations. Ideal for airport pushback tractors without towbar, this sensor enhances operational efficiency and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 98mm x 130mm x 142mm
- Weight: 4.3 kg
Key Features
- Single 2D LiDAR sensor with 180° horizontal aperture angle
- Scanning frequency of 25 Hz with 0.25° angular resolution
- Working range from 0.7 m to 80 m
- Audible and visual collision warnings with maneuver assistant
- Aircraft type detection and self-diagnostics
- Heated sensor for reliable operation in cold environments
- 4.3-inch touch display operator interface
- Multiple switching inputs and outputs for integration
- Ethernet connectivity with software updates via web interface
- Eye-safe laser class 1 compliant with IEC 60825-1:2014
Professional Installation Requirements
- Professional installation by qualified personnel is required to ensure correct mounting, electrical connection, and calibration on pushback tractors.
Applications
- Airport pushback tractors without towbar
- Collision warning and maneuver assistance for aircraft ground handling
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 27 W (up to 92 W with heating)
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK APS-5101 is available for immediate purchase, ideal for enhancing safety in airport ground operations involving pushback tractors.
