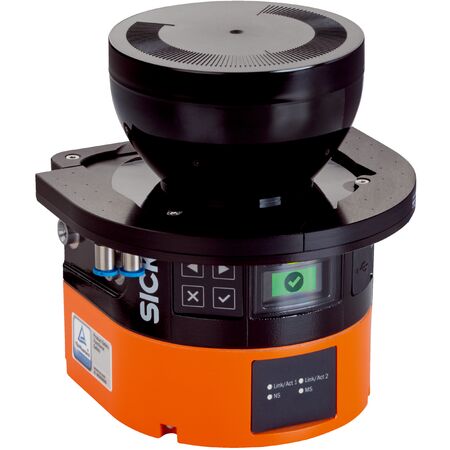

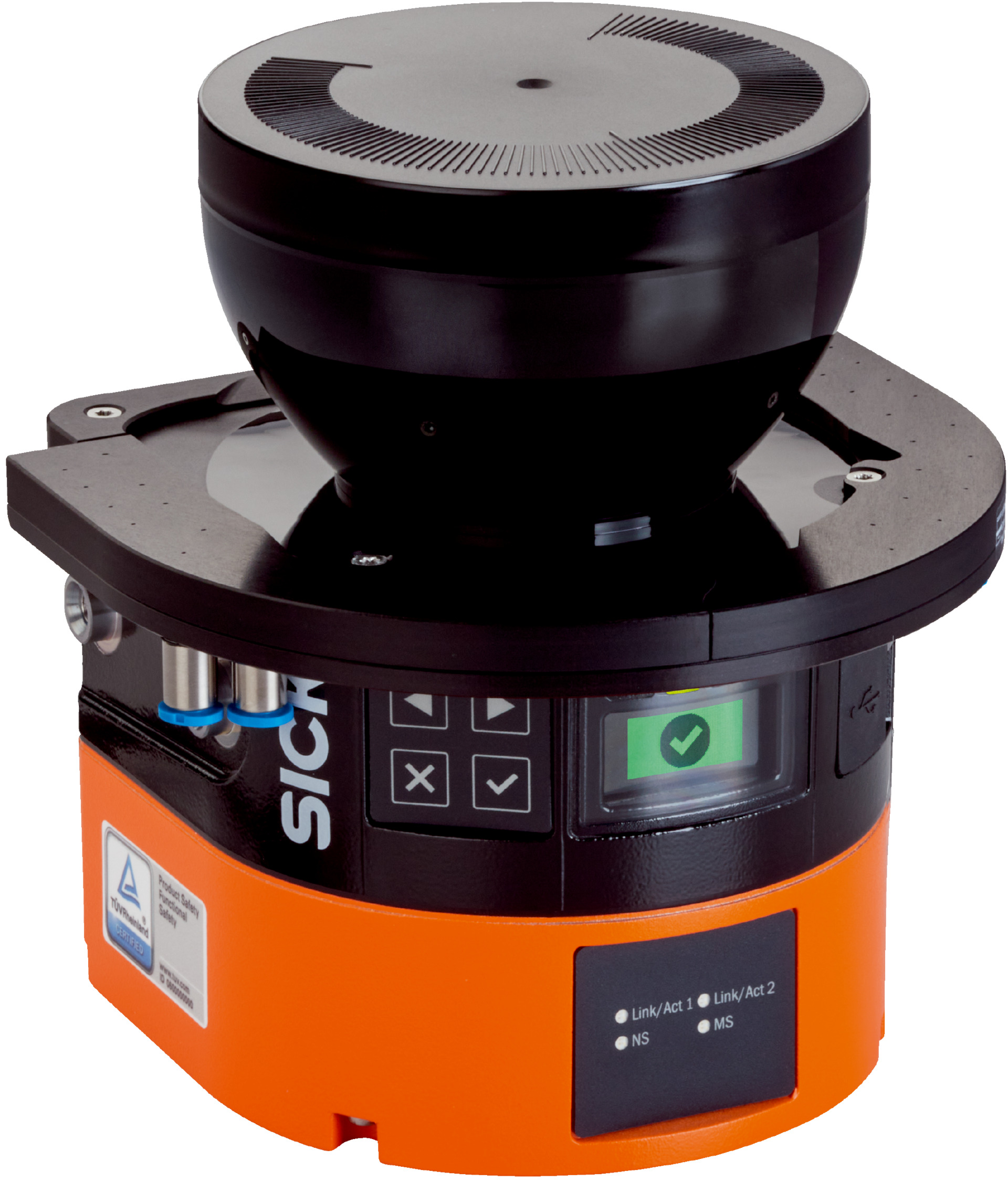

airWiper Kit outdoorScan3 Pro | Compressed Air Cleaning Sensor | 4m Protective Range | SIL 2 Safety Level | by SICK
The airWiper Kit outdoorScan3 Pro is a cutting-edge sensor kit designed for compressed air cleaning, featuring a protective field range of 4 meters and the ability to monitor up to 8 fields simultaneously. Ideal for outdoor industrial safety applications, this robust system integrates seamlessly with EtherNet/IP networks, ensuring reliable obstacle detection and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating medium: Compressed air, purity class ISO 8573-1 [7:4:4]
- Input pressure: Typical 400 kPa (200 kPa to 600 kPa, 2.0 bar to 6.0 bar)
- Temperature of compressed air: ≤ +50 °C
- Protective field range: 4 m, Warning field range: 40 m
- Number of simultaneously monitored fields: ≤ 8, Number of fields: 128
- Scanning angle: 275°, Angular resolution: 0.39°
- Response time: 115 ms, Protective field supplement: 65 mm
- Safety type: Type 3 (IEC 61496), SIL 2 (IEC 61508), Category 3 (EN ISO 13849), Performance level PL d
- Power supply: 24 V DC (16.8 V DC to 30 V DC), Power consumption typical: 7.2 W
- Connection: 1x M12 4-pin A-coded male for voltage supply, 2x M12 4-pin D-coded female for EtherNet/IP
- Configuration via PC with Safety Designer software, interfaces include USB 2.0, Mini-USB, Ethernet
- Housing material: Aluminum, Optics cover: Polycarbonate with scratch-resistant coating
- Protection class: III (EN 61140), Enclosure rating: IP65 (IEC 60529)
- Operating temperature range: -25 °C to +50 °C, Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance compliant with IEC 60068 and IEC 60721 standards
- Laser type: Pulsed laser diode, wavelength 845 nm, Laser class 1
- Dimensions (H x L x W): 151mm x 128mm x 141mm
- Weight: 1.6 kg
Key Features
- Sensor kit designed for compressed air cleaning with pre-mounted system plug
- Protective field range of 4 m and warning field range of 40 m
- Supports up to 8 simultaneously monitored fields and 128 monitoring cases
- Scanning angle of 275° with configurable resolution of 50 mm or 70 mm
- Safety integrity level SIL 2 and Category 3 safety classification
- Multiple safety and monitoring functions including restart interlock and multiple sampling
- EtherNet/IP industrial network with 8 safety outputs via network
- Graphic color display with LEDs for status indication
- Robust aluminum housing with IP65 protection rating
- Operating temperature range from -25 °C to +50 °C
- Vibration and shock resistant compliant with IEC standards
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct setup, configuration, and compliance with safety standards.
Applications
- Outdoor safety and monitoring applications requiring compressed air cleaning
- Industrial environments needing reliable obstacle detection with safety integrity
- Systems requiring Ethernet/IP network integration for safety outputs
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables efficient compressed air cleaning reducing manual maintenance and chemical use
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low power consumption of 7.2 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK airWiper Kit outdoorScan3 Pro EtherNet/IP is available for immediate purchase, ideal for outdoor industrial safety and monitoring applications requiring compressed air cleaning.
