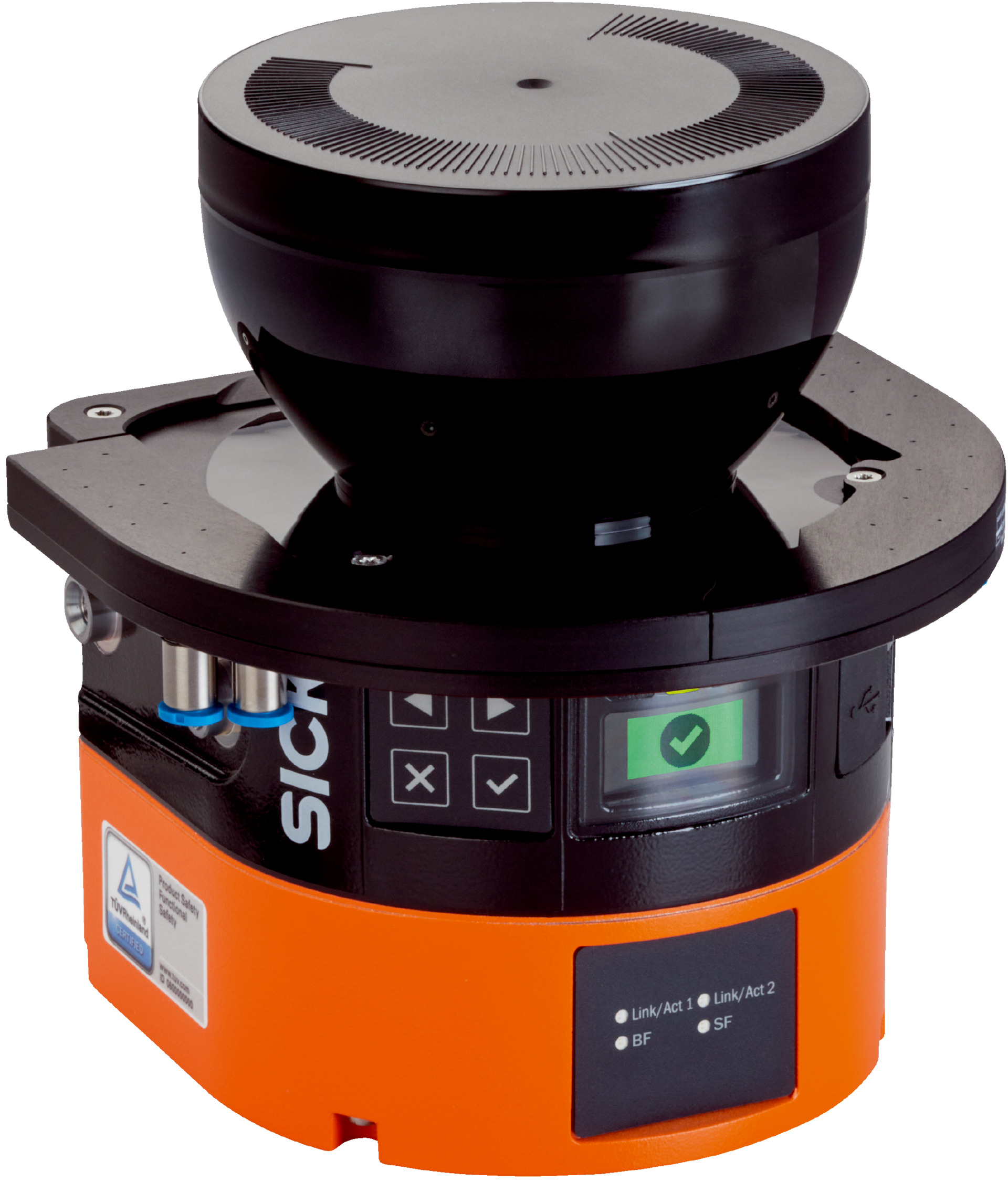

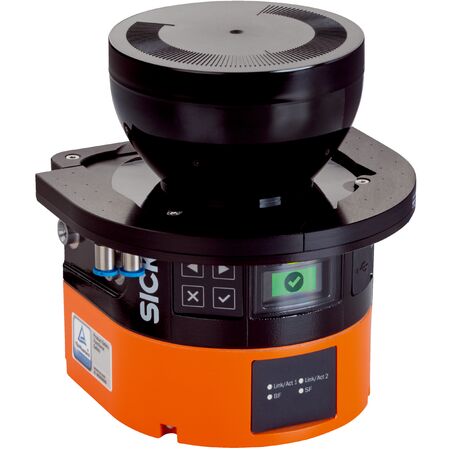

airWiper Kit outdoorScan3 Pro | PROFINET Safety Sensor | 4m Protective Range | 275° Scanning Angle | by SICK
The airWiper Kit outdoorScan3 Pro is a cutting-edge PROFINET safety sensor designed for outdoor industrial applications. With a protective field range of 4 meters and a scanning angle of 275°, it efficiently monitors up to 8 fields simultaneously. Built for robust performance, this sensor features a durable aluminum housing and operates effectively in temperatures ranging from -25 °C to +50 °C, making it ideal for environments requiring reliable compressed air cleaning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating medium: Compressed air, purity class ISO 8573-1 [7:4:4]
- Input pressure: Typically 400 kPa (range 200 kPa to 600 kPa, 2.0 bar to 6.0 bar)
- Temperature of compressed air: ≤ +50 °C
- Protective field range: 4 m
- Warning field range: 40 m
- Number of simultaneously monitored fields: ≤ 8
- Number of fields: 128
- Number of monitoring cases: 128
- Scanning angle: 275°
- Resolution (configurable): 50 mm or 70 mm
- Angular resolution: 0.39°
- Response time: 115 ms
- Protective field supplement: 65 mm
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Performance class: D (IEC/TS 62998)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: Safety outputs via network are logic 0
- Connection type: 1 x male connector M12 4-pin A-coded for voltage supply; 2 x M12 female connectors 4-pin D-coded for PROFINET
- Fieldbus: PROFINET with PROFIsafe protocol
- Configuration interface: USB 2.0, Mini-USB, Ethernet
- Power supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption typical: 7.2 W
- Housing material: Aluminum with anodised airWiper
- Optics cover material: Polycarbonate with scratch-resistant coating
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (IEC 60529)
- Ambient operating temperature: –25 °C to +50 °C
- Storage temperature: –25 °C to +70 °C
- Vibration resistance: IEC 60068-2-6, IEC 60068-2-64, IEC 60721-3-5, IEC TR 60721-4-3, IEC 61496-1, IEC 61496-3
- Shock resistance: IEC 60068-2-27, IEC 60721-3-5, IEC TR 60721-4-3, IEC 61496-1, IEC 61496-3
- Laser type: Pulsed laser diode, wavelength 845 nm, Laser class 1
- Dimensions (H x L x W): 151mm x 128mm x 141mm
- Weight: 1.6 kg
Key Features
- Sensor kit for compressed air cleaning with pre-mounted system plug
- Protective field range of 4 m and warning field range of 40 m
- Monitors up to 8 fields simultaneously with 128 monitoring cases
- Scanning angle of 275° with configurable resolution of 50 mm or 70 mm
- Safety-related parameters: Type 3 (IEC 61496), SIL 2 (IEC 61508), Category 3 (EN ISO 13849), Performance level PL d
- Multiple safety and monitoring functions including restart interlock and multiple sampling
- Interfaces include PROFINET with PROFIsafe protocol and Ethernet data output
- Power consumption typical 7.2 W with 24 V DC supply voltage
- Robust aluminum housing with IP65 rating and scratch-resistant polycarbonate optics cover
- Wide ambient operating temperature range from –25 °C to +50 °C
- Certified with EU, UK, ACMA, cULus, PROFINET, PROFIsafe, and other relevant certificates
Professional Installation Requirements
- Professional installation by qualified personnel with expertise in PROFINET networks and industrial safety sensors is recommended to ensure compliance and optimal performance.
Applications
- Outdoor safety and monitoring applications
- Industrial environments requiring compressed air cleaning sensors
- Safety monitoring with PROFINET network integration
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables efficient safety monitoring reducing risk of accidents and environmental hazards
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK airWiper Kit outdoorScan3 Pro – PROFINET is available for immediate purchase, ideal for outdoor industrial safety and monitoring applications requiring compressed air cleaning and PROFINET integration.
