AJAX 12V-24V PSU for Hub 2 & Hub 2 Plus | Low Voltage Power Supply | Easy Installation | by AJAX
The AJAX 12V-24V PSU is designed for seamless power supply to Ajax Hub 2 and Hub 2 Plus, making it ideal for mobile and backup power applications. With a low voltage range and easy installation requiring just a PH1 screwdriver, this power supply ensures reliable performance in trailers, trucks, and boats. Enjoy the convenience of a standard power jack and terminal adapter, promoting energy efficiency and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX 12V-24V PSU for Hub 2 & Hub 2 Plus | Low Voltage Power Supply | Easy Installation | by AJAX
Brand: AJAX
SKU: 59359.94.NC
Alternatively Known As: Ajax Hub 2 Power Supply, Ajax Hub 2 Plus PSU, Low Voltage Power Supply for Ajax, Ajax Range Extender Power Supply
Technical Specifications
- Input Voltage: 8 - 32 V⎓
- Output Voltage: 4.8 V⎓ ± 5%
- Turn-on Voltage: 8 V⎓ ± 2.5%
- Turn-off Voltage: 7–7.5 V⎓ (depending on load)
- Max Input Current: up to 1 A
- Max Output Current: 1.5 A
- Operating Temperature Range: -10 °C to +40 °C
- Humidity: Up to 75%
- Connection to Mains Socket: 6.5 × 2 mm
- Plug Size: 5.5 × 2.1 mm
- Dimensions (H x L x W): 17mm x 70mm x 98mm
- Weight: 0.026 kg
Key Features
- Alternative power supply to connect Ajax hubs and range extenders to low-voltage power supply
- Comes with standard power jack and terminal adapter for convenience
- Replaces bundled 110/230V~ power supply unit
- Easy installation requiring only a PH1 screwdriver and 10 minutes
Professional Installation Requirements
- Installation requires a PH1 screwdriver and approximately 10 minutes; recommended to be performed by a qualified technician to ensure proper connection and safety.
Applications
- Power supply for Ajax Hub 2 and Hub 2 Plus
- Suitable for use in trailers, trucks, boats

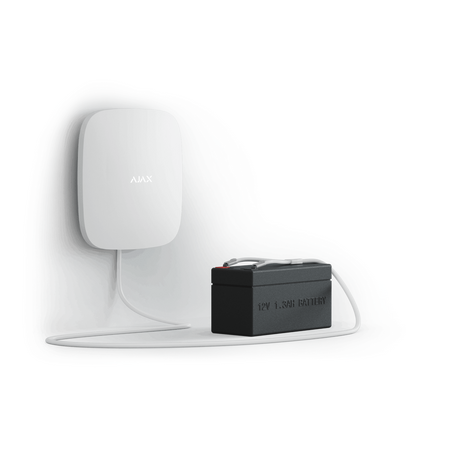

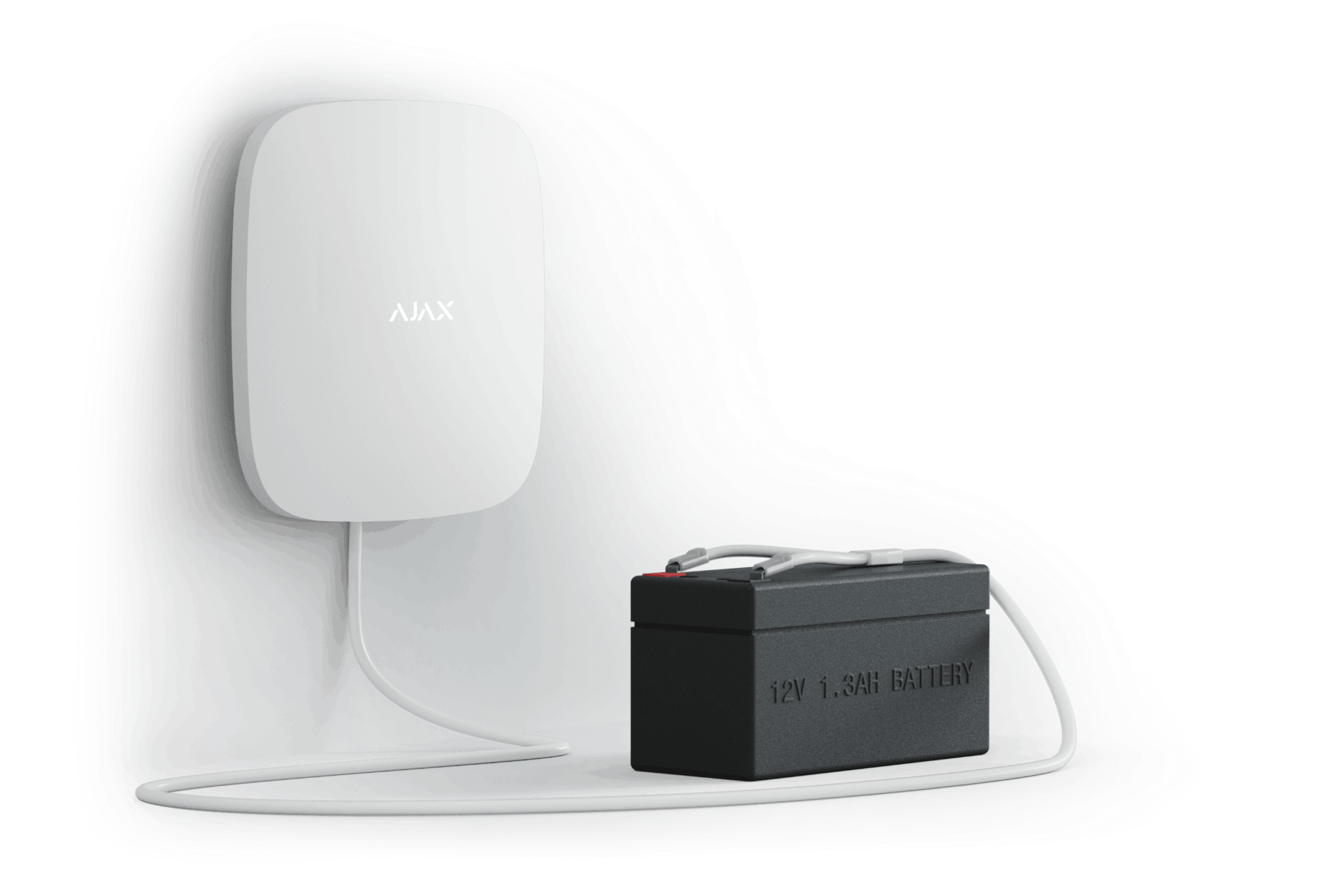

- External backup battery power supply for Ajax hubs and range extenders
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Supports use of low-voltage power sources reducing energy consumption
- Enables use of external backup batteries, promoting energy efficiency and reliability
Warranty Information
Warranty for the Limited Liability Company “Ajax Systems Manufacturing” products is valid for 2 years after the purchase.
Available Now
The AJAX 12V-24V PSU for Hub 2 / Hub 2 Plus REX 2 is available for immediate purchase, ideal for use in mobile and backup power applications.
