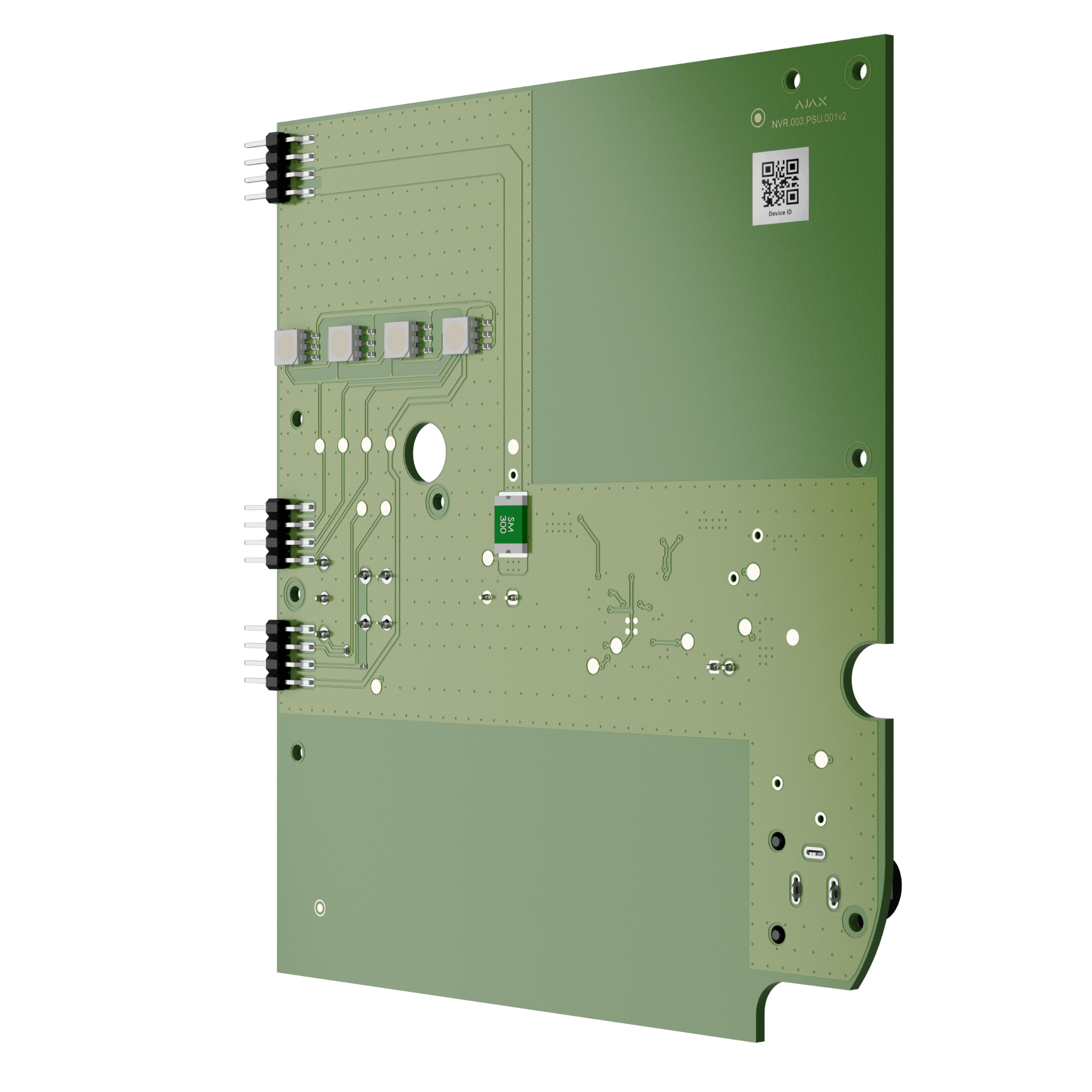

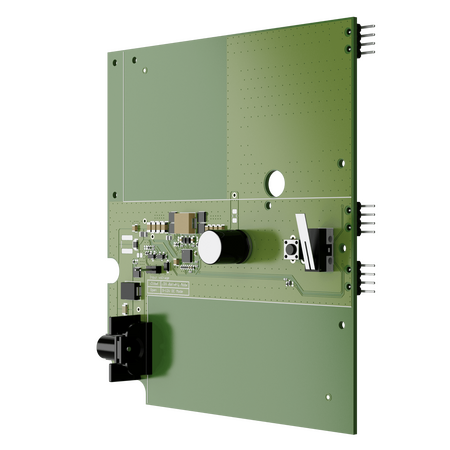

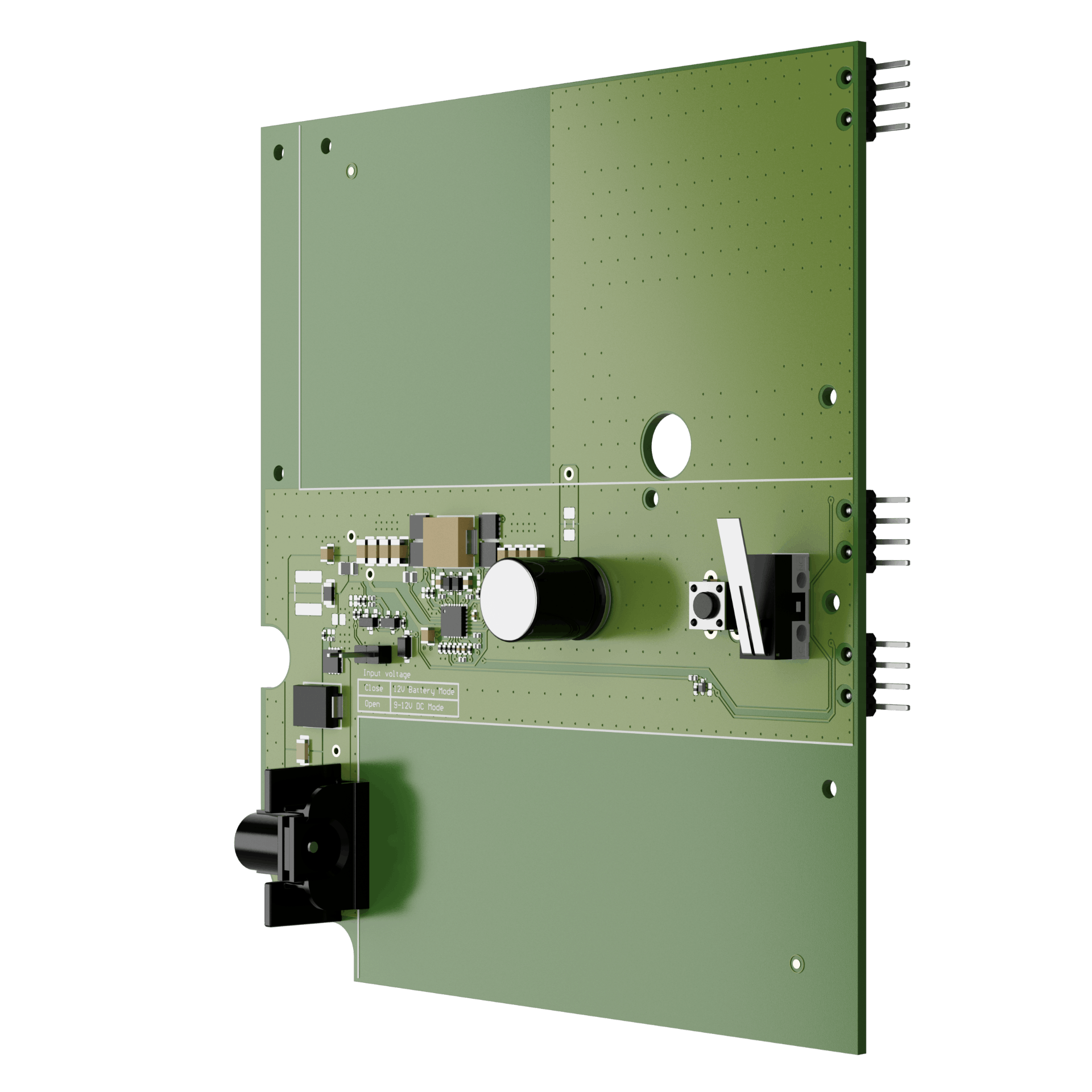

AJAX 12V PSU for AJAX NVR | Low Voltage Power Supply | Easy Installation | by AJAX
AJAX 12V PSU for AJAX NVR ensures uninterrupted power supply for your network video recorder, operating on a low-voltage source. Designed for security systems, it features a standard jack plug for easy connection and quick installation by a professional electrician, making it ideal for properties with unstable power supply.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX 12V PSU for AJAX NVR | Low Voltage Power Supply | Easy Installation | by AJAX
Brand: AJAX
SKU: 112255.305.NC
Alternatively Known As: 12V Power Supply Unit for NVR, Ajax NVR PSU, Low Voltage PSU for Network Video Recorder
Technical Specifications
- Device operating voltage range without jumper: 8–16 V⎓
- Maximum current consumption (no jumper): up to 4 A
- Turn-on threshold voltage rises (no jumper): 8 V⎓ (no-load)
- Turn-off threshold voltage drops (no jumper): 6.5 V⎓ (no-load)
- Device operating voltage range with jumper: 12.1–16 V⎓
- Turn-on threshold voltage rises with jumper: 12.1 V⎓ (no-load)
- Turn-off threshold voltage drops with jumper: 10.35 V⎓ (no-load)
- Output nominal voltage: 12 V⎓ ± 3%
- Shutdown device current consumption: 110 μA
- Quiescent device current consumption: 65 mA
- Maximum device current consumption: 2 A
- Operating temperature range: 0 °C to +40 °C
- Operating humidity: up to 75%
- Protection class: IP20
- Power supply connection: 6.5 × 2.0 mm Power jack (female)
- Dimensions (H x L x W): 17mm x 123mm x 118mm
- Weight: 0.051 kg
Key Features
- Replaces standard 110/230 V~ power supply unit inside NVR enclosure
- Operates on low-voltage power source ensuring continuous recording
- Standard jack plug for easy power cable connection
- Includes terminal adapter for installation
- Quick installation by professional electrician in about 10 minutes
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper integration within the NVR enclosure and compliance with electrical safety standards.
Applications
- Network Video Recorders (NVR) requiring uninterrupted power supply
- Properties with unstable or no main power supply
- Security systems needing continuous video recording
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces dependency on unstable main power grids, minimizing power interruptions
- Supports energy-efficient low-voltage operation
Warranty Information
24 months warranty.
Available Now
The AJAX 12V PSU for AJAX NVR by AJAX is available for immediate purchase, ideal for enhancing security system reliability in residential and commercial properties.
