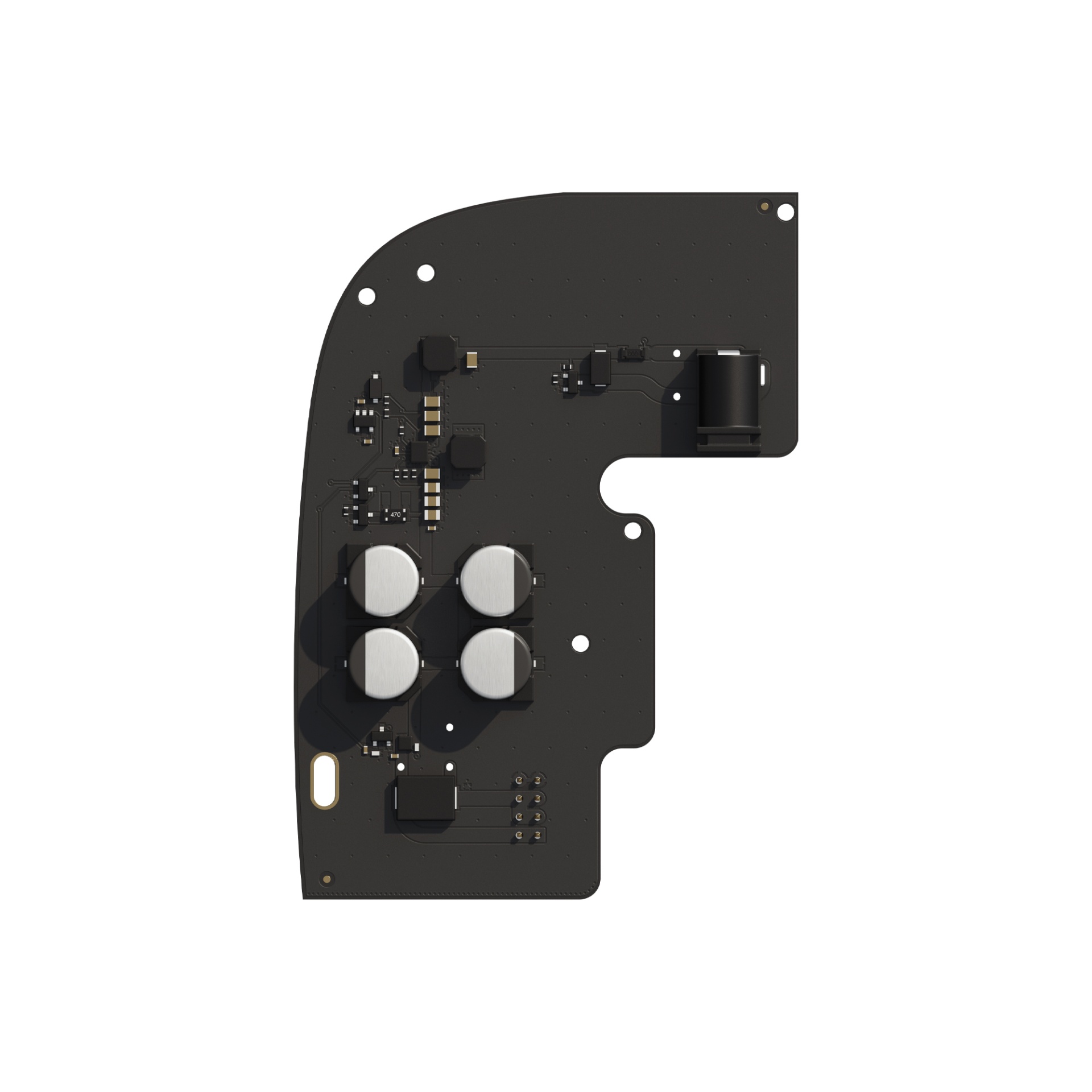

AJAX 6V Power Supply Unit for Hub 2 & ReX 2 | External Battery Compatible | @Each by AJAX
The AJAX 6V Power Supply Unit is designed for Hub 2, Hub 2 Plus, and ReX 2 systems, allowing operation from an external portable battery for years without mains power. Ideal for critical condition buildings and construction sites, this PSU ensures reliable security and protection against unauthorized access, making it a perfect choice for off-grid locations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX 6V Power Supply Unit for Hub 2 & ReX 2 | External Battery Compatible | @Each by AJAX
Brand: AJAX
SKU: 20763.78.NC
Alternatively Known As: 6V Power Supply Unit for AJAX Hub 2, Hub 2 Plus, ReX 2; AJAX External Battery PSU; AJAX Hub 2 Battery Power Supply
Technical Specifications
- Input Voltage: 4.2-10 V⎓
- Output Voltage: 4.8 V⎓ ± 5%
- Switch On Voltage: 4.2 V⎓ ± 2.5%
- Switch Off Voltage: 3-3.4 V⎓ (depending on load)
- Max Input Current: 2.2 A at 4.2 V⎓; 0.8 A at 10 V⎓
- Max Output Current: 1.5 A
- Operating Temperature Range: -10 °C to +40 °C
- Humidity: Up to 75%
- Connection to Mains Socket: 6.5 × 2 mm
- Plug Size: 5.5 × 2.1 mm
- Dimensions (H x L x W): 17mm x 70mm x 98mm
- Weight: 0.03 kg
Key Features
- Allows operation from an external portable battery for years without connection to the facility's power grid
- Compatible only with Hub 2 / Hub 2 Plus control panels and ReX 2 range extender
- Standard power jack plug with terminal adapter included

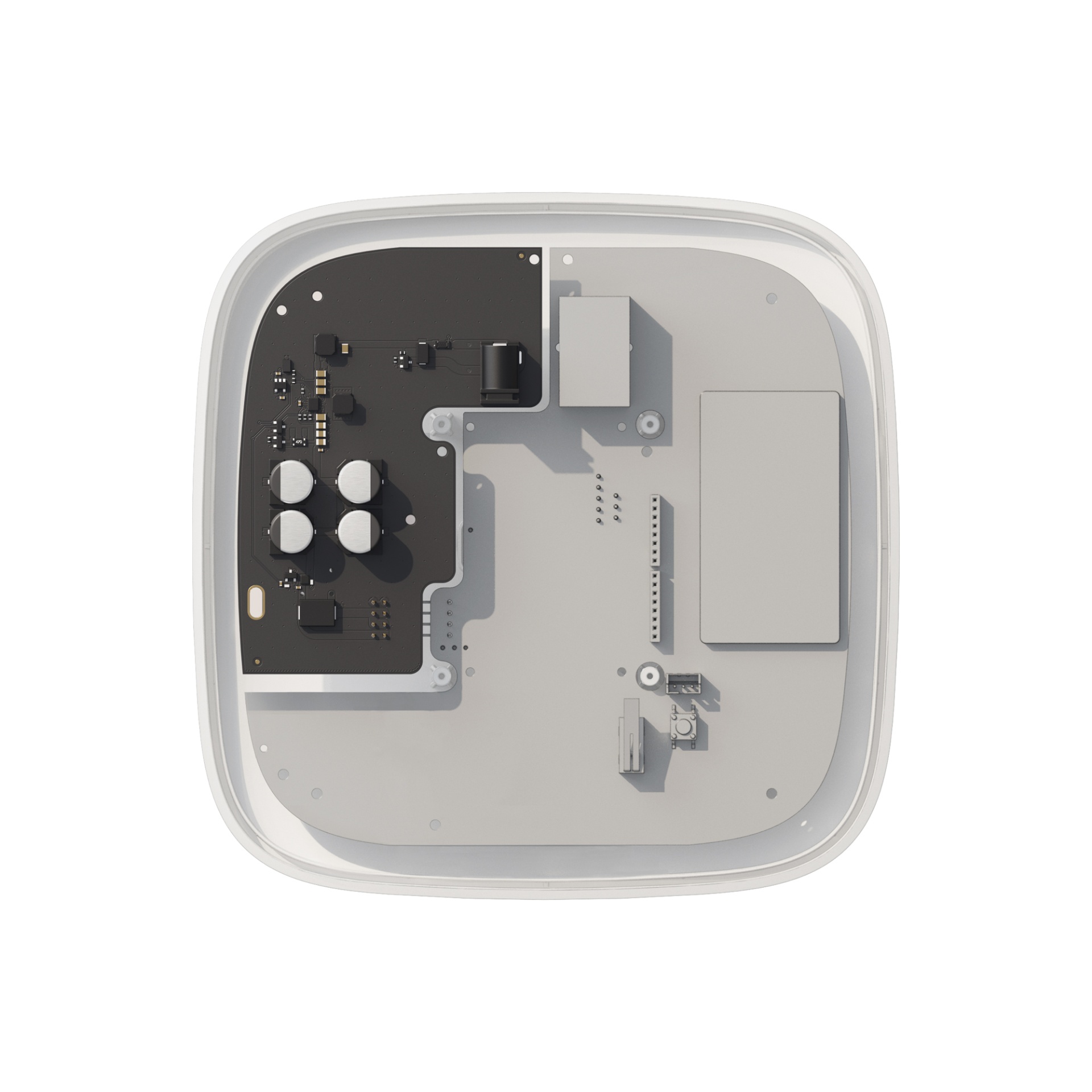

- Replaces pre-installed 110/230 V~ power supply unit
- Enables protection against burglars, vandals, and unauthorized occupation
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with AJAX systems to ensure proper replacement of the existing power supply unit.
Applications
- Power supply for Hub 2 control panel
- Power supply for Hub 2 Plus control panel
- Power supply for ReX 2 range extender
- Suitable for use in critical condition buildings, construction sites, and abandoned properties
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables use of external portable batteries reducing dependency on mains power
- Supports security systems in off-grid or power-critical locations, reducing energy waste
Warranty Information
Warranty for the Limited Liability Company “Ajax Systems Manufacturing” products is valid for 2 years after the purchase.
Available Now
The AJAX 6V PSU for Hub 2 / Hub 2 Plus / ReX 2 is available now for immediate purchase. Ideal for securing critical and off-grid locations requiring reliable battery-powered operation.
