AJAX Camera Junction Box Black | Waterproof Aluminum | PG21 Cable Gland | Sealing Ring for 1 or 2 Cables | by Dicker Data

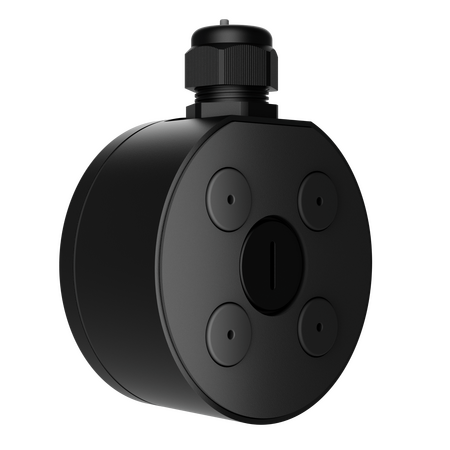

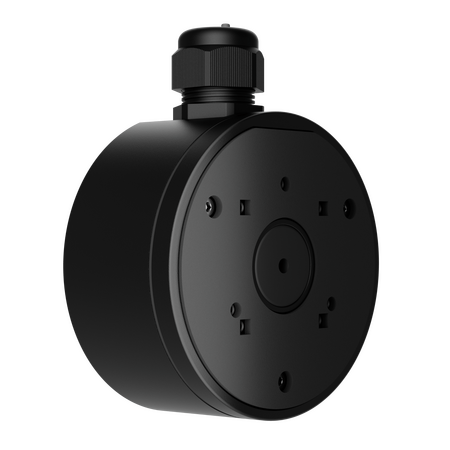

The AJAX Camera Junction Box Black is designed for secure mounting of Ajax IP cameras, featuring waterproof aluminum construction and a PG21 cable gland for optimal cable protection. Ideal for both outdoor and indoor installations, this junction box ensures durability and safety, making it perfect for professional setups on concrete walls, ceilings, or columns.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX Camera Junction Box Black | Waterproof Aluminum | PG21 Cable Gland | Sealing Ring for 1 or 2 Cables | by Dicker Data
Brand: Dicker Data
SKU: 88882.234.BL
Alternatively Known As: Camera Mounting Box, Waterproof Junction Box, IP Camera Junction Box
Technical Specifications
- Compatibility: BulletCam, DomeCam Mini, TurretCam
- Material: Aluminum ADC12
- Cable Gland: PG21
- Sealing Ring: For 1 or 2 cables
- Mounting Wire: Secures lid during installation
- Grounding Terminal: Requires grounding by a qualified specialist
- Dimensions (H x L x W): 59mm x 117mm x 152mm
- Weight: 0.468 kg
Key Features
- Waterproof aluminum ADC12 construction for durability
- PG21 cable gland protects cables from damage, insulation loss, and bending
- Sealing ring for one or two cables prevents water, dust, and contaminants ingress
- Mounting wire secures lid during installation to prevent accidental falls
- Grounding terminal for safe electrical grounding by a qualified specialist
Professional Installation Requirements
- Installation and grounding must be performed by a qualified electrician in compliance with local electrical safety regulations.
Applications
- Outdoor and indoor mounting of Ajax IP cameras on concrete walls, ceilings, or columns
- Cable management and protection for Ajax BulletCam, DomeCam Mini, and TurretCam
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminum construction reduces need for frequent replacements
- Protects camera cables from environmental damage, extending device lifespan
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The AJAX Camera Junction Box Black is available for immediate purchase, ideal for secure outdoor and indoor IP camera installations.
