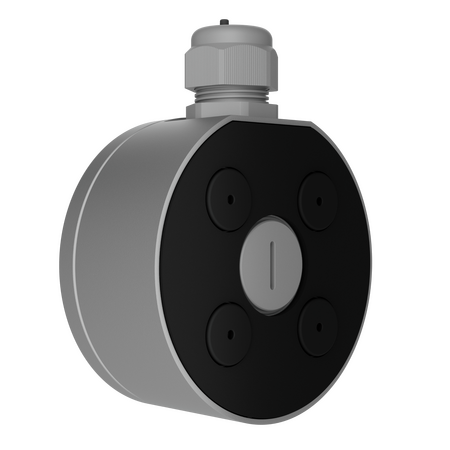

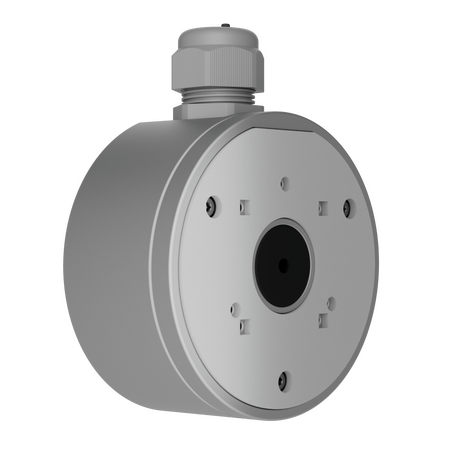

AJAX Camera Junction Box | Waterproof Aluminum ADC12 | PG21 Cable Gland | by Dicker Data
The AJAX Camera Junction Box is designed for secure and weatherproof installation of Ajax IP cameras, featuring a waterproof aluminum ADC12 construction and a PG21 cable gland that protects cables from damage. Ideal for both residential and commercial environments, this junction box ensures reliable cable management and protection for BulletCam, DomeCam Mini, and TurretCam installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX Camera Junction Box | Waterproof Aluminum ADC12 | PG21 Cable Gland | by Dicker Data
Brand: Dicker Data
SKU: 88881.234.WH
Alternatively Known As: AJAX IP Camera Mounting Box, Waterproof Camera Junction Box, Aluminum Camera Mount Box
Technical Specifications
- Compatibility: BulletCam, DomeCam Mini, TurretCam
- Material: Aluminum ADC12
- Cable Gland: PG21
- Sealing Ring: For 1 or 2 cables
- Mounting Wire: Secures lid during installation
- Grounding Terminal: Requires grounding by a qualified specialist
- Dimensions (H x L x W): 59mm x 117mm x 152mm
- Weight: 0.468 kg
Key Features
- Waterproof aluminum ADC12 construction
- PG21 cable gland protects cables from damage, insulation loss, and bending
- Sealing ring for one or two cables prevents water, dust, and contaminants ingress
- Mounting wire secures lid during installation to prevent falling
- Grounding terminal for safe electrical grounding by a qualified specialist
Professional Installation Requirements
- Installation and grounding must be performed by a qualified electrician in compliance with local electrical safety regulations.
Applications
- Outdoor and indoor mounting of Ajax IP cameras on concrete walls, ceilings, or columns
- Cable management and protection for Ajax BulletCam, DomeCam Mini, and TurretCam
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminum construction reduces need for frequent replacements
- Protects camera cables from damage, reducing electronic waste
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The AJAX Camera Junction Box White is available for immediate purchase, ideal for secure and weatherproof installation of Ajax IP cameras in both residential and commercial environments.
