AJAX CASE A FIBRA | Secure Device Mounting | Durable Design | Bubble Level Included | by AJAX

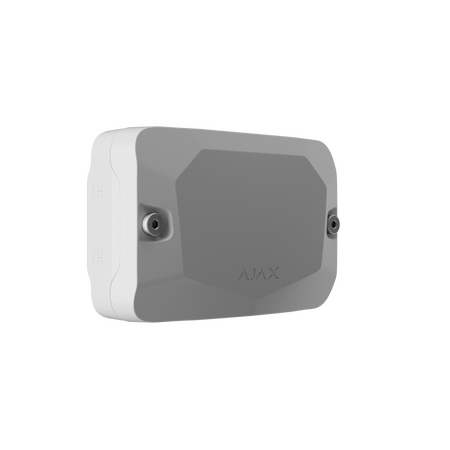

AJAX CASE A FIBRA is designed for secure installation of Ajax wired devices like LineSplit Fibra and MultiRelay Fibra. With durable plastic latches and a built-in bubble level for precise installation, this enclosure ensures a reliable and stylish solution for both residential and commercial security systems. Ideal for professional installations, it supports a temperature range of -10°C to +40°C and complies with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX CASE A FIBRA | Secure Device Mounting | Durable Design | Bubble Level Included | by AJAX
Brand: AJAX
SKU: 63138.186.WH
Alternatively Known As: Ajax Fibra Case A, Ajax Wired Device Enclosure, Ajax Security Device Mounting Box
Technical Specifications
- Compatibility: LineSplit Fibra, LineProtect Fibra, MultiRelay Fibra
- Number of devices supported: 1
- Plastic latches to secure a device
- Bubble level included to check inclination angle during installation
- Recesses for drilling: Ø16 mm or Ø20 mm
- Operating temperature range: from −10 °C to +40 °C
- Operating humidity: up to 75%
- Dimensions (H x L x W): 56mm x 168mm x 106mm
- Weight: 0.186 kg
Key Features
- Safe and fast installation with durable latches and holding screws
- Equipped with tamper and cable ducts for secure device mounting
- Robust casing walls that retain integrity even during drilling
- Stiffeners designed to provide strength and enhance load-bearing safety
- Stylish and user-friendly design, resistant to sunlight exposure
- Includes bubble level to check inclination angle during installation
- Recesses for drilling with Ø16 mm or Ø20 mm options
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure secure and compliant mounting of Ajax devices.
Applications
- Secure wired connection for Ajax devices such as LineSplit Fibra, LineProtect Fibra, MultiRelay Fibra
- Suitable for residential and commercial security system installations
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Supports secure and efficient installation of security devices, promoting energy-efficient security systems
Warranty Information
24 months warranty.
Available Now
AJAX CASE A FIBRA is available for immediate purchase, ideal for secure and reliable installation of Ajax wired security devices.
