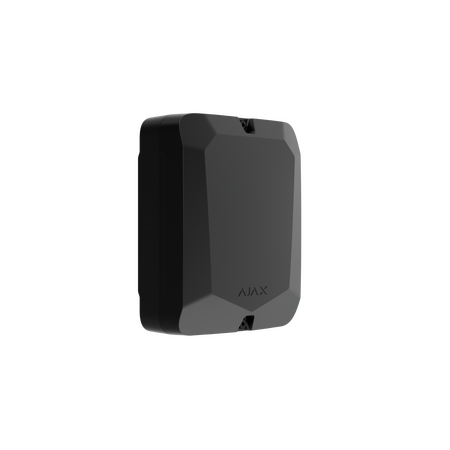

AJAX CASE C FIBRA | Secure Wired Device Housing | Durable Design | Black Finish | by AJAX
AJAX CASE C FIBRA is designed for secure wired connections, supporting LineSupply Fibra with a battery up to 7 Ah. Ideal for both residential and commercial security systems, this enclosure features durable latches, a bubble level for easy installation, and robust walls that resist deformation. With a stylish black finish, it ensures long-lasting performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX CASE C FIBRA | Secure Wired Device Housing | Durable Design | Black Finish | by AJAX
Brand: AJAX
SKU: 67829.186.BL
Alternatively Known As: Ajax Case C Fibra Enclosure, Ajax Wired Device Housing, Ajax Security Case C
Technical Specifications
- Compatibility: LineSupply Fibra (with a battery up to 7 Ah)
- Number of devices supported: 1
- Plastic rails to secure a module
- Bubble level to check inclination angle during installation
- Recesses for drilling: Ø16 mm or Ø20 mm
- Operating temperature range: from −10 °C to +40 °C
- Operating humidity: up to 75%
- Weight of black case: 997 g
- Dimensions (H x L x W): 93mm x 195mm x 260mm
- Weight: 1 kg
Key Features
- Safe and fast installation with durable latches and holding screws
- Equipped with tamper and cable ducts for secure wiring
- Plastic rails to secure modules inside the casing
- Bubble level included to check inclination angle during installation
- Recesses for drilling with Ø16 mm or Ø20 mm options
- Robust casing walls that resist deformation and maintain integrity during drilling
- Stiffeners enhance strength and load-bearing safety
- Stylish and user-friendly design, resistant to sunlight exposure
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure secure mounting and proper wiring of Ajax devices.
Applications
- Secure wired connection housing for Ajax devices
- Suitable for installation of LineSupply Fibra with battery up to 7 Ah
- Ideal for residential and commercial security system setups
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Materials designed to withstand sunlight exposure, extending product life
Warranty Information
24 months warranty.
Available Now
AJAX CASE C FIBRA Black is available for immediate purchase, ideal for secure wired Ajax device installations in residential and commercial security systems.
