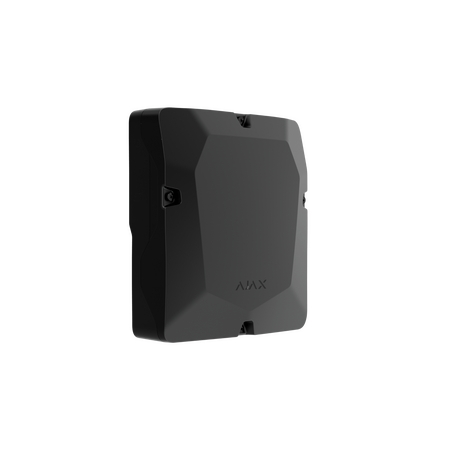

AJAX CASE D FIBRA Black | Durable Casing | Supports 8 Devices | Bubble Level Included | by Dicker Data
AJAX CASE D FIBRA Black is designed for secure housing of Ajax security devices, supporting up to 8 devices and two 18 Ah batteries. With durable casing that resists deformation and a built-in bubble level for easy installation, this enclosure is perfect for both residential and commercial security systems, ensuring safety and organization.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX CASE D FIBRA Black | Durable Casing | Supports 8 Devices | Bubble Level Included | by Dicker Data
Brand: Dicker Data
SKU: 65977.186.BL
Alternatively Known As: Ajax Case D Fibra Enclosure, Ajax Security Device Housing, Ajax Wired Connection Box
Technical Specifications
- Compatibility: LineSplit Fibra, LineProtect Fibra, MultiRelay Fibra, LineSupply Fibra (with battery up to 18 Ah), Hub Hybrid (4G)
- Number of devices supported: up to 8
- Plastic holders (type A): Module Holder for LineSplit Fibra, LineProtect Fibra, MultiRelay Fibra (4 holders supplied, additional sold separately)
- Plastic holders (type B): For Hub Hybrid board (sold separately)
- Bubble level included for mount inclination checking
- Recesses for drilling: Ø16 mm or Ø20 mm
- Operating temperature range: −10 °C to +40 °C
- Operating humidity: up to 75%
- Weight of black case: 3,343 g
- Dimensions (H x L x W): 133mm x 400mm x 430mm
- Weight: 3.34 kg
Key Features
- Durable casing walls that resist deformation and maintain integrity during drilling
- Equipped with fasteners, tamper protection, and cable ducts for secure and organized installation
- Stiffeners enhance strength and load-bearing safety
- Can hold up to 8 Ajax devices and two 18 Ah batteries weighing about 10 kg
- Stylish and user-friendly design, resistant to sunlight exposure
- Includes bubble level to check inclination angle during installation
- Recesses for drilling with Ø16 mm or Ø20 mm options

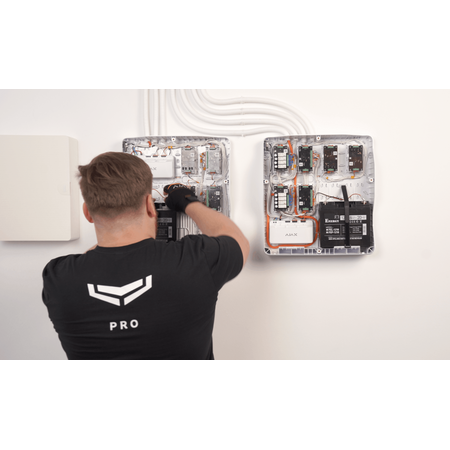

Professional Installation Requirements
- Professional installation by qualified security system technicians is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Secure wired connection housing for Ajax security devices
- Suitable for LineSplit Fibra, LineProtect Fibra, MultiRelay Fibra, LineSupply Fibra with battery up to 18 Ah, and Hub Hybrid (4G)
- Ideal for residential and commercial security system installations
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Supports efficient and secure installation of security systems, promoting safety and energy efficiency
Warranty Information
24 months warranty.
Available Now
The AJAX CASE D FIBRA Black is available for immediate purchase, ideal for secure and organized installation of Ajax wired security devices in residential and commercial settings.
