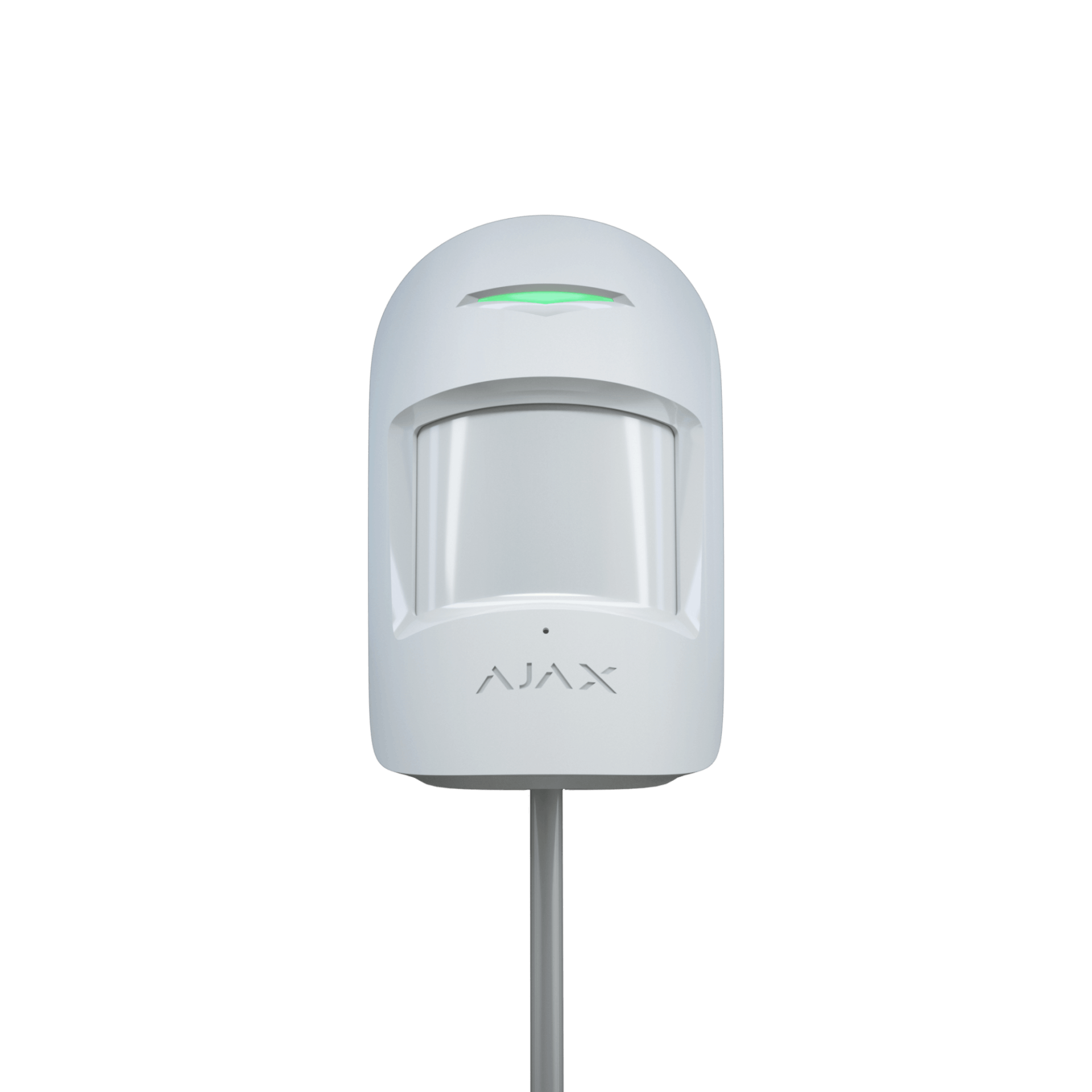

AJAX CombiProtect Fibra White | Dual Motion & Glass Break Detection | SmartDetect Algorithm | IP50 Rated | by AJAX
AJAX CombiProtect Fibra White is a cutting-edge security sensor featuring dual protection with a PIR motion sensor and glass break detection. Ideal for residential and commercial security systems, it offers advanced false alarm prevention through SmartDetect and DualTone algorithms. With a detection range of up to 12m for motion and 9m for glass break, this sensor ensures reliable monitoring and peace of mind.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX CombiProtect Fibra White | Dual Motion & Glass Break Detection | SmartDetect Algorithm | IP50 Rated | by AJAX
Brand: AJAX
SKU: 33088.06.WH1
Alternatively Known As: Ajax CombiProtect Fibra, Dual Motion and Glass Break Detector, Ajax Wired Security Sensor
Technical Specifications
- Sensitive elements: 1 x PIR sensor, 1 x electret microphone

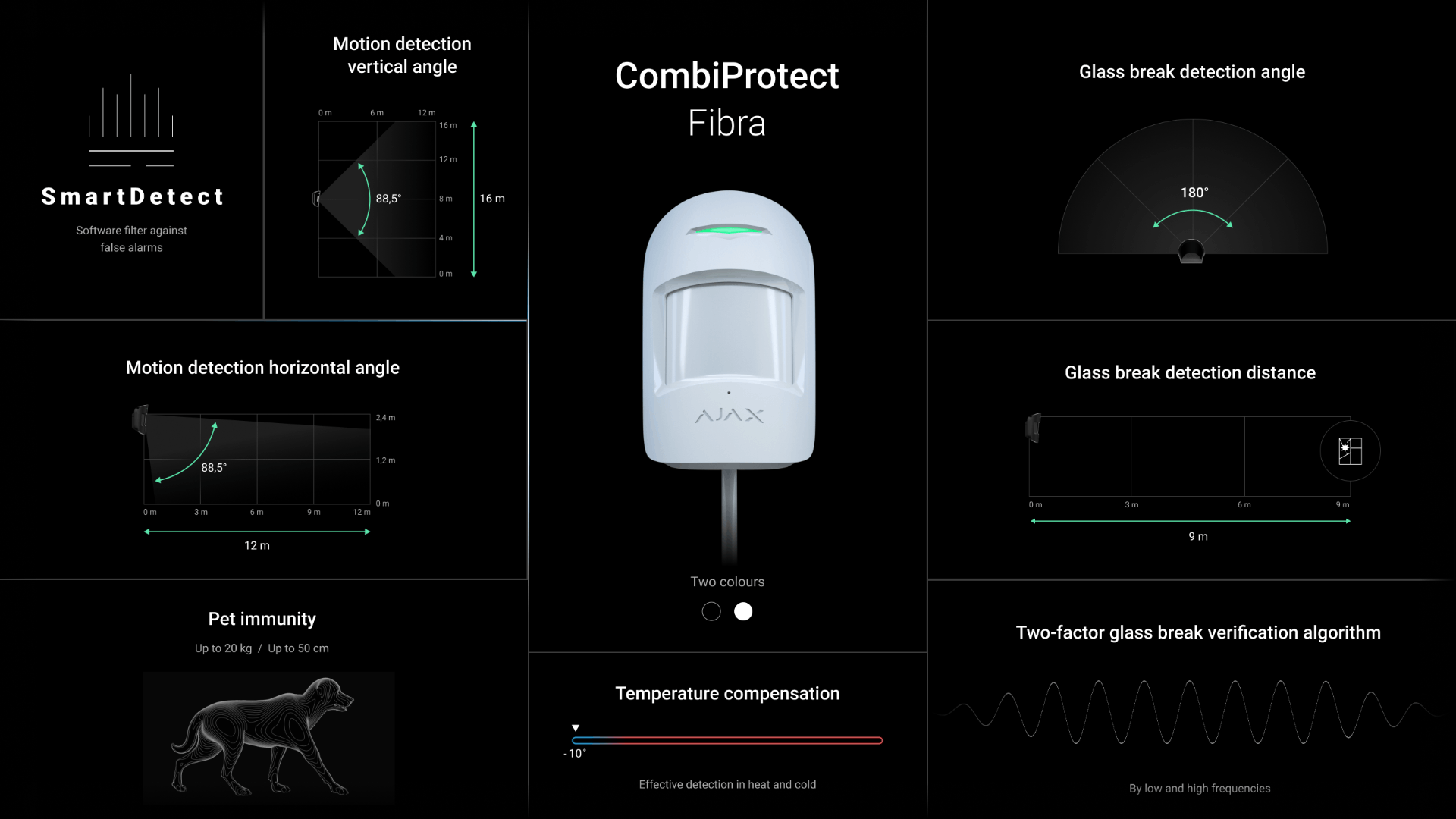

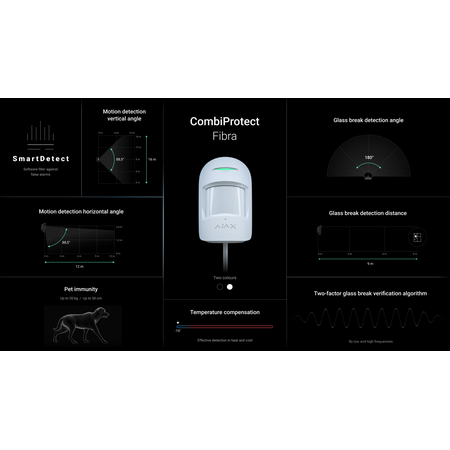

- Motion detection distance: up to 12 m
- Motion detection angle: horizontal 88.5°
- Motion detection speed: 0.3 to 2 m/s
- PIR sensitivity: 3 levels
- Pet immunity: weight up to 20 kg, height up to 50 cm
- False alarm prevention PIR: SmartDetect software algorithm
- Temperature compensation: effective from −10 °C to +40 °C
- Glass break detection distance: 0.3 to 9 m, horizontal 180°
- Glass break sensitivity: 3 levels
- False alarm prevention glass break: DualTone algorithm
- Minimum glass size: 400 × 400 mm
- Glass types and thickness: standard pane 4 mm, insulated glass 4 mm, tempered glass 6 mm
- Power supply: Fibra line power supply 5−30 V⎓, up to 26 mW
- Line connection: 4-core cable
- Fibra line length: up to 2,000 meters using U/UTP cat.5 twisted pair
- Operating temperature range: −10 °C to +40 °C
- Operating humidity: up to 75%
- Protection class: IP50
- Dimensions (H x L x W): 110mm x 50mm x 65mm
- Weight: 0.092 kg
Key Features
- Dual protection with PIR motion sensor and glass break detection
- Software algorithms to prevent false alarms
- Remote configuration of sensors and sensitivity via app
- PIR sensor by Excelitas Technologies for high accuracy
- Enhanced glass break detection with DualTone digital algorithm
- Three sensitivity levels for both motion and glass break detection
- Secure two-way communication with Fibra proprietary protocol
- Supports connection of multiple device types on one Fibra line
Professional Installation Requirements
- Professional installation by a qualified security system technician is recommended to ensure proper wiring and configuration within the Ajax Fibra system.
Applications
- Residential security systems
- Commercial property intrusion detection
- Office and retail security monitoring
- Integration with Ajax Fibra wired security systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Wired technology reduces battery waste compared to wireless devices
- Long device lifespan reduces electronic waste
- Energy-efficient operation with low power consumption
Warranty Information
24 months warranty.
Available Now
AJAX COMBIPROTECT FIBRA WHITE 2YR is available for immediate purchase, ideal for enhancing security in residential and commercial properties with wired Ajax Fibra systems.
