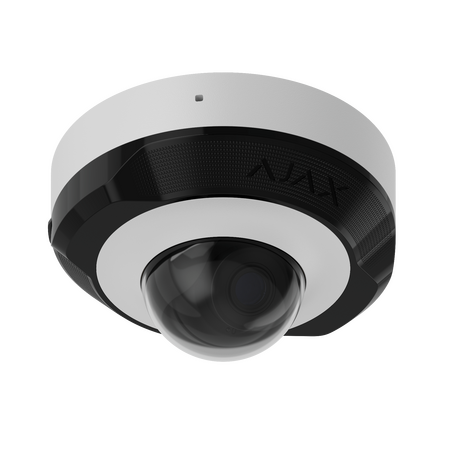

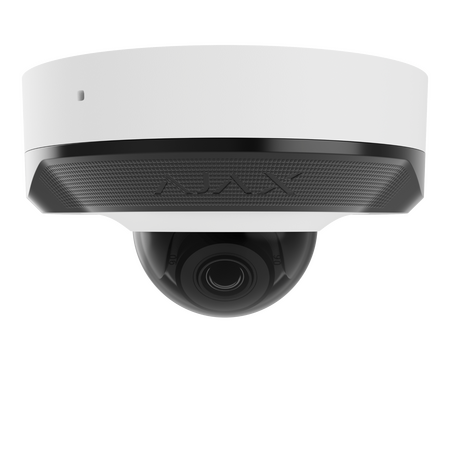

AJAX Dome Camera Mini | 5 MP Resolution | 100° Viewing Angle | AI Motion Detection | by AJAX
AJAX Dome Camera Mini offers stunning 5 MP resolution and a wide viewing angle of 100° to 110°, making it perfect for both residential and commercial security monitoring. With AI-based motion detection for humans, pets, and vehicles, plus IP65 weather resistance, this camera ensures reliable performance in any environment. Enjoy peace of mind with advanced features like JetSparrow encrypted video protocol and Smart IR illumination up to 15 meters.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX Dome Camera Mini | 5 MP Resolution | 100° Viewing Angle | AI Motion Detection | by AJAX
Brand: AJAX
SKU: 76018.214.WH1
Alternatively Known As: AJAX Dome Camera Mini, AJAX 5MP Dome Camera, AJAX Mini Security Camera, AJAX DomeCam White
Technical Specifications
- Resolution: up to 2880 × 1620 px
- Frame Rate: up to 25 FPS
- Viewing Angle: 100° to 110°

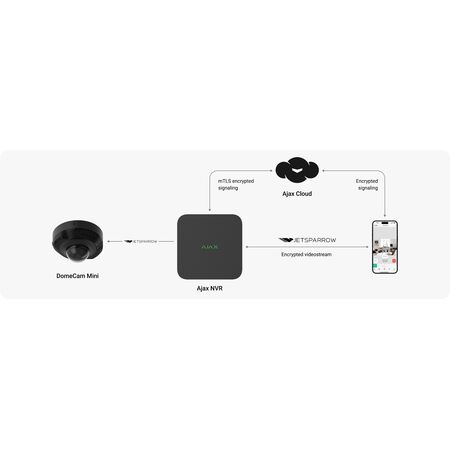

- Video Protocol: JetSparrow encrypted peer-to-peer
- Storage: microSD up to 256 GB (not included)
- Video Codecs: H.265, H.264
- Dynamic Range: True WDR
- Ethernet Speed: up to 100 Mbps
- Motion Detection: AI-based for humans, pets, vehicles
- Smart IR Illumination: up to 15 m
- Microphone: Yes, with configurable settings
- Audio Codecs: G711-ULAW, G711-ALAW, G726, G722
- Power: 12 V⎓ ± 20%, 1 A
- Ethernet Port: PoE Standard 802.3at
- Operating Temperature: −30 °C to +60 °C
- Operating Humidity: up to 90%
- Protection Class: IP65
- Dimensions (H x L x W): 60mm x 113mm x 60mm
- Weight: 0.36 kg
Key Features
- Resolution up to 2880 × 1620 px for clear video quality
- Frame rate up to 25 FPS
- Wide viewing angle from 100° to 110°
- JetSparrow fast and encrypted peer-to-peer video protocol
- Supports microSD storage up to 256 GB (memory card not included)
- Video codecs H.265 and H.264 supported
- True WDR for dynamic range enhancement
- Ethernet connectivity up to 100 Mbps with PoE Standard 802.3at
- AI-based motion detection for humans, pets, and vehicles
- Smart IR illumination up to 15 meters
- Built-in microphone with configurable audio recording
- Audio codecs G711-ULAW, G711-ALAW, G726, G722 supported
- IP65 protection class for weather resistance
- Operating temperature range from −30 °C to +60 °C
- Operating humidity up to 90%
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper setup, network configuration, and compliance with safety standards.
Applications
- Residential security monitoring
- Commercial property surveillance
- Outdoor and indoor video monitoring
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient PoE power supply reduces overall power consumption.
- Durable IP65 rated housing minimizes environmental impact by extending product lifespan.
Warranty Information
24 months warranty provided by the manufacturer.
Available Now
The AJAX DOMECAM MINI (5 MP/2.8 MM) WHITE is available for immediate purchase, ideal for residential and commercial security applications.
